Description
Description:
1. Input Voltage: 0.9-5V; output voltage: 5V
,
,
,
,
1. Input Voltage: 0.9-5V; output voltage: 5V
2. Maximum Output Current: 480mA
3. Starting Up Voltage: 0.8V; output current: 7mA
4. Input Voltage: 1-1.5V; output voltage 5V, output current: 40-100mA
5. Input Voltage: 1.5-2V; output voltage 5V, output current: 100-150mA
6. Input Voltage: 2-3V; output voltage 5V, output current: 150-380mA
7. Input Voltage: >3V; output voltage 5V, output current: 380-480mA
8. Operating Frequency: 150KHz
9. Typical Conversion Efficiency: 85%
10. Pin Space: 2.54mm
11. Size: 11 x 10.5 x 7.5mm
Notice:
1. Input voltage should be no more than rated voltage, or the module will be burnt.
2. Input power should surpass output power, or output voltage will be less than rated voltage.
3. Output load should be no more than rated load, or output voltage will be less than rated voltage.
Package included:

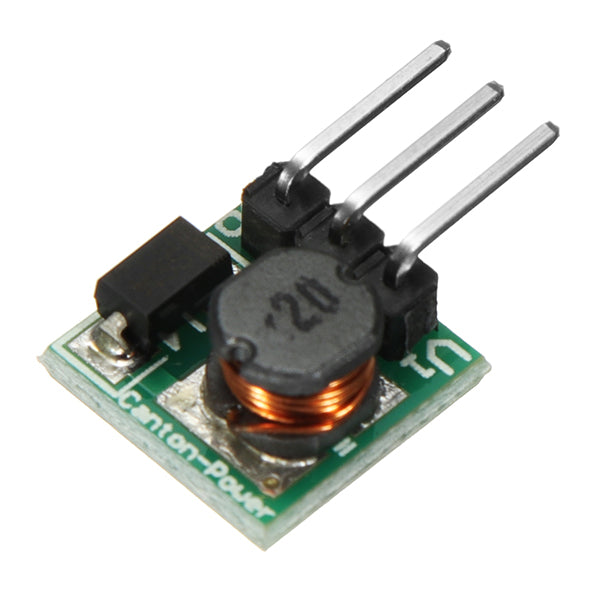

1 x Step-up power module
,,,,
