Description
File download: Click to open

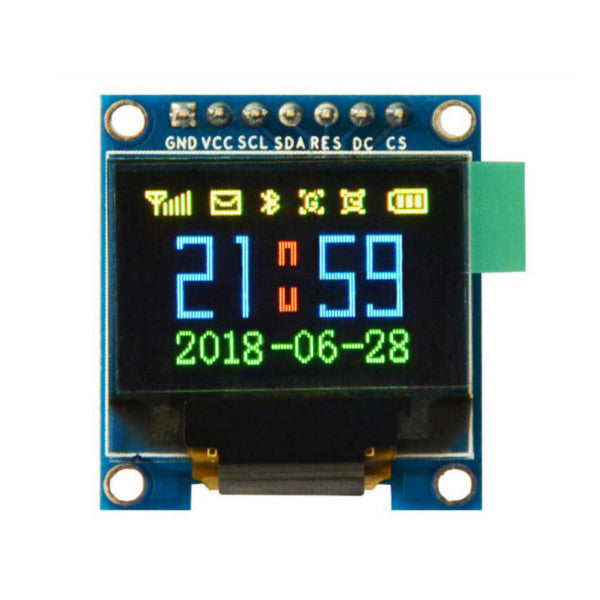

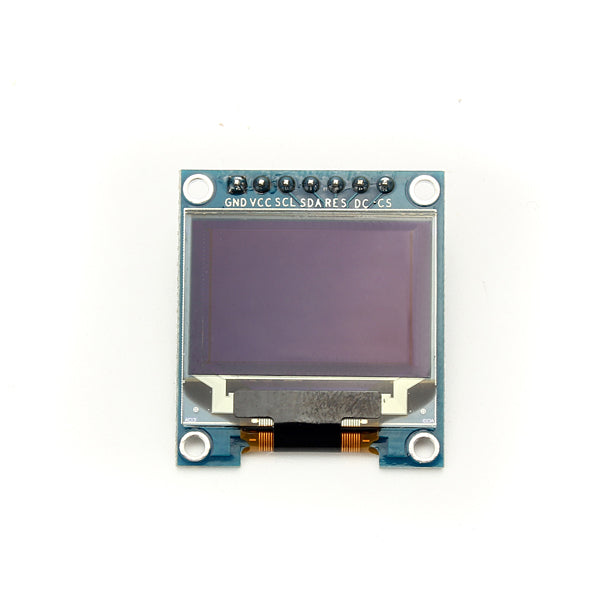

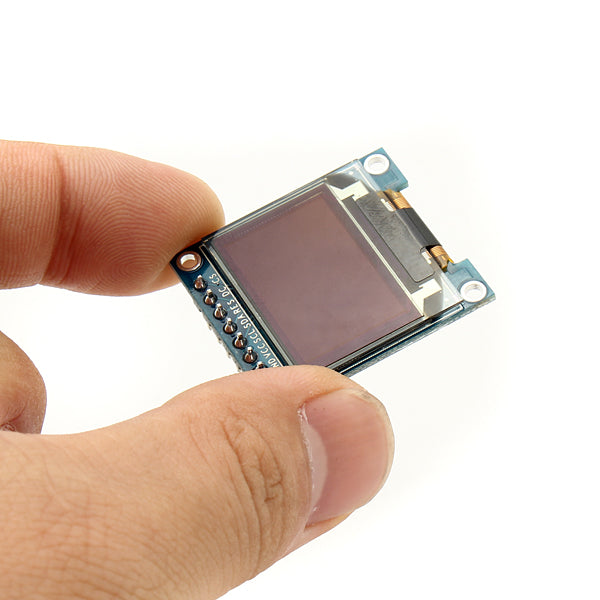

Feature:
Size: 0.95 inch
Resolution: 96*64
Drive IC: SSD1331
Color: 65536 color
Interface: SPI interface
PIN NO.: 7Pin
Voltage: 3.3V - 5V
Pin description:
GND: Power ground
VCC: 2.8-5.5V power supply
D0: CLK clock
D1: MOSI data
RST: Reset
DC: Data / command
CS: Chip-select signal
Package includes:
1 x 0.95 Inch 7pin OLED
,
,
