10/20/30/40/50A 12V/24V Light &Time Control Auto Adapte Solar Charge Controller Dual USB Port LED Indicator PWM Solar Controller


Isaiah 55:8-9 John 3:16 Philippians 4:19
Current: Current 40A
Price:
Sale priceR 429.99 Regular priceR 560.00
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

This solar panel charge controller is perfect for anyone with a lead acid battery who wants to get the most out of their solar panels.

With four different current settings, it can be used with solar panels of up to 240 watts.

It also has a USB output for charging devices, and a self-consumption of less than 10mA.

Plus, it has all the safety features you could want, including short-circuit protection, open-circuit protection, reverse protection, and overload protection.

So why wait? Get this solar panel charge controller today and start saving money on your energy bills!







More Information:


Features:
1.Build-in industrial micro controller.
2.Fully 4-stage PWM charge management.
3.One-key setting,digital display, auto memory function.
4.Dual mosfet Reverse current protections, low heat productions.
5.Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.

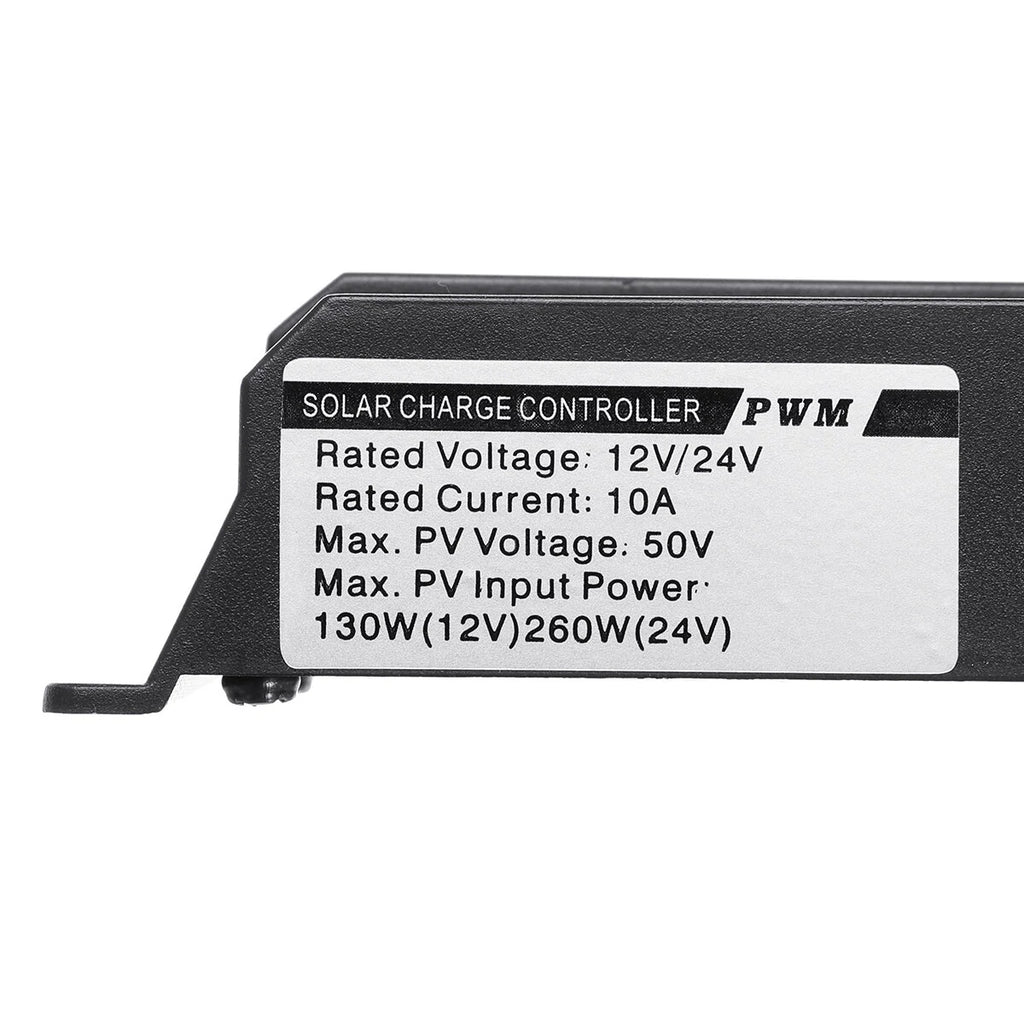

Specifications:

Model: PWM
Buck charge: 28.8V
Float charge: 27.4V
USB output: 5V/3A
Self-consume: <10mA
Discharge stop: 21.4V
Voltage: DC 12V/24V
Max solar input: <50V
Current: 10A/20A/30A/40A
Rated working current: ≤20A
Discharge reconnect: 25.2V
Working temperature: -35℃~60℃
Output voltage: 12V/24V Automatically distinguish voltage

Feature:

With Timer and light sensor, it could work for solar light system(Only For off-Grid PV Solar System):
-For 10A 12V Pv System: 120W Solar Panel, 12V Lead-acid Battery, 21V for Max input Voltage.
-For 10A 24V Pv System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage.

Safety Instructions:
  1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
  2.The battery cable should be as short as possible to minimize loss.
  3.The regulator is only suitable for lead acid batteries: OPEN, AGM,  GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
  4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

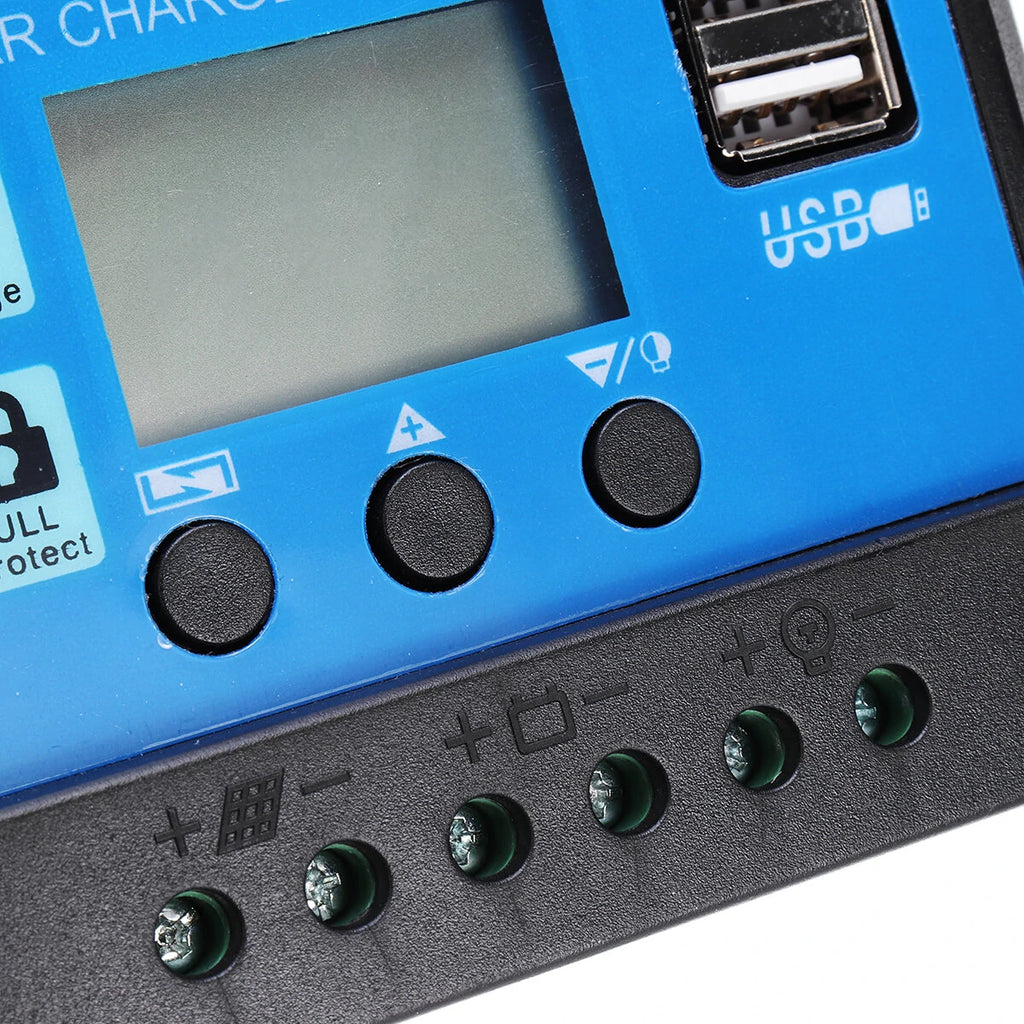

System Connection:

    1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
    2.Connect the photovoltaic module to the regulator - plus and minus.
    3. Connect the consumer to the charge regulator - plus and minus.

Package includes:

   1X Solar panels Battery Charge Controller(10/20/30/40A)

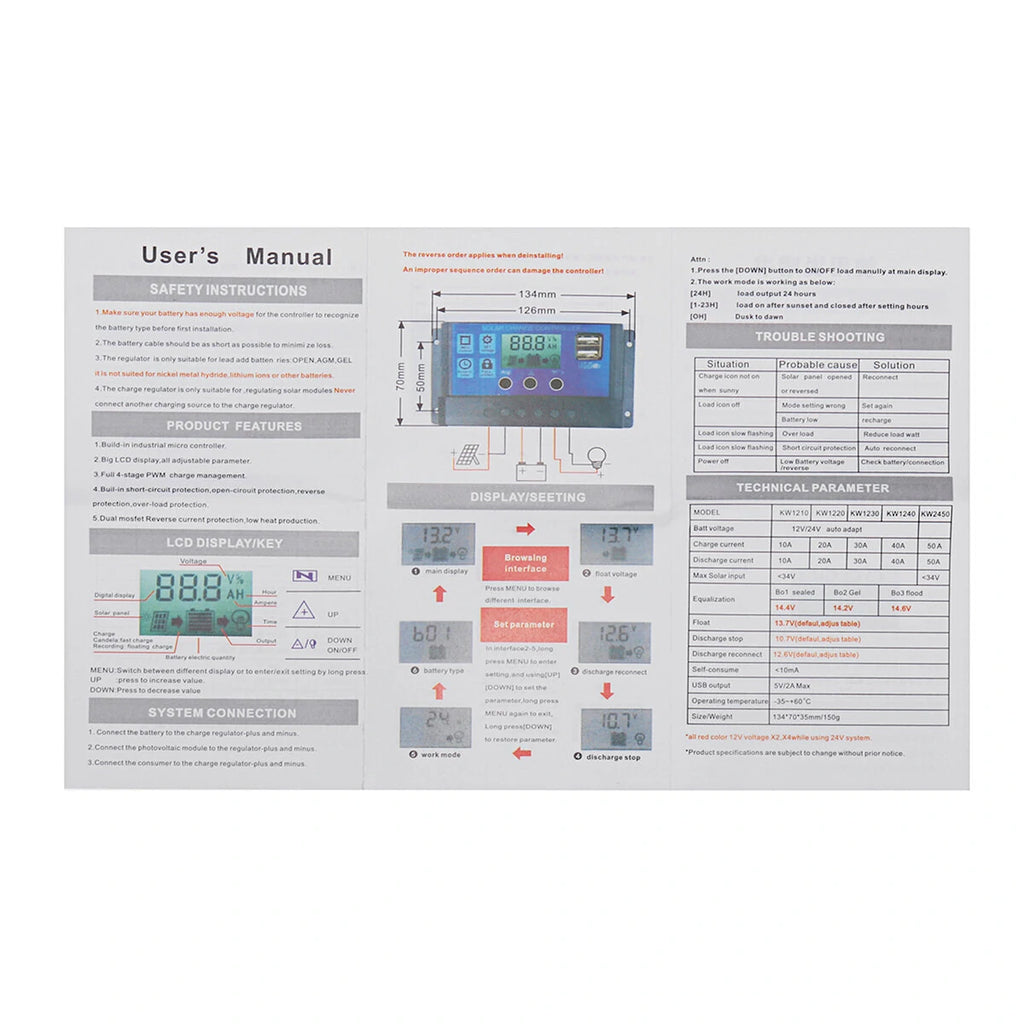

   1X User Manual
