Description
| Specification | |
| Brand | BEST |
| Type | 7 Pin |
| Wire range | 20-12AWG |
| Voltage rating | 300V |
| Current rating | 15A |
| Withstanding Voltage | 2,000V |
| Stripping length | 9.0mm |
| Material | |
| Insulator(housing) | PA66, UL94V-0 |
| Pin Header | Brass Tin Plated |
| Contact | Stainless Steel |
| Operating | -40°C to +105°C |
| Max soldering | +250°C For 5 seconds |
Features:
- The shell is nylon PA66, flame retardant 94V-0 grade, in accordance with European ROHS standards;
- It has elasticity, rigidity and resistance to the corrosion of most chemical reagents, and has a strong resistance to leakage current breakdown. It allows continuous working at 105°C and maintains stability. The short-term high temperature limit is 165°C, and the low temperature limit is -35°C;
- Conductor material - high precision imported copper (C5210), electroplated tin,
- Wire terminals are widely used in power supply, transformer, electronic appliances, communication field;
Operation method:
Press the button and insert the single or multi-strand wire (multi-strand wire needs soldering tin) with a length of 8-9mm into the hole completely.
Disassembly method:
Press the button and pull it to remove the wire. There is a test hole above the hole for testing.
Package Included:

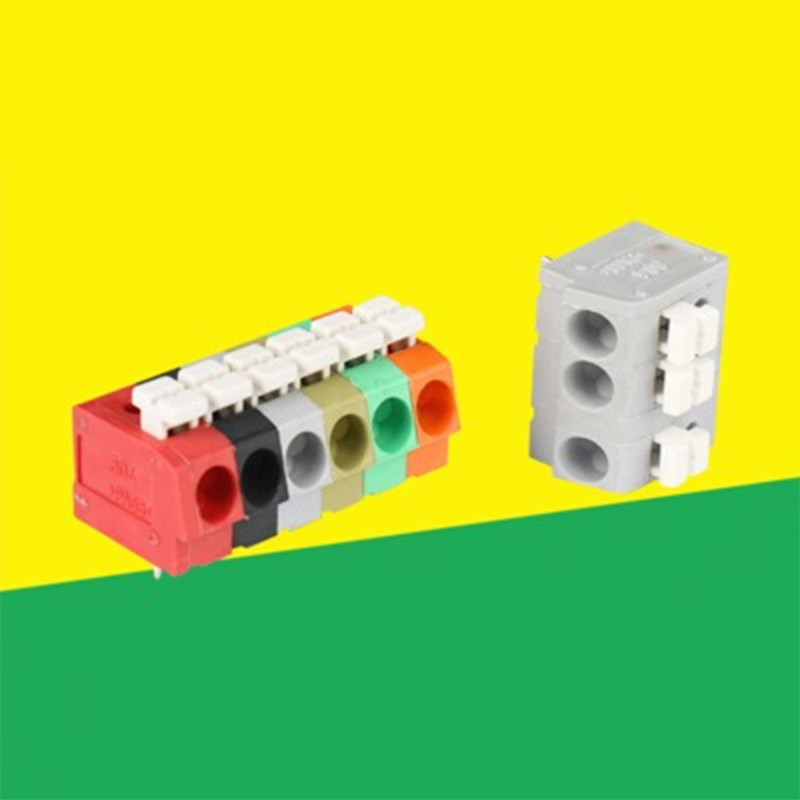

10PCS 7 Pin Wire Connectors
