Description
Specification:

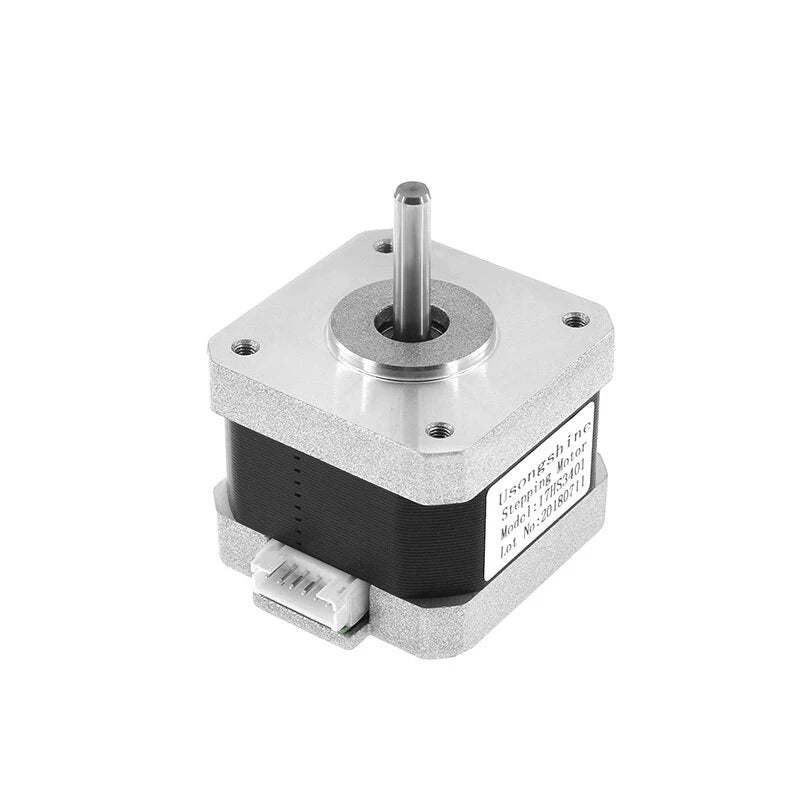

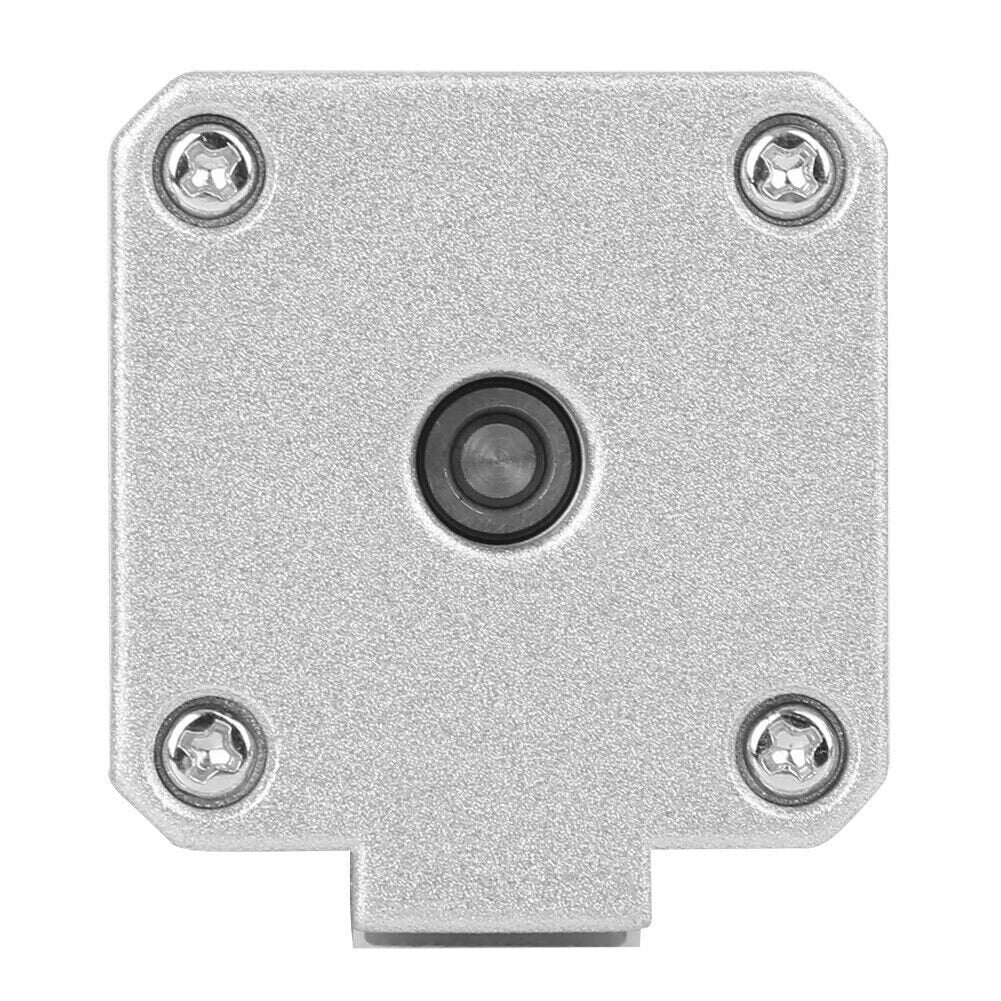

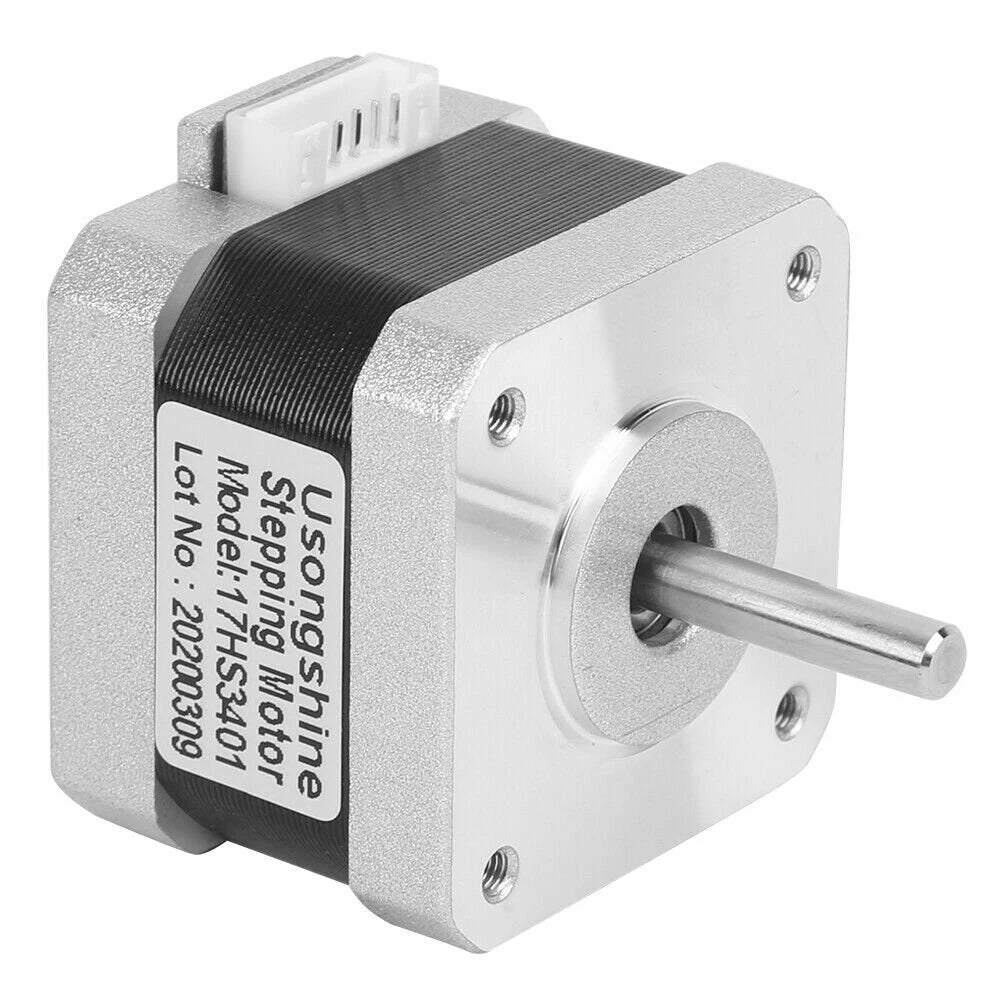

| Model | 17HS3401 |
| Phase | 2 |
| Step Angle | 1.8° |
| Motor Size | 42 x 34mm |
| Shaft | 'D' shaft 21 x –§5mm |
| Outlet way | '4' plug line |

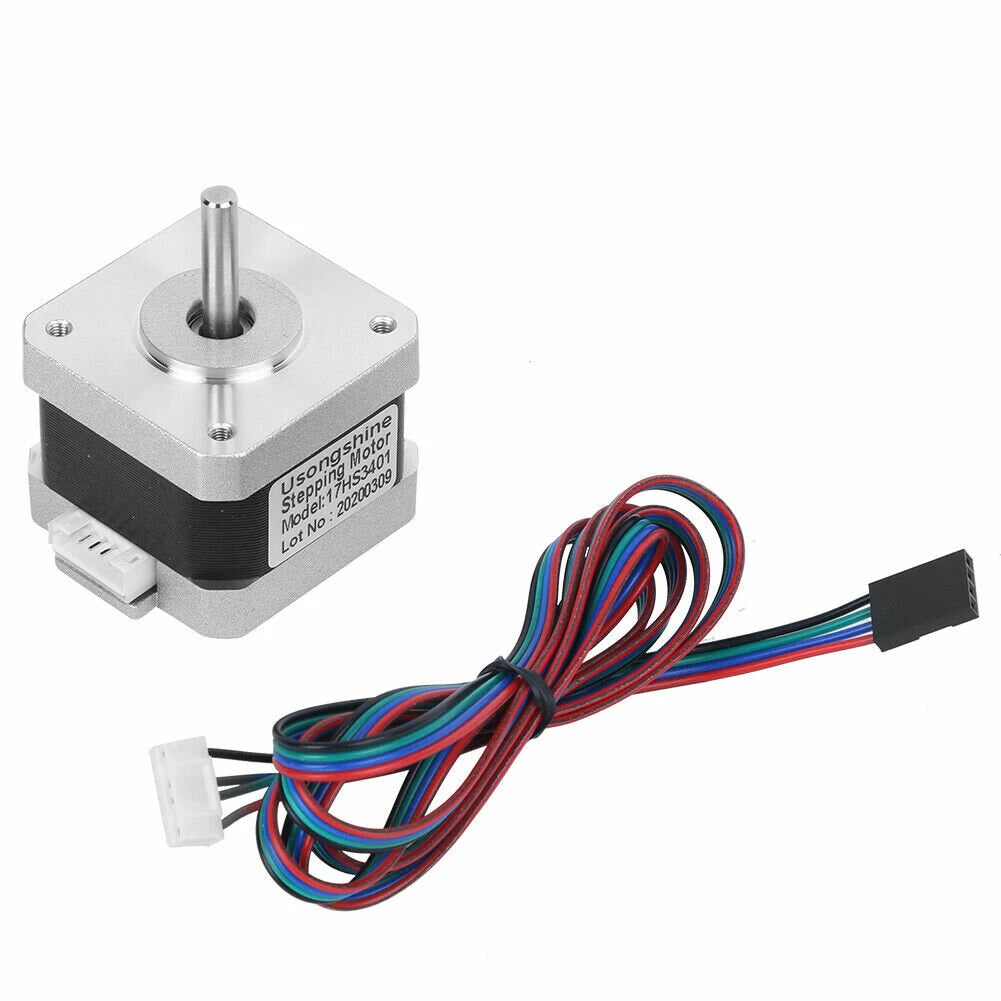

| Motor leads | Dupont line(1M) |
| Adapter drive | Two-phase step drive |
| Scope | 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment,  Non-standard Equipment, Placement machine ect. |
Electrical Specifications:
| Model No. | Step Angle |
Motor Length |
Rated  Current |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
Detent Torque |
Inertia Of Rotor |
  Lead  |
| ( ¬∞) | (L)mm | (A) | (Œ©) | (mH) | (N.cm)  | (N.cm)  | (G. cm¬≤) | (No.) | |
| 17HS3401 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 28 | 1.6 | 34 | 4 |
General Specification:
| Precision angle step | ±5% (full step, no charge) |
| Resistance accuracy | ±10% |
| Precision inductance | ±20% |
| Temperature rise | 80deg Max (rated current, 2 phase on) |
| Ambient temperature | ( - 20°)-(+ 50°) |
| Insulation resistance | 100MΩ Min, 500VDC |
| Insultion Force | 500VAC for a minute |
Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.

1 X 17HS3401 Stepper Motor
