Description

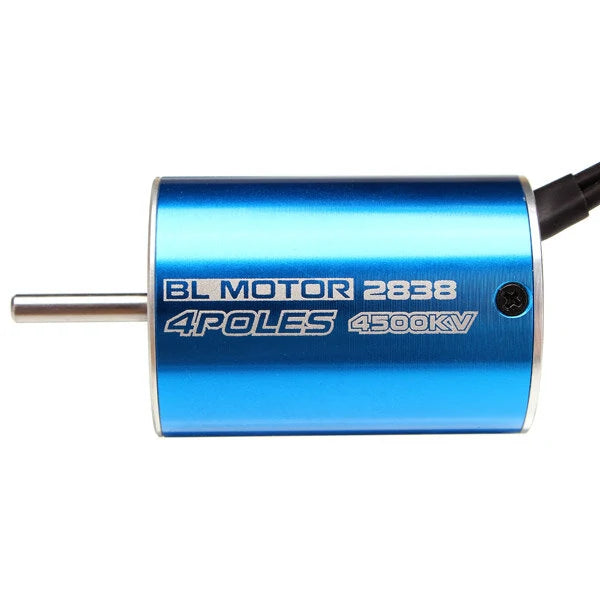

The 2838 Sensorless Waterproof Motor is a great choice for anyone looking for a high-quality, durable, and reliable motor for their 1/12 or 1/14 RC car.
This motor features a 4-pole 12-slot design for maximum torque and power, while the CNC-machined 6061 T6 billet aluminum heatsink ensures efficient heat dissipation.
The high purity copper windings maximize efficiency and the high RPM ABEC 5 oversized bearings provide smooth operation and long-lasting durability.
The universal fit and multi-mounting system make this motor compatible with all 1/12, 1/14, 1/16, and 1/18 brushless cars.
More Information:
2838 Sensorless Waterproof Motor 3600/4500KV 35A ESC For 1/12 1/14 Cars
Description:
Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/12, 1/14, 1/16, 1/18 brushless cars; multi-mounting system for M2.5 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM
Motor Specification:
ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card
ESC Specifications:
Package Included:
1 X Motor
1 X ESC
1 X Instruction
This motor features a 4-pole 12-slot design for maximum torque and power, while the CNC-machined 6061 T6 billet aluminum heatsink ensures efficient heat dissipation.
The high purity copper windings maximize efficiency and the high RPM ABEC 5 oversized bearings provide smooth operation and long-lasting durability.
The universal fit and multi-mounting system make this motor compatible with all 1/12, 1/14, 1/16, and 1/18 brushless cars.
2838 Sensorless Waterproof Motor 3600/4500KV 35A ESC For 1/12 1/14 Cars
Description:
Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/12, 1/14, 1/16, 1/18 brushless cars; multi-mounting system for M2.5 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM
Motor Specification:
| Product | Watts | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt6) |
Max RPM | Length | Diameters | Weight (g) |
Shaft (mm) |
Length of Extend Shaft | Connector |
| 2838 | 600 | 12V | 50A | 4 | 1.8A | 0.0285 | 4500 | 50000 | 38mm | 28mm | 95 | ￠3.175 | 15mm | 3.5mm gold |
| 2838 | 600 | 14V | 43A | 4 | 1.4A | 0.0415 | 3600 | 50000 | 38mm | 28mm | 95 | ￠3.175 | 15mm | 3.5mm gold |

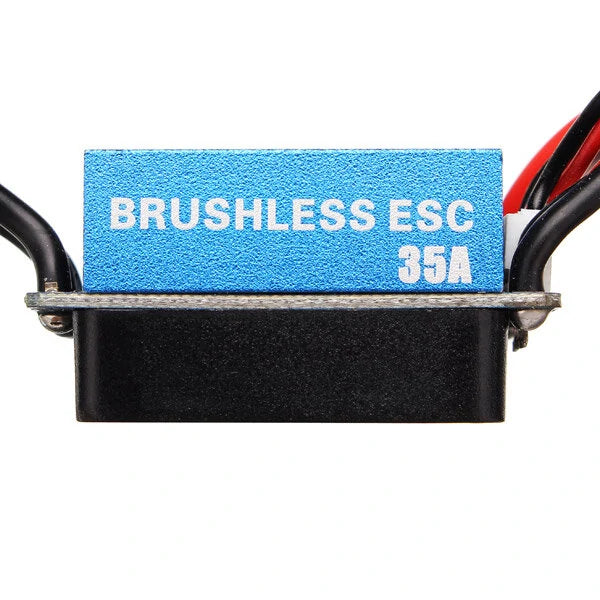

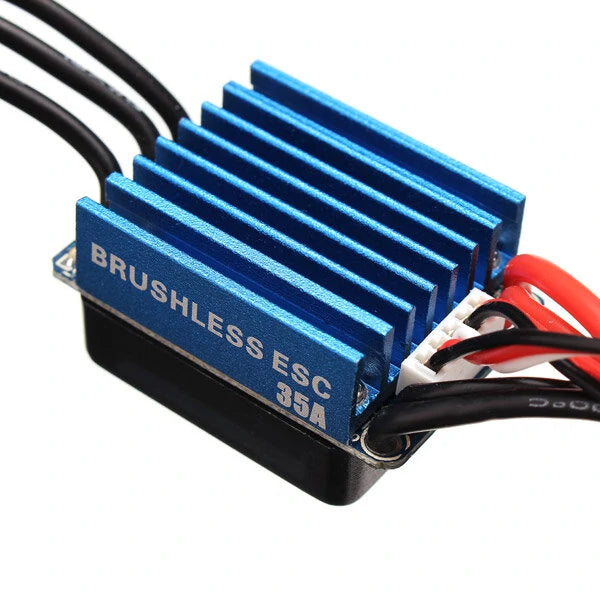

ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card
ESC Specifications:
| Model | 35A |
| Cont. Current/Burst Current | 35A/120A |
| Motor Type | Sensorless Brushless Motor |
| Suitable Car | 1/18, 1/16, 1/14, 1/12 |
| Suitable Brushless Motor | ≥12T |
| Resistance | 0.003ohm |
| Battery | 2-3 cells Lipo 4-9 cells NiMH |
| BEC Output | 5V/2A (analog mode) |
| Dimension | 25*30*18.5mm |
Package Included:
1 X Motor
1 X ESC
1 X Instruction
