Specifications:
Brand: HAKRC

Item Name: 65A 2-8S 4in1 Brushless ESC

Continuous Current: 65A
Peak Current: 75A
Firmware: HAKRC_AT4G_Multi_32.9 Hex
Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input Voltage: 2S-8S Lipo
Current Scale: 160
Size: 40* 43mm (30mm-30mm mounting hole)
Packaging Size: 64*64*35mm
Product Net Weight: 14g
Packaging Weight: 53g

Features:

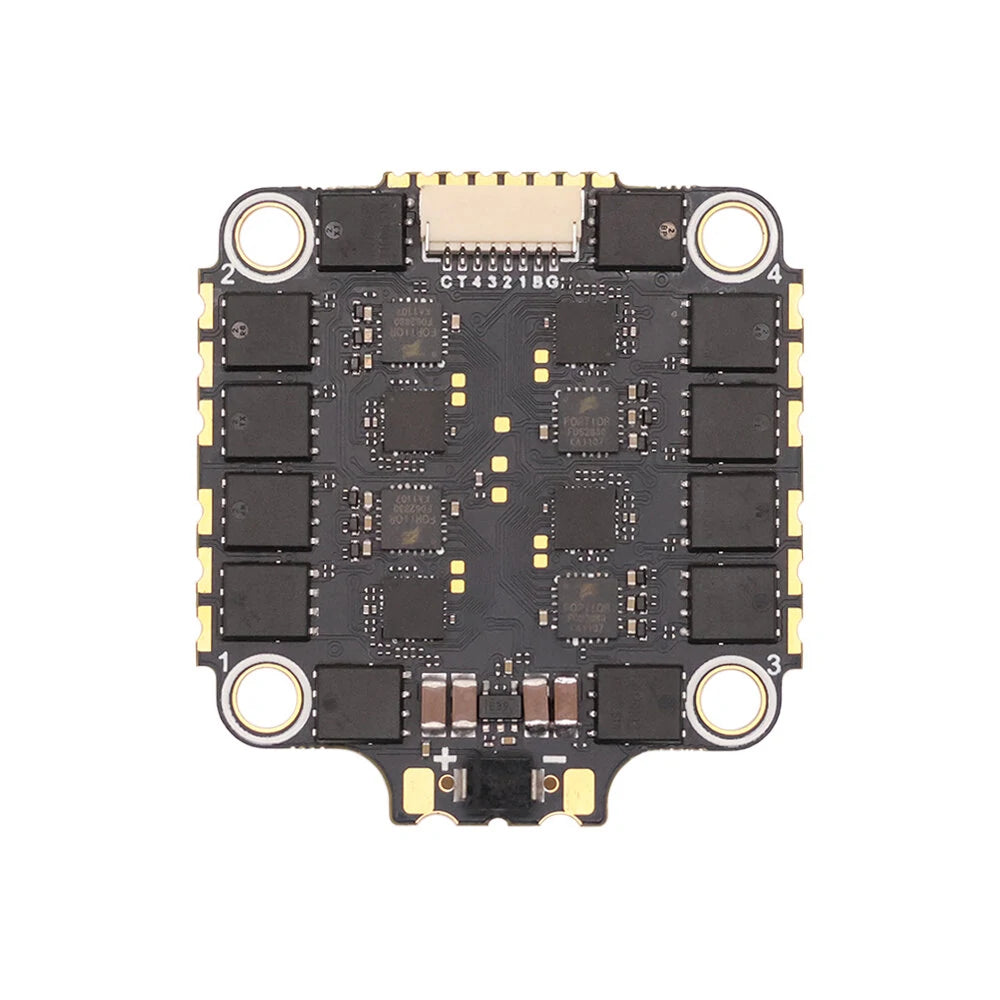

Superior PCB Design: With a high-end 6-layer 2oZ thickened copper skin, the PCB ensures stronger overcurrent capacity and superior heat dissipation, resulting in a smooth operation even in demanding situations.

Imported MOS: Utilizing a durable and robust 40V high endurance imported MOS, the HAKRC 4230 delivers long lifespan and impressive load capacity. Reliable performance is just a plug away.

Industrial Grade LDO: Temperature swings are no match for the HAKRC 4230's industrial-grade LDO. It offers excellent resistance to high temperatures, ensuring unyielding performance.

High-Quality Murata Capacitors: Equipped with premium quality capacitors from Japan, this ESC promises excellent filtering performance, optimizing your flight experience.

Cutting-Edge Hardware: The HAKRC 4230 boasts an AT32F421 main control chip running at a high frequency of up to 128MHz, and an FD6288Q driver, coupled with high-quality hardware, it ensures you get the most out of your flight.

Advanced Technology:Hardware PWM drives motors with less noise and smoother throttle response. Thanks to the Damped Light technology, the regenerative braking functionality ensures more precise control and extends your flight's duration.

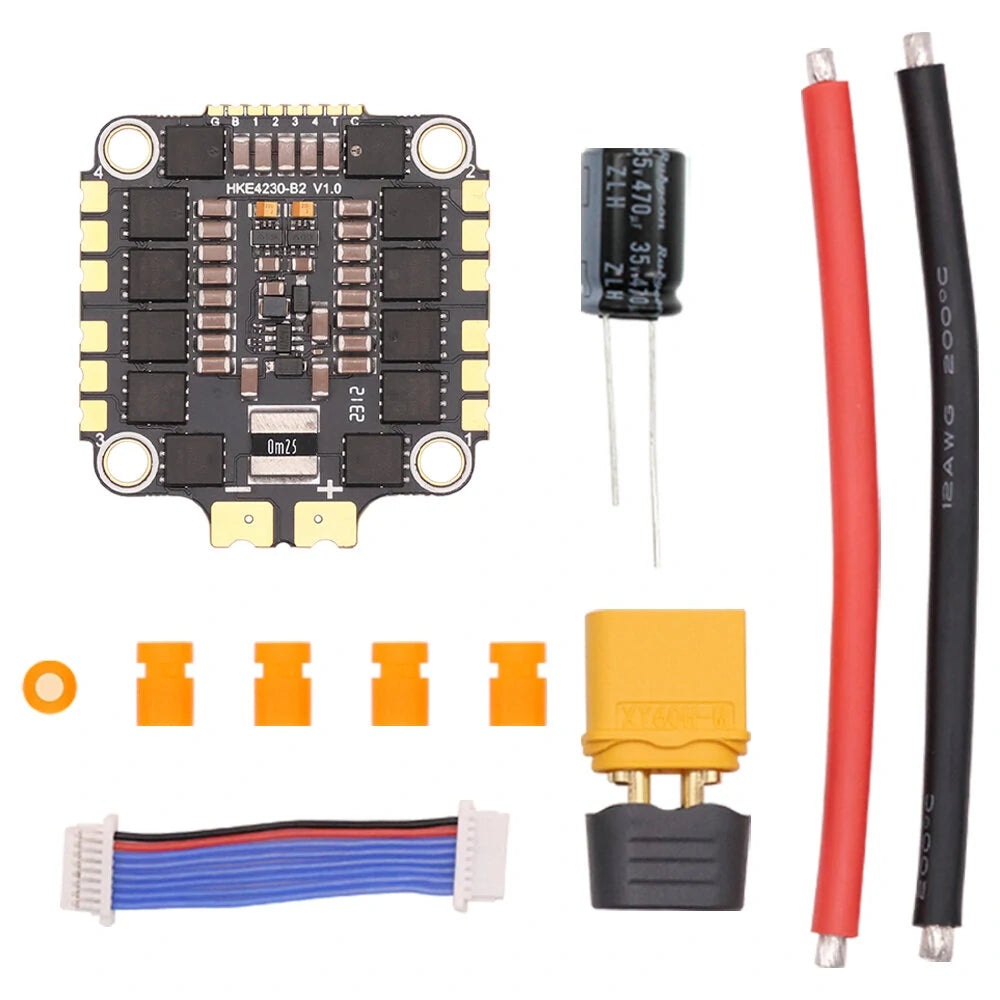

Package Includes:

1x HAKRC 65A ESC

1x Red Cable

1x Black Cable

1x Capacitor

1x Connection Cable

1x Connector Plug

4x Anti-Vibration Ball
