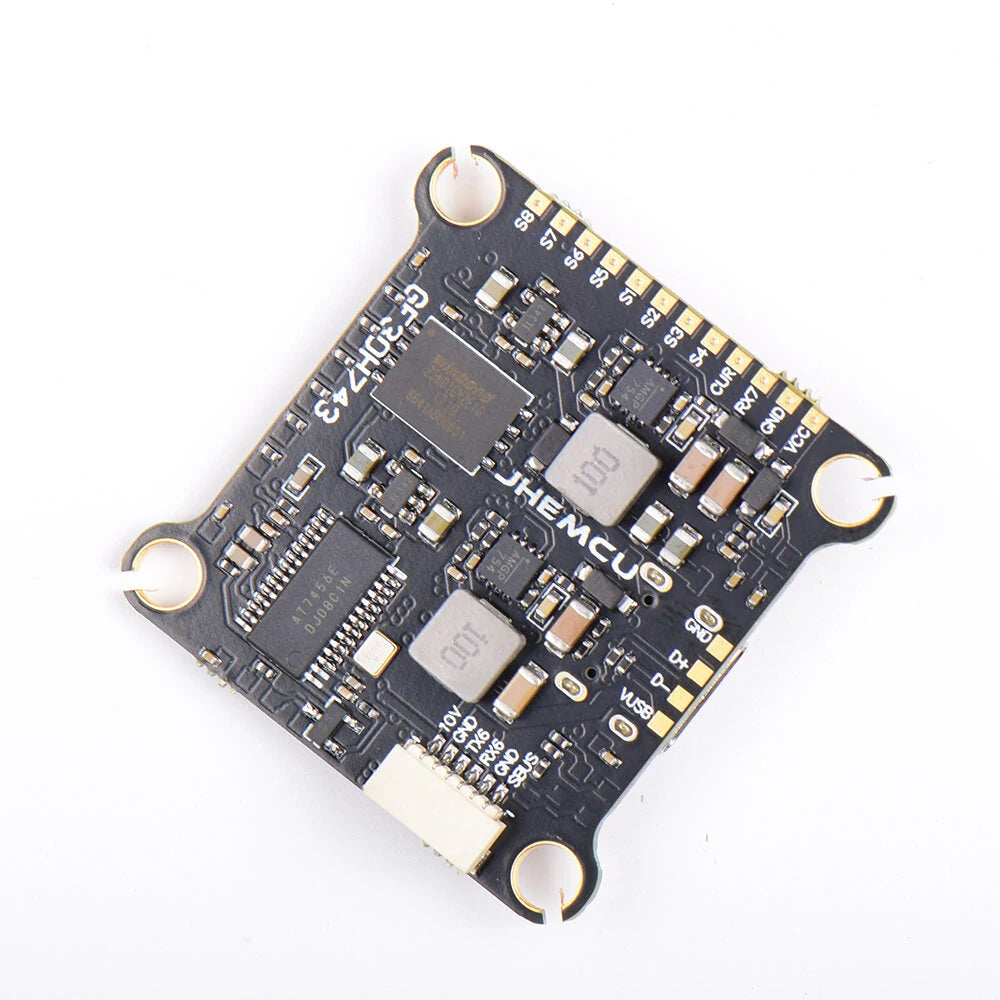

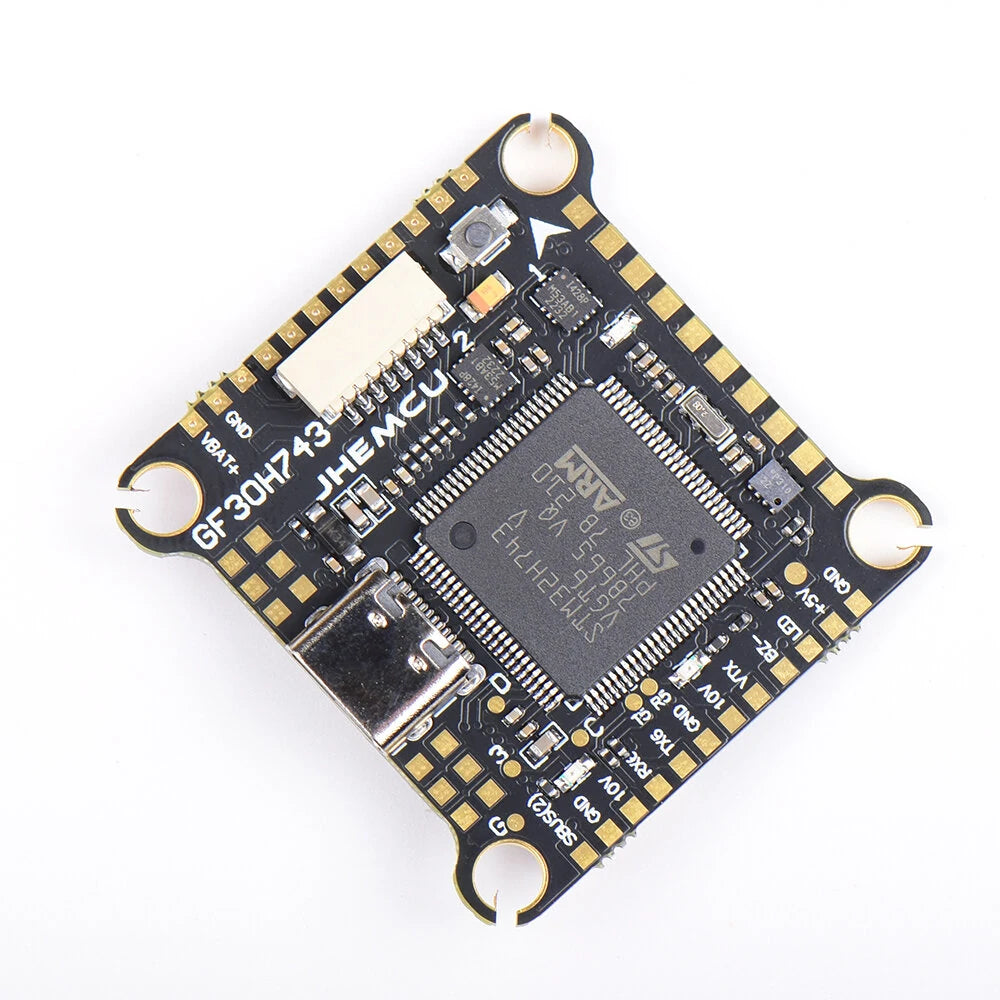

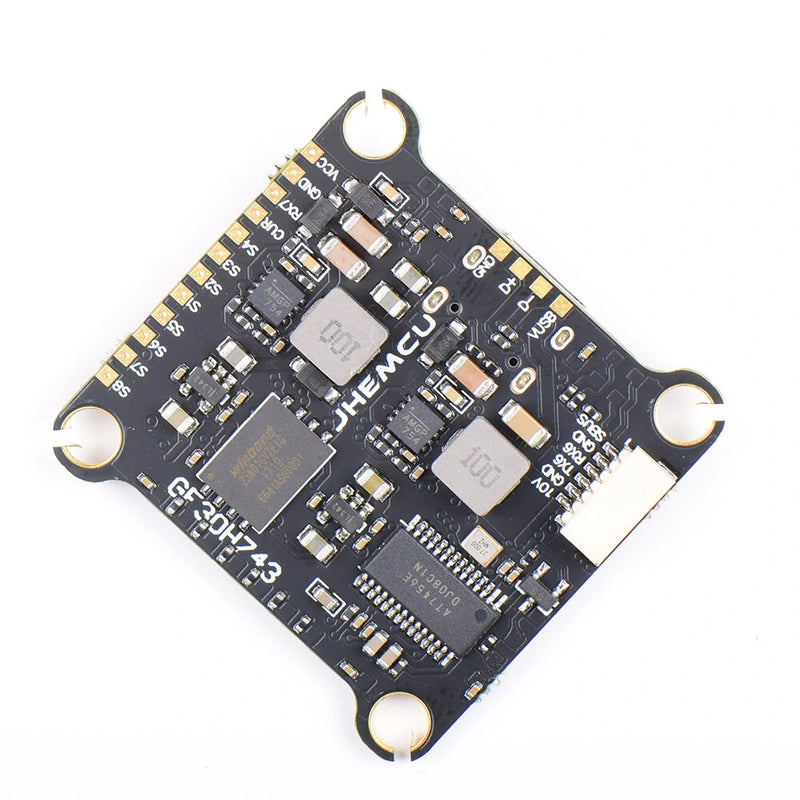

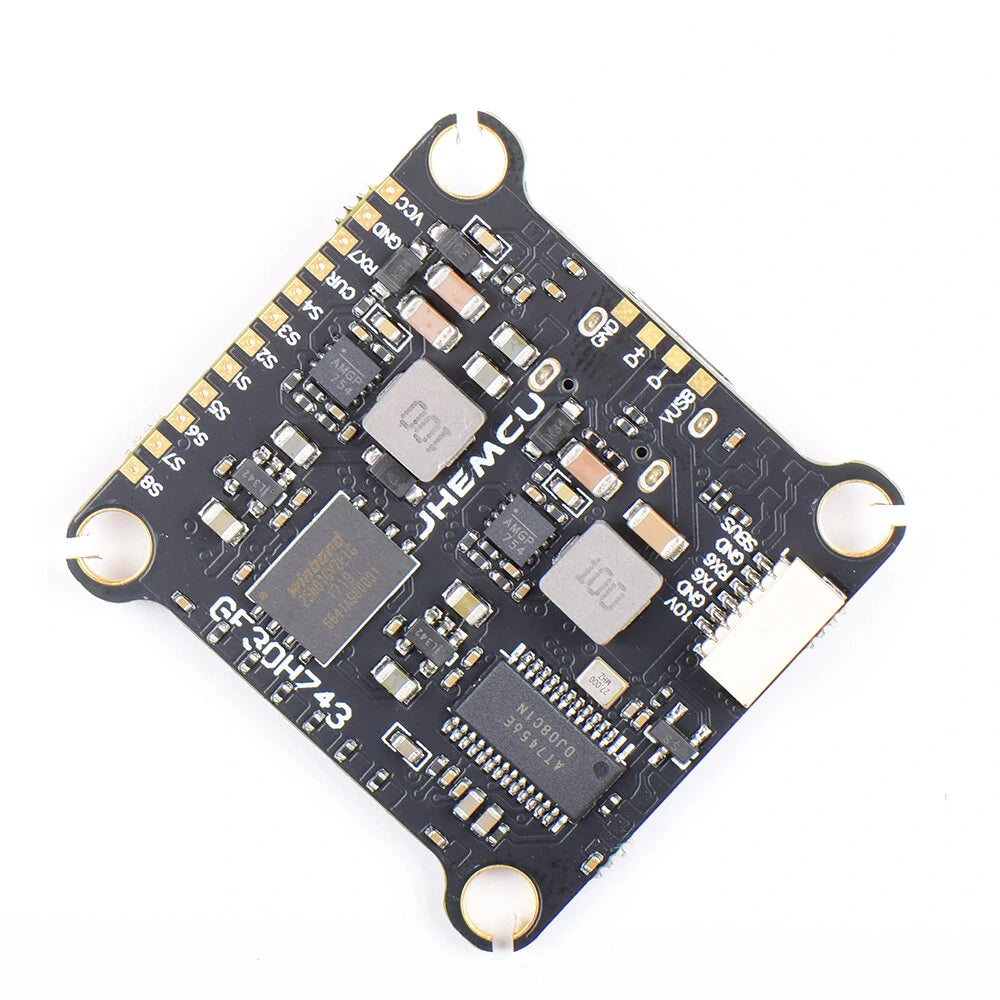

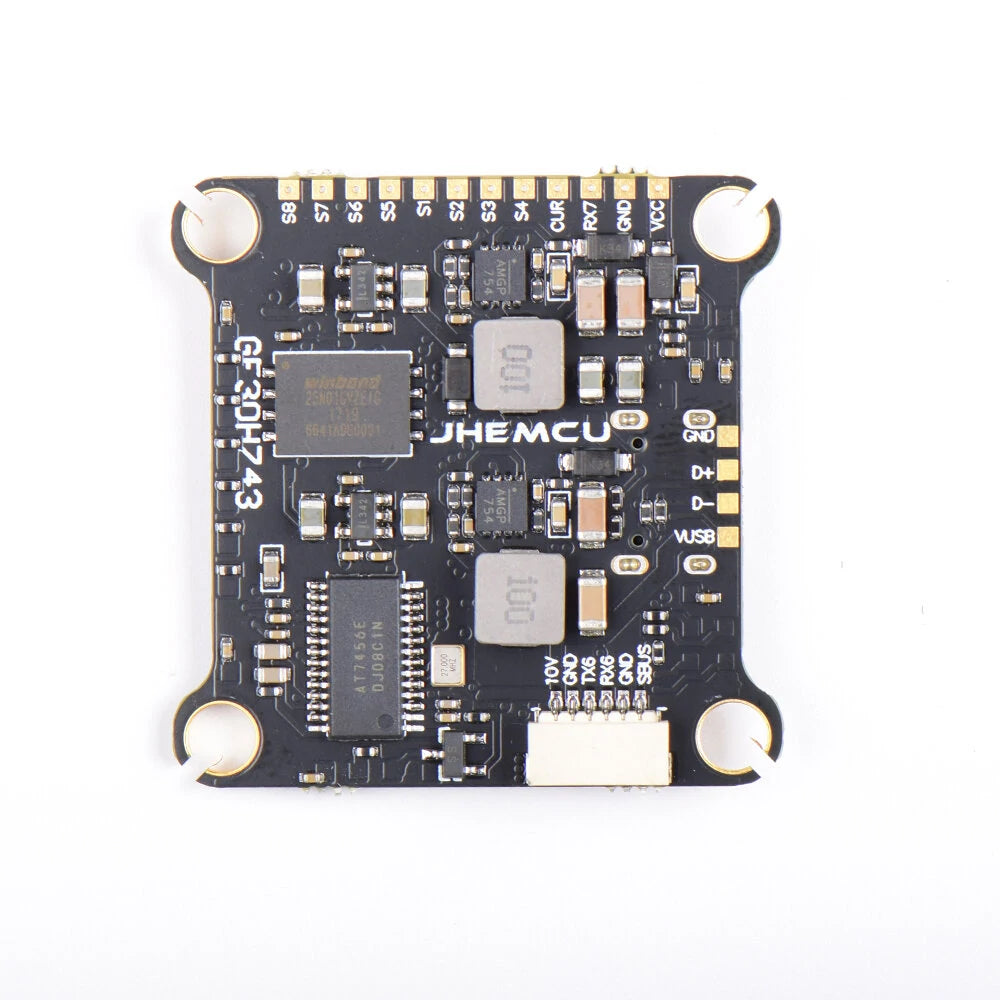

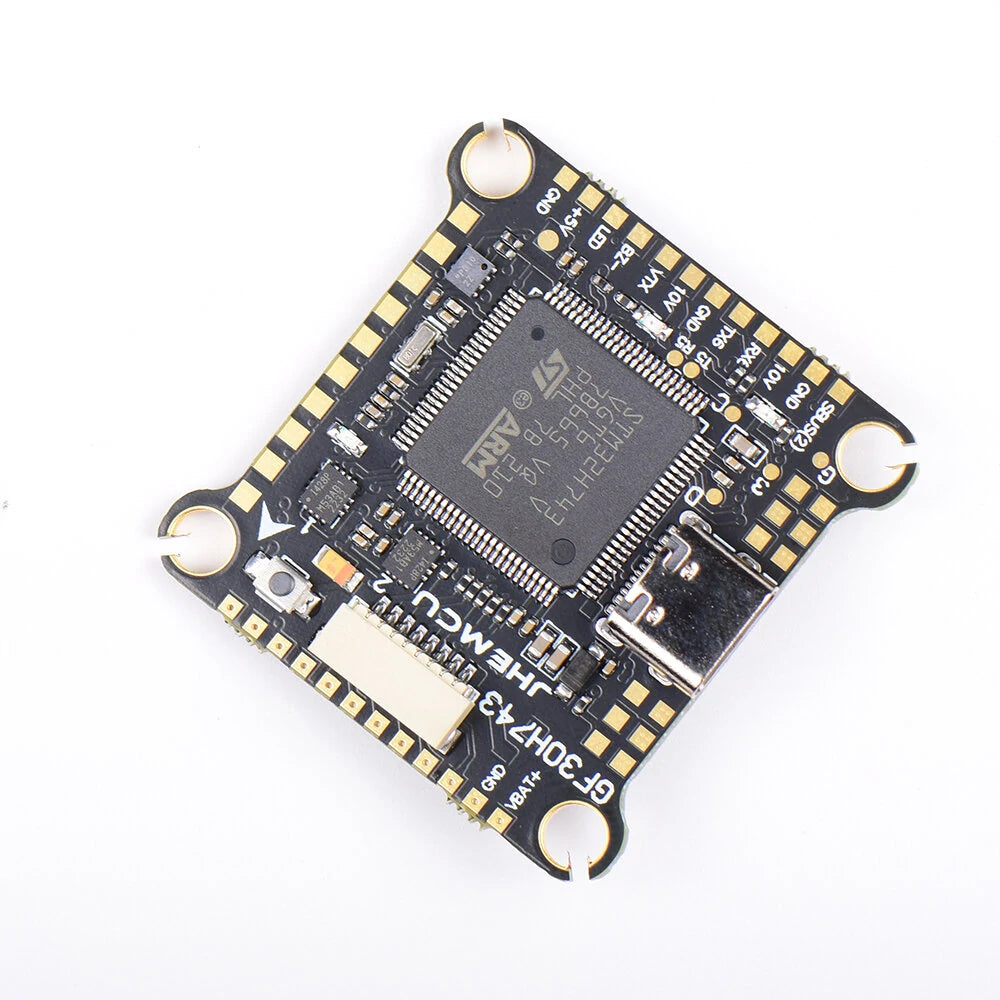

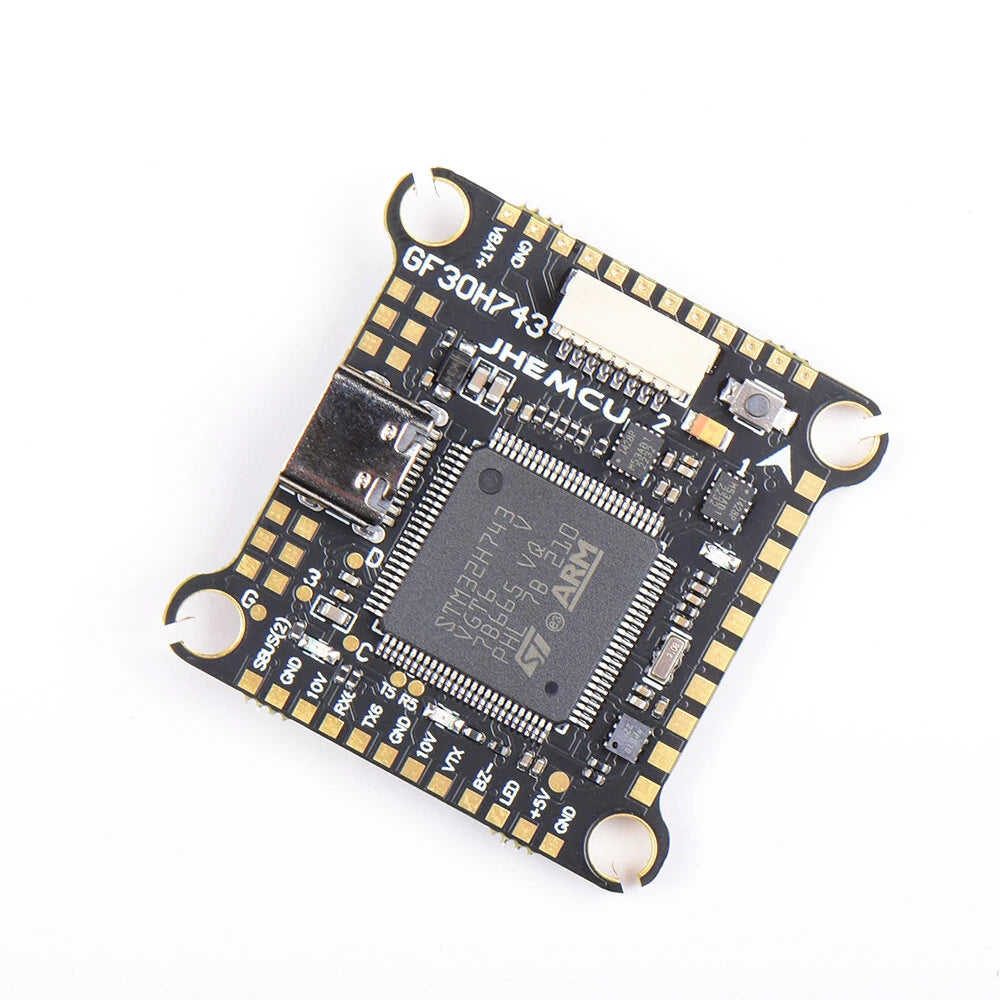

30.5x30.5mm JHEMCU GF30H743 H743 480MHZ Flight Controller DUAL Barometer OSD BlackBox 5V 10V BEC 3-6S Support DJI O3 for RC Drone
Roll over image to zoom in Click on image to zoom
30.5x30.5mm JHEMCU GF30H743 H743 480MHZ Flight Controller DUAL Barometer OSD BlackBox 5V 10V BEC 3-6S Support DJI O3 for RC Drone

30.5x30.5mm JHEMCU GF30H743 H743 480MHZ Flight Controller DUAL Barometer OSD BlackBox 5V 10V BEC 3-6S Support DJI O3 for RC Drone

Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: Model Flight Controller
Price:
R 1,525.00 R 1,840.00
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specifications:
Brand: JHEMCU

Model: GF30H743
Main control: STM32H743(480MHZ)
Gyroscope: ICM-42688-P *2
Barometer: DPS310
OSD chip: AT7456E
Black box: 128MB
LED programming: support
BB ring: support
Input voltage: 3-6S
I2C interface: support
BEC:5V/2.5A
BEC: 10V/2.0A
Camera input: Support
USART: UART1,UART2,UART3,UART4, UART5,UART6,UART7
Receiver: ELRS(CRSF), TBS(CRSF),SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
ESC signal: Dshot150, Dshot300, Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor: YES
DFU button: YES
Flight control firmware: betaflight_4.4.3_JHEH743HD.HEX
Installation hole distance: 30.5*30.5MM*4MM
Maximum overall size: 36*36MM
Weight: 7.9g

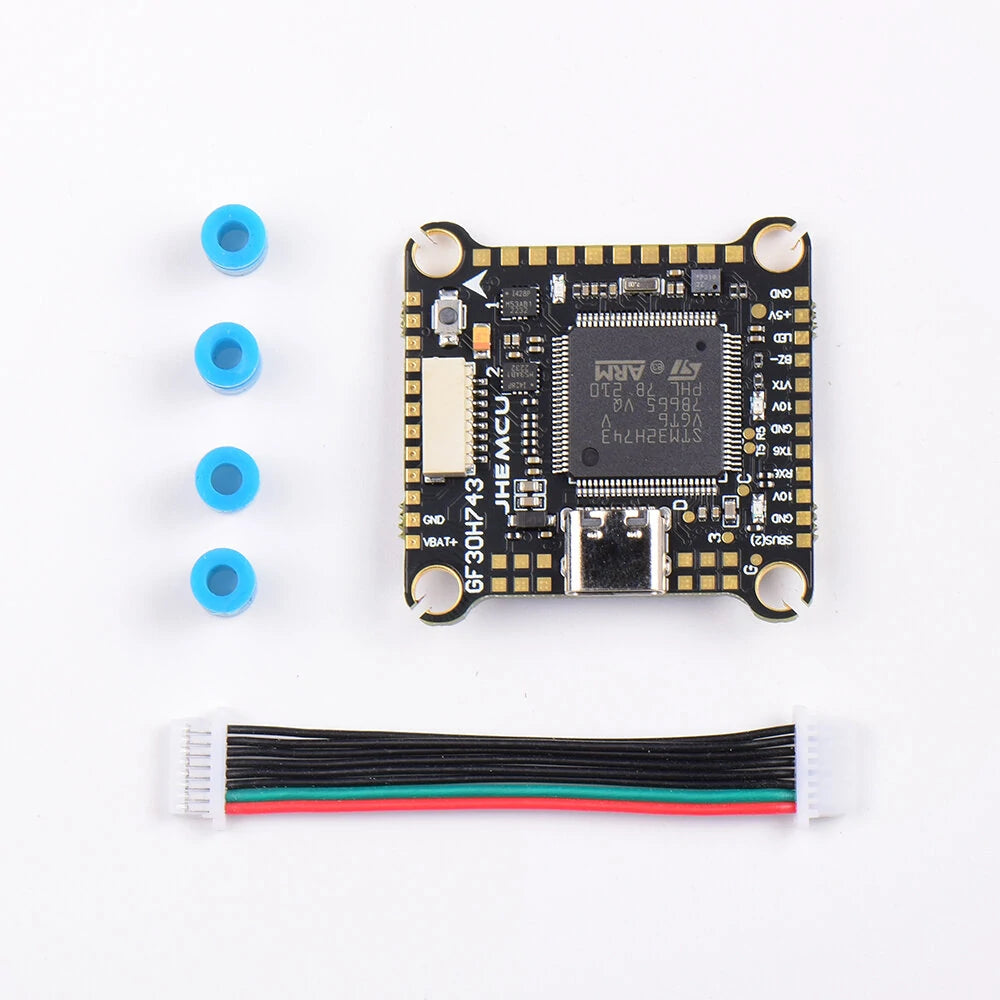

Package Included:
1x GF30H743 Flight Controller
1x SH 8P *1.OMM Plug wire
4x M6*8MM Shock absorbing ball
