Receiver: Receiver 2.4GHz ELRS SPI
Price:
R 4,235.00 R 5,090.00
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.


Features:

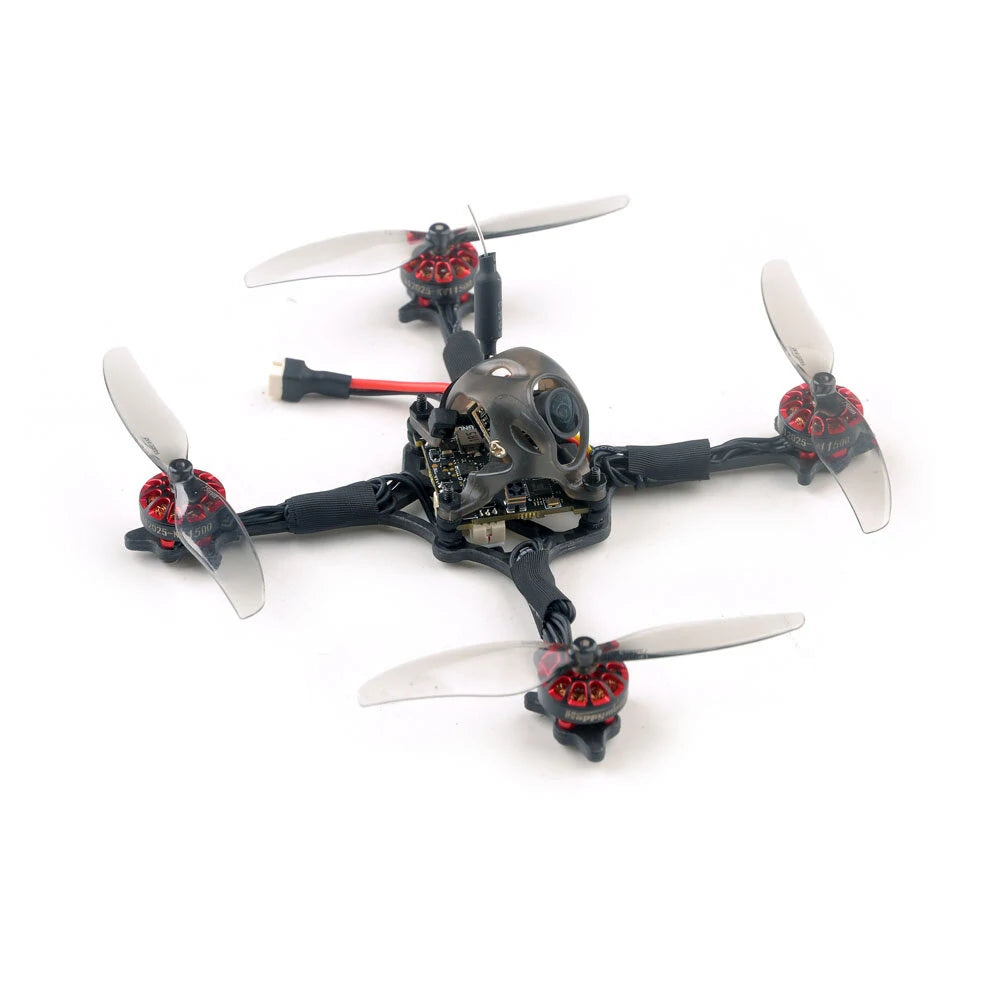

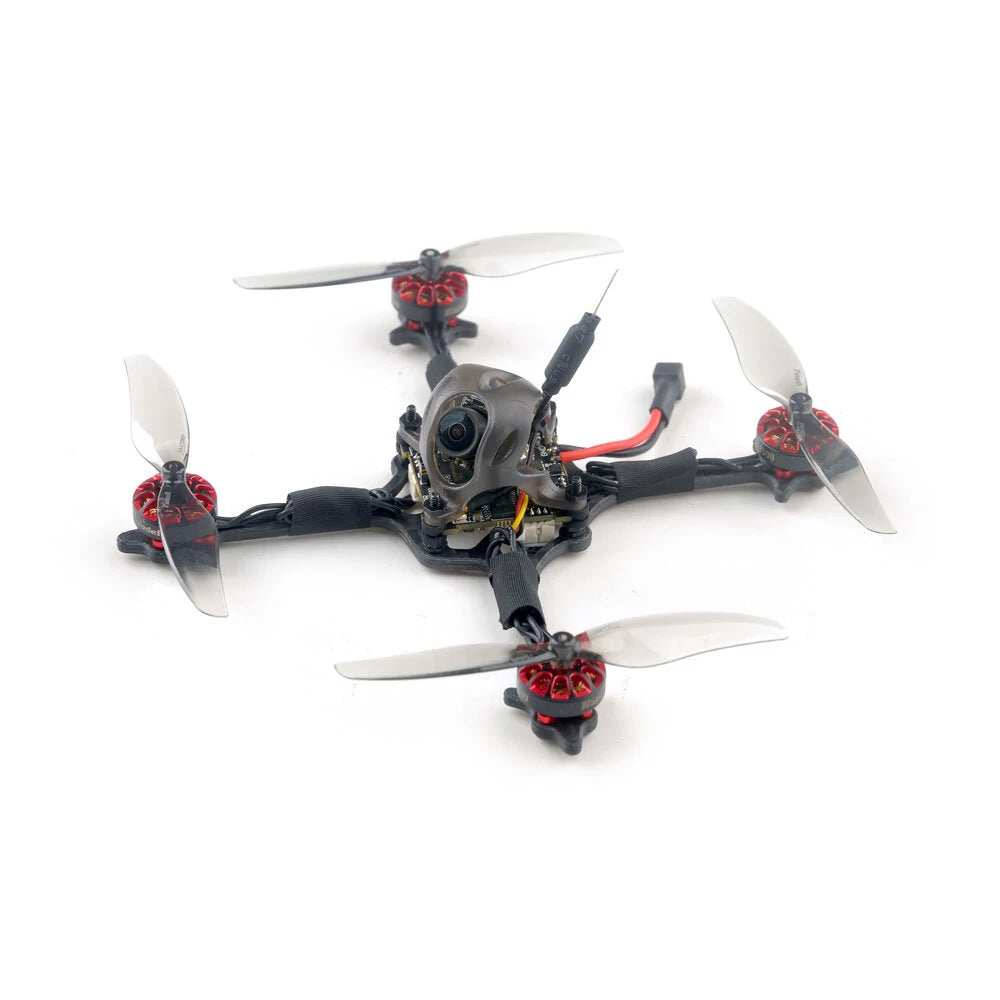

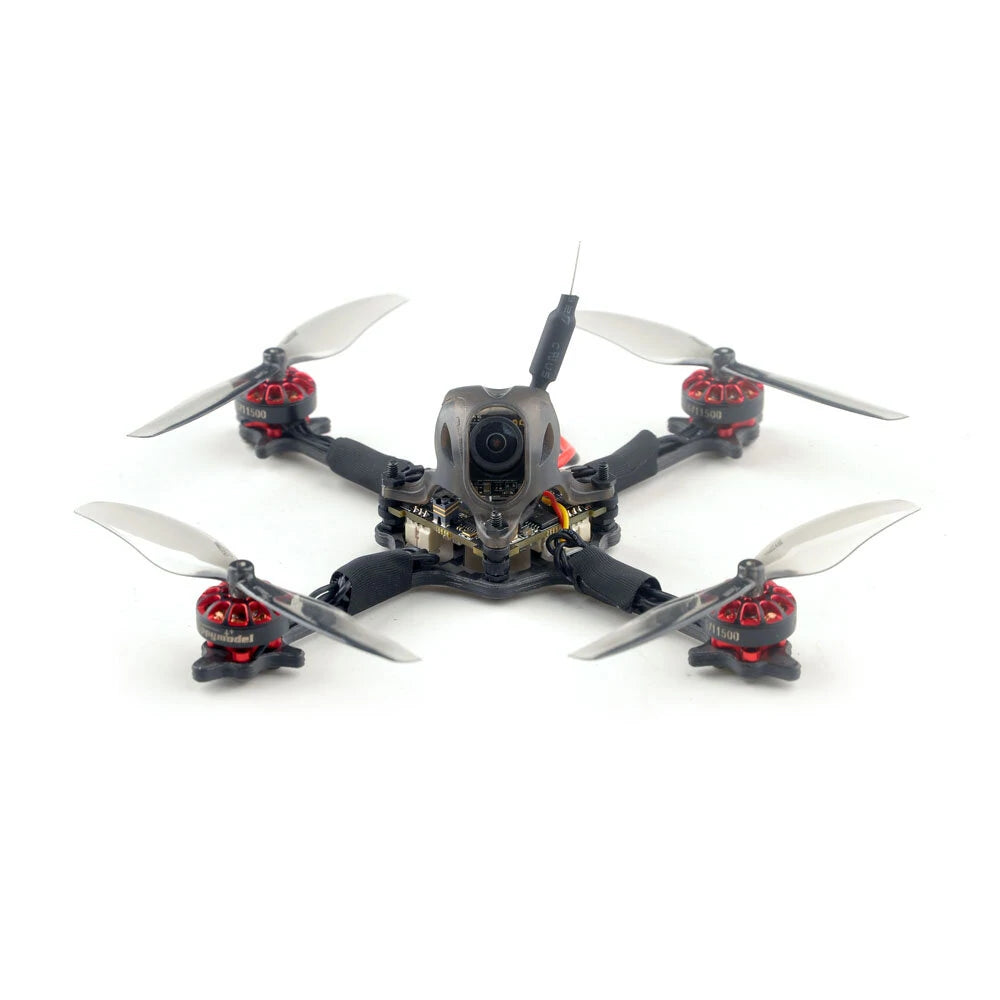

- 40gram 1s brushless Toothpick drone

- AIO Flight controller with ELRS Receiver and 5.8G VTX

- CADDX ANT 1200TVL Camera

- New 1202.5 KV11500 brushless motor

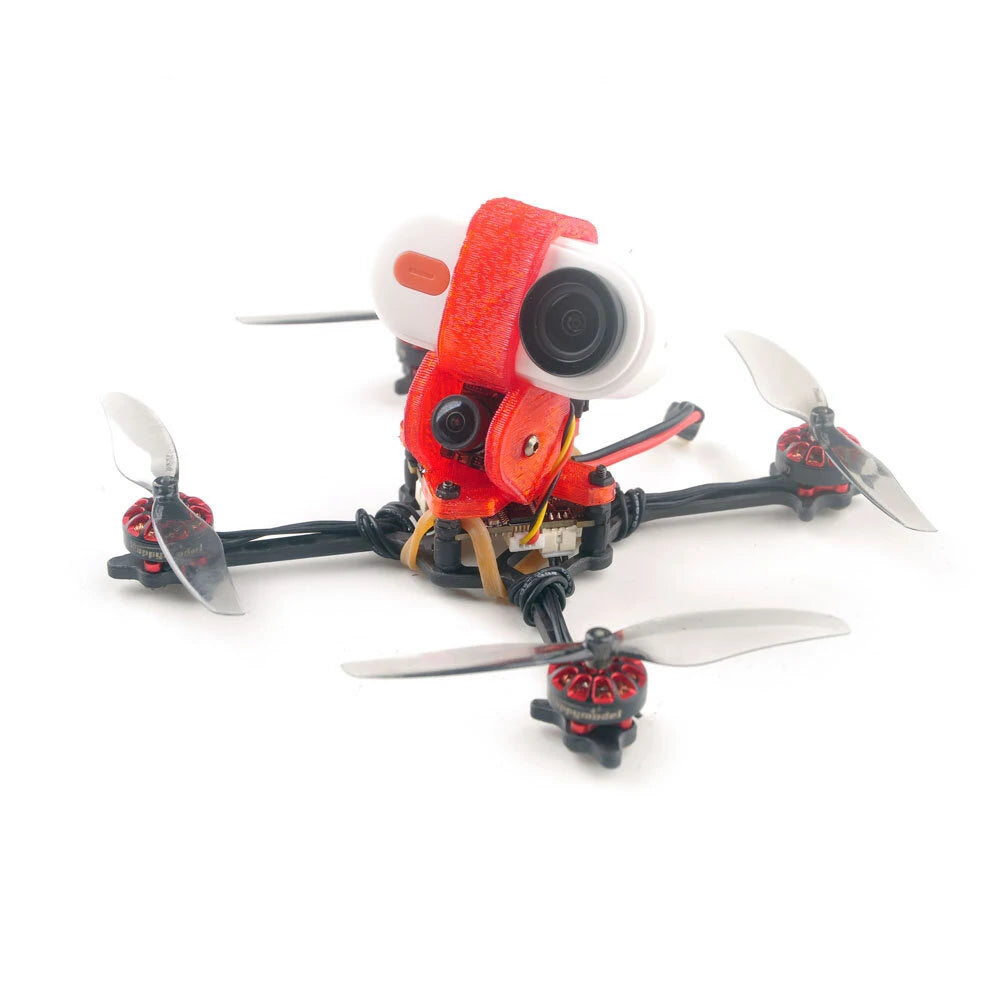

- Compatible with CaddxFPV Peanut and Insta360 GO2 ( NOT Included)

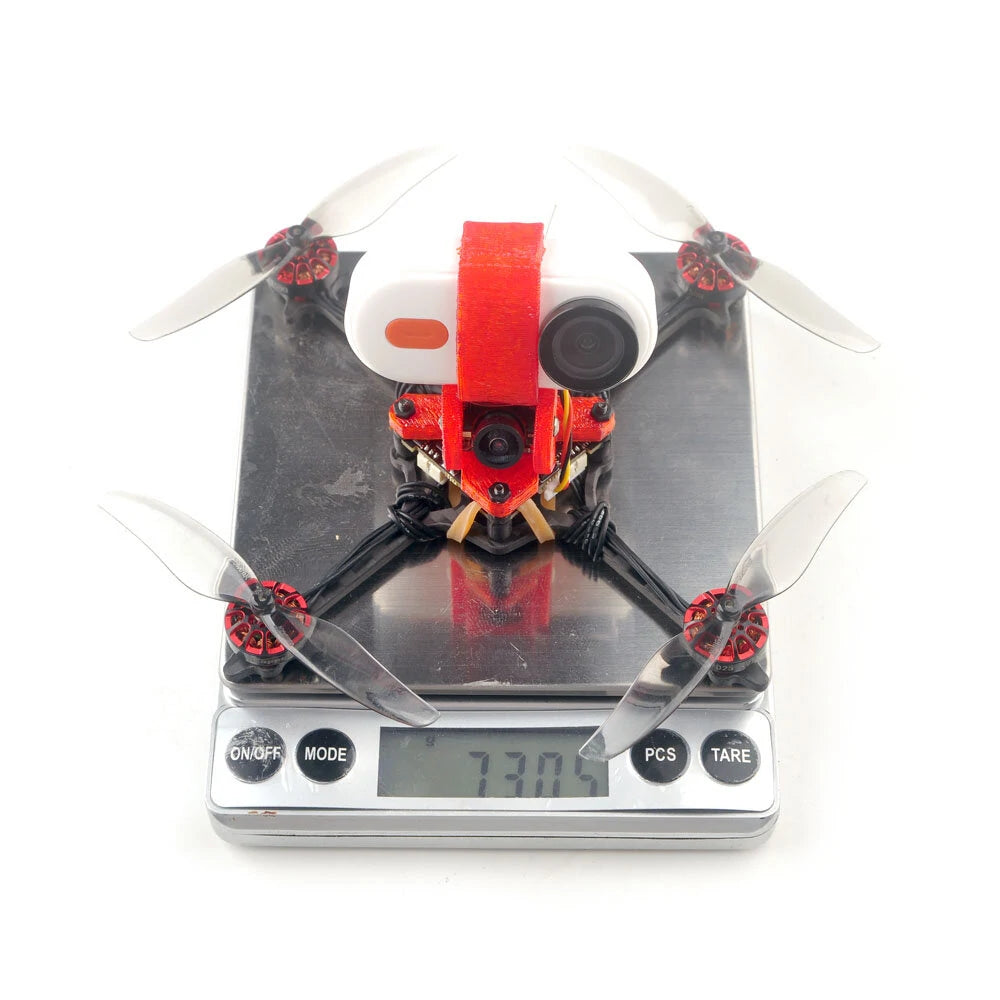

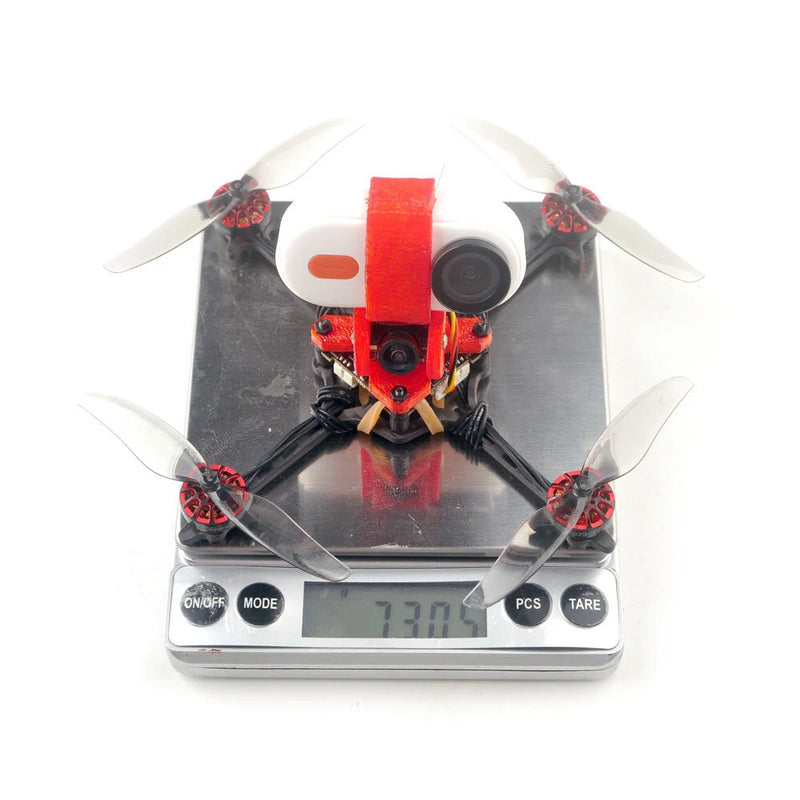

- Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery



SpecificationsÔºö

Brand Name: Happymodel
Model: Crux3 1S ELRS

Item Name: 115mm F4 1S Toothpick FPV Racing Drone BNF

Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

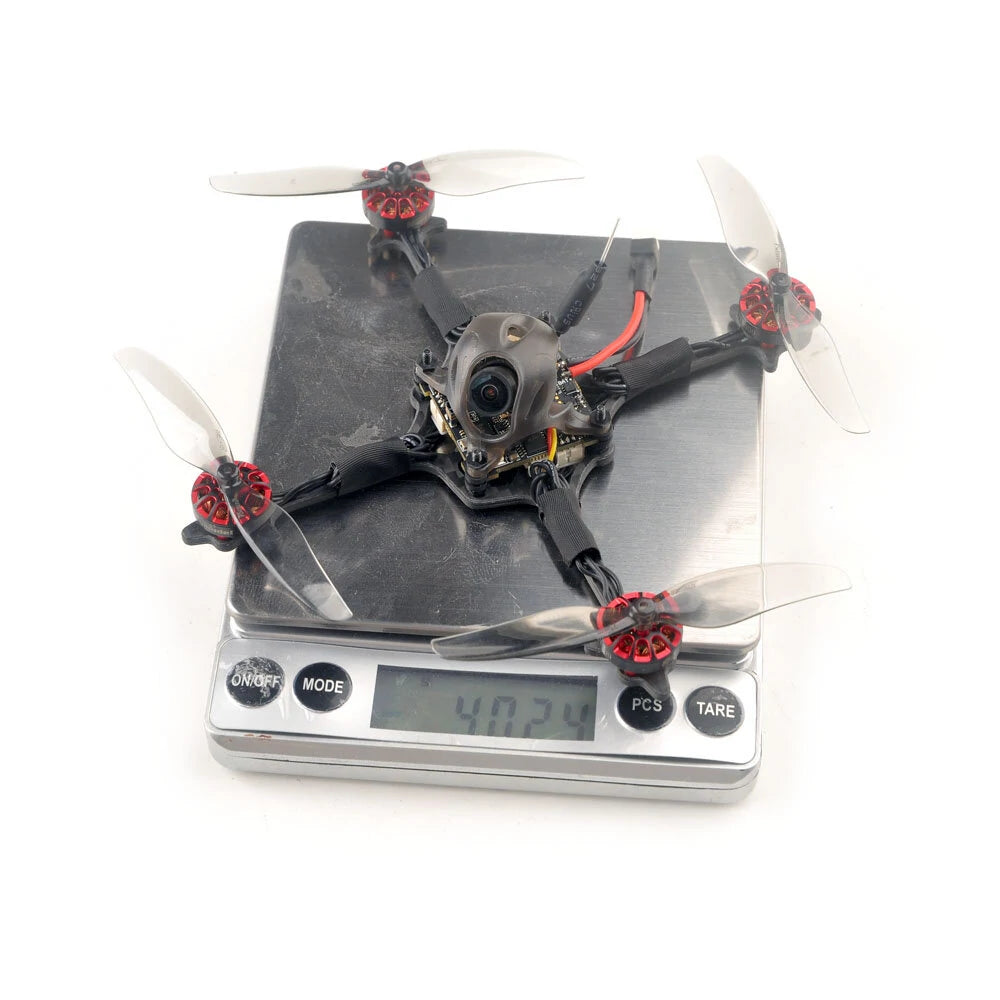

Weight: 40g(without battery)


Motor

Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S

Propellers

Gemfan 75mm

Center Thickness:5mm

Prop Diameter:75mm

Center Hole diameter:1.5mm

Pitch:0.9in

Flight controller

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 / ICM20689 or BMI270 (SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiver

Built-in 5V 1A BECFlight controller

firmware target: CRAZYBEEF4SX1280

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT300

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol to flight controller:  CRSF

Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest

Onboard 5.8g VTX

Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smartaudio ready

Caddx ANT 1200tvl camera

Image Sensor: 1/3' CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL

IMAGE: 16:9 or 4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio : >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(with bracket to 19*19mm)

Wide Power Input: DC 3.7-18V

Work Temperature: -20‚ÑÉ~+60‚ÑÉ

Weight: 2g (N.W.)


Recommend Lipo Battery: ( NOT Included)

1S 450mah / 650mah / 660mah / 720mah battery PH2.0 Plug

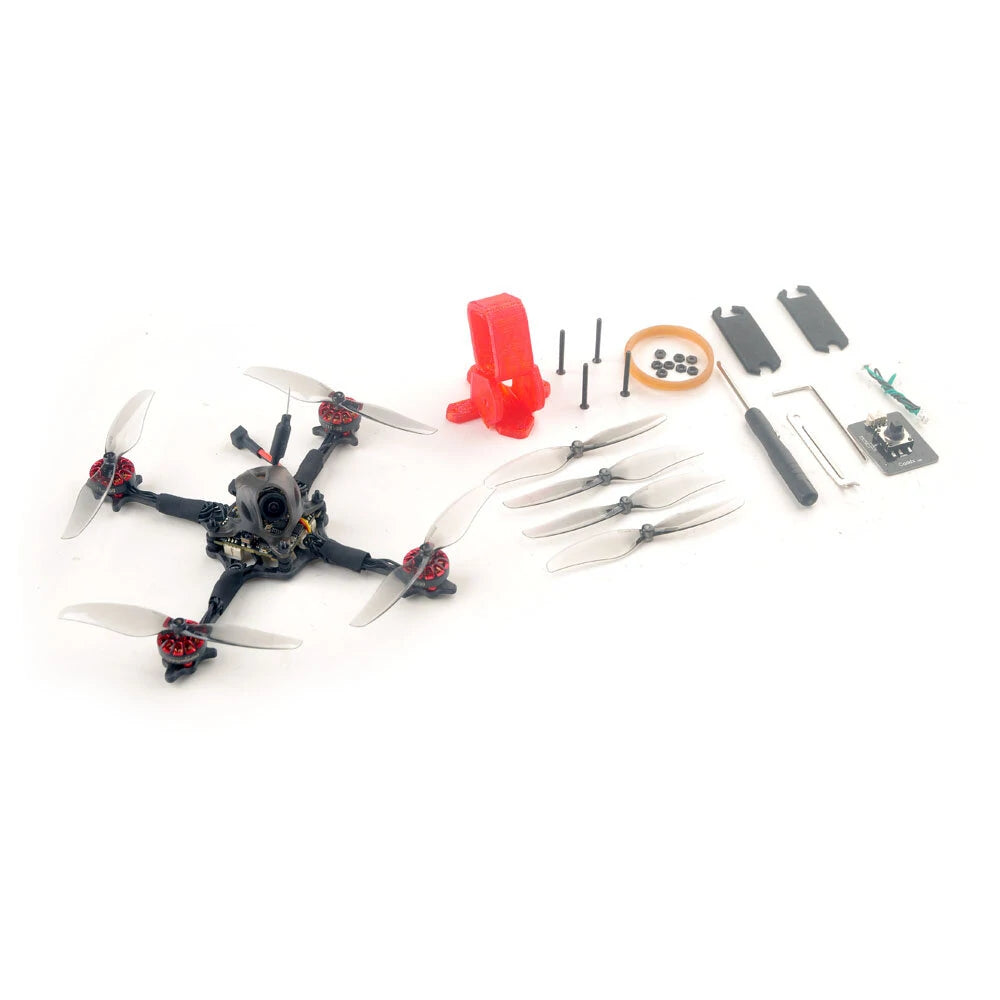

Package Included:

1x Crux3 Frame and canopy

1x ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver

4x Happymodel EX1202.5 KV11500 brushless motor

1x Gemfan 75mm bi-blade Propellers(4cw+4ccw)

1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera

1x 5.8G 25mw~200mw 40ch vtx (Flight controller built-in)

1x Screw Driver

1x Propeller disassemble tool

3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut

1x Happymodel Handbag
