Description
Specifications:

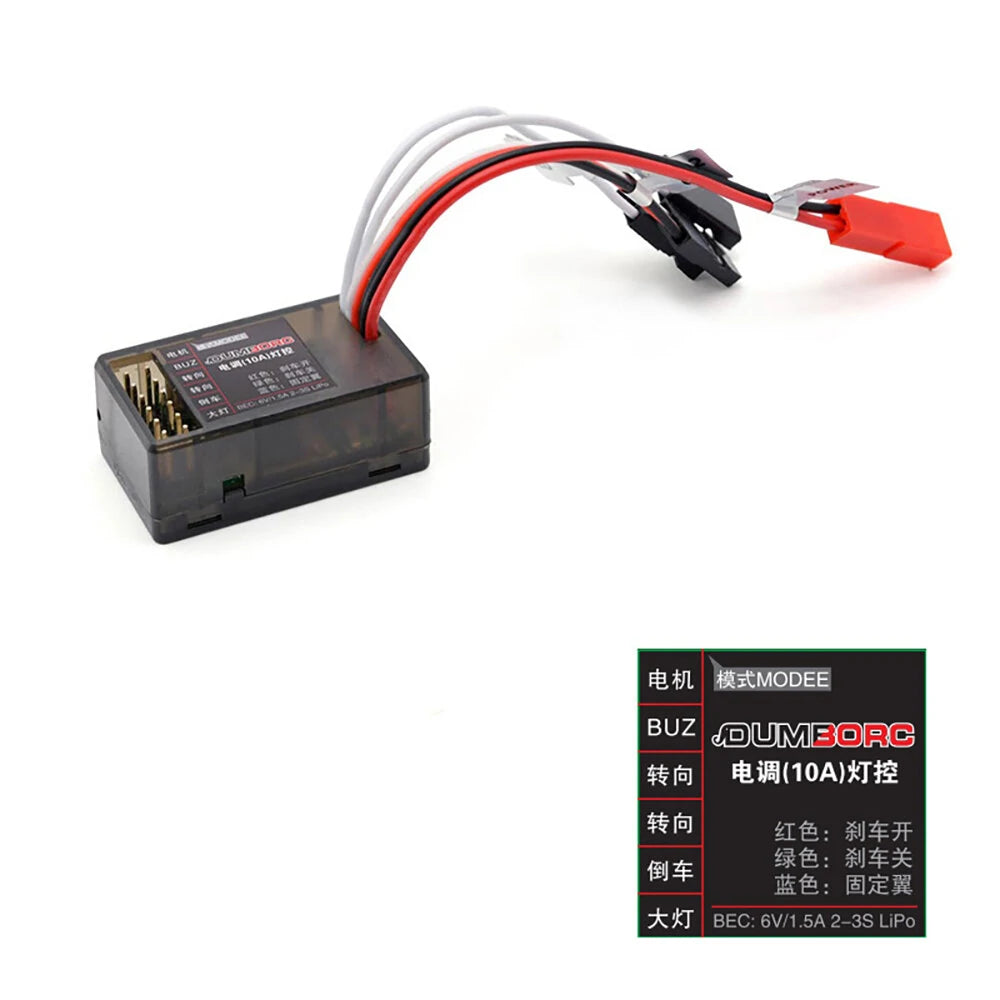

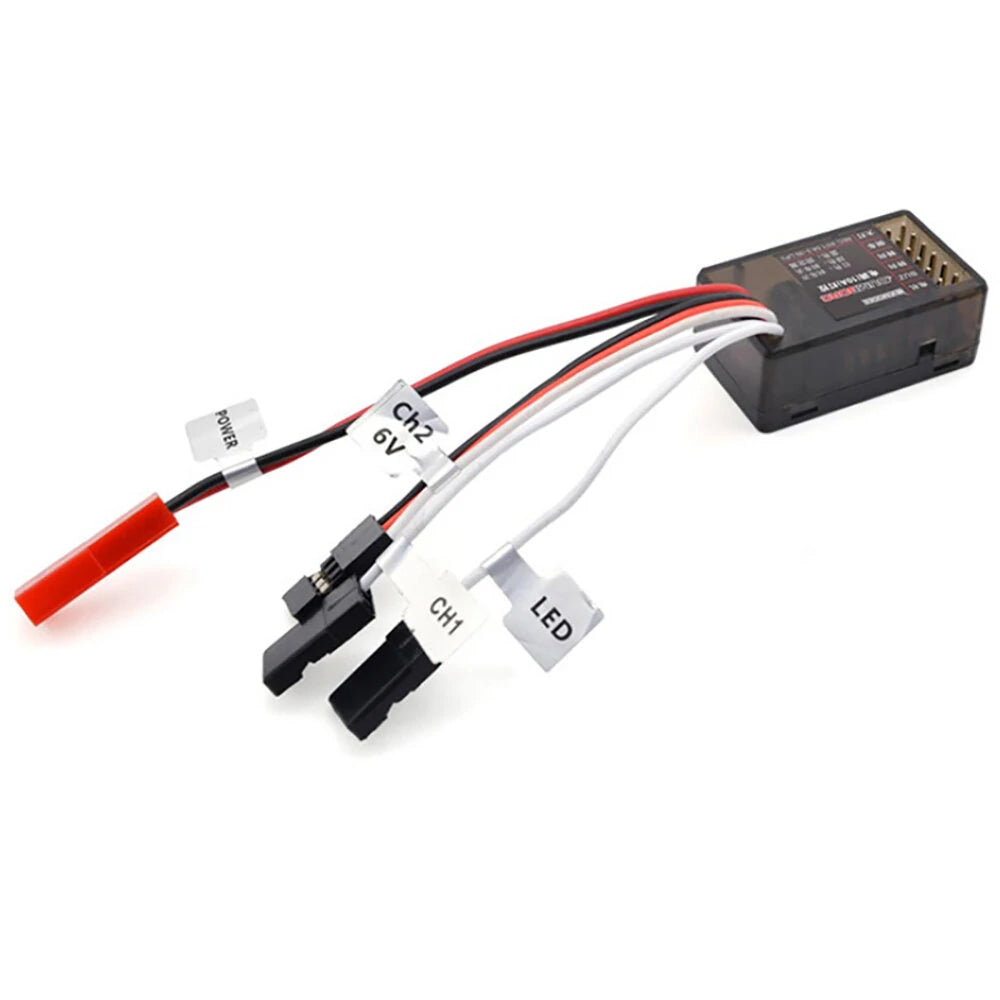

Connection:
CH2: electrically modulated signal line (6V output, supports high voltage)
CH3: enable / disable control signal
LED: connected to headlights (5V output)
M1: Coupling motor
BUZ: beep (low voltage signal)
Power : Connect the battery
Item Size:35*21*13mm
Item Weight:11g
Two types of connection:
Car controller:
CH2: 2 channels
CH3: 3 channels
LED: Headlights
M1: engine
Buz: Low Voltage Alarm
Aircraft control panel:
CH2: 3 channels
CH3: Connecting a two-stage switch
LED: light lamp
M1: engine
Buz: Low Voltage Alarm
Lamp control:
The output voltage of the channel
connected to the LED is 5 V, which can be used as a high-level drive
relay of the module. Can be connected to LED light, can also be used as an external switch with a high degree of reproduction.
Low voltage signal:
Automatic identification battery 2 S /
3 S, the default alarm voltage of 2 S batteries is 7.2 v, and the
default alarm voltage of 3 S batteries is 10.7 v
Features:
1. Support 2 to 3S battery, continuous current 8A, peak 10A, BEC output 6V 1.5.
2. Support 130-180-270 series brush motor.
3. Integrated light group can realize the linkage simulation of steering, reversing and headlight
4. The LED interface has the function of voltage anti reverse insertion, which will not burn the product, but it can not be used normally. If it is replaced correctly, it can be used normally
5. Electric adjustment can set two-way and fixed wing one-way mode for vehicle, and vehicle can be set with or without brake.
Package Included:

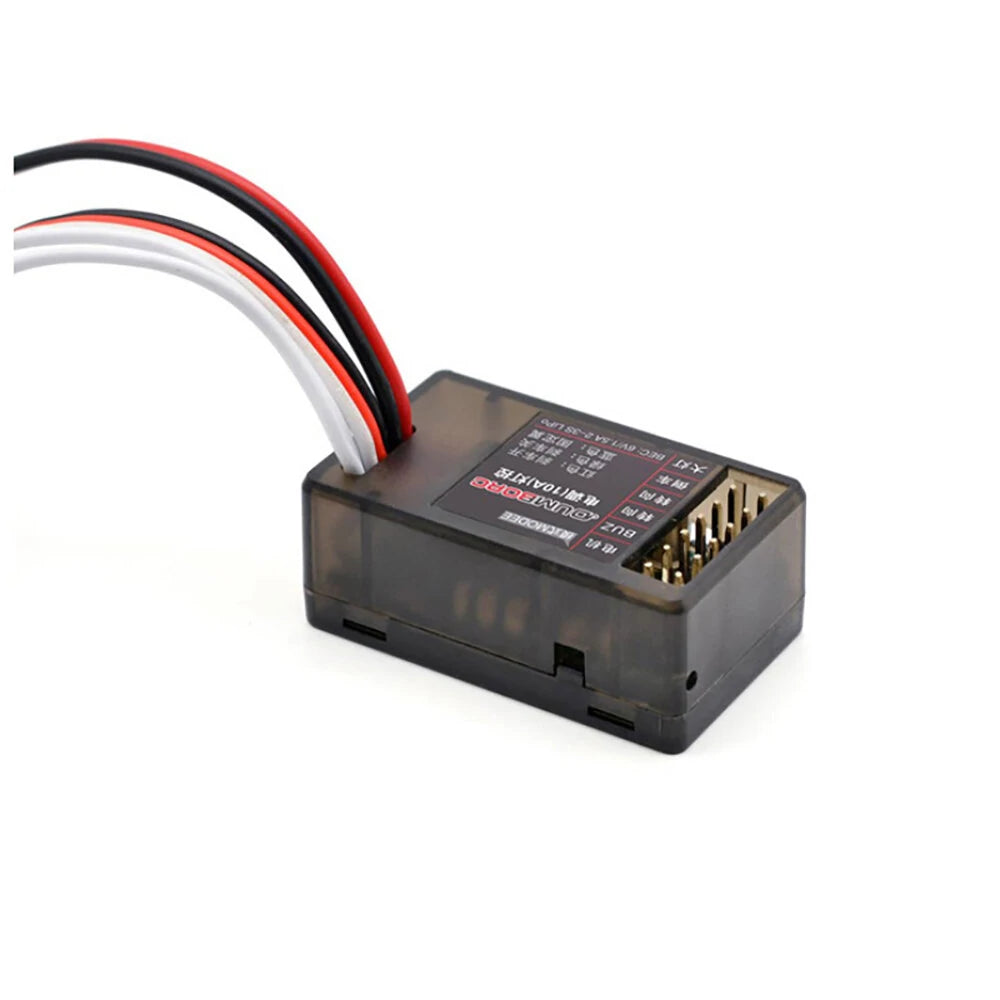

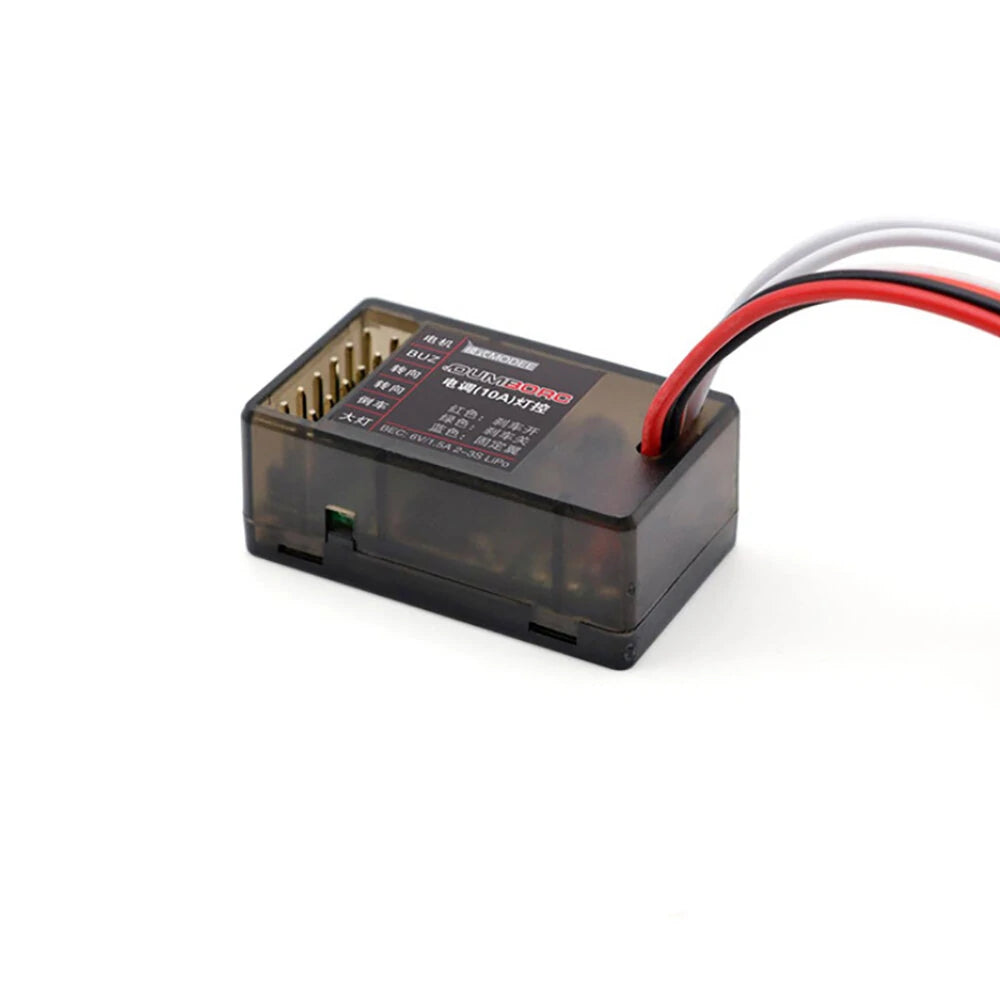

1 x DumboRC 10A Brushed ESC
(Note: Package dimensions are 10*5*2cm with a weight of 14g.)
