Description
Specification:
Brand:Flipsky

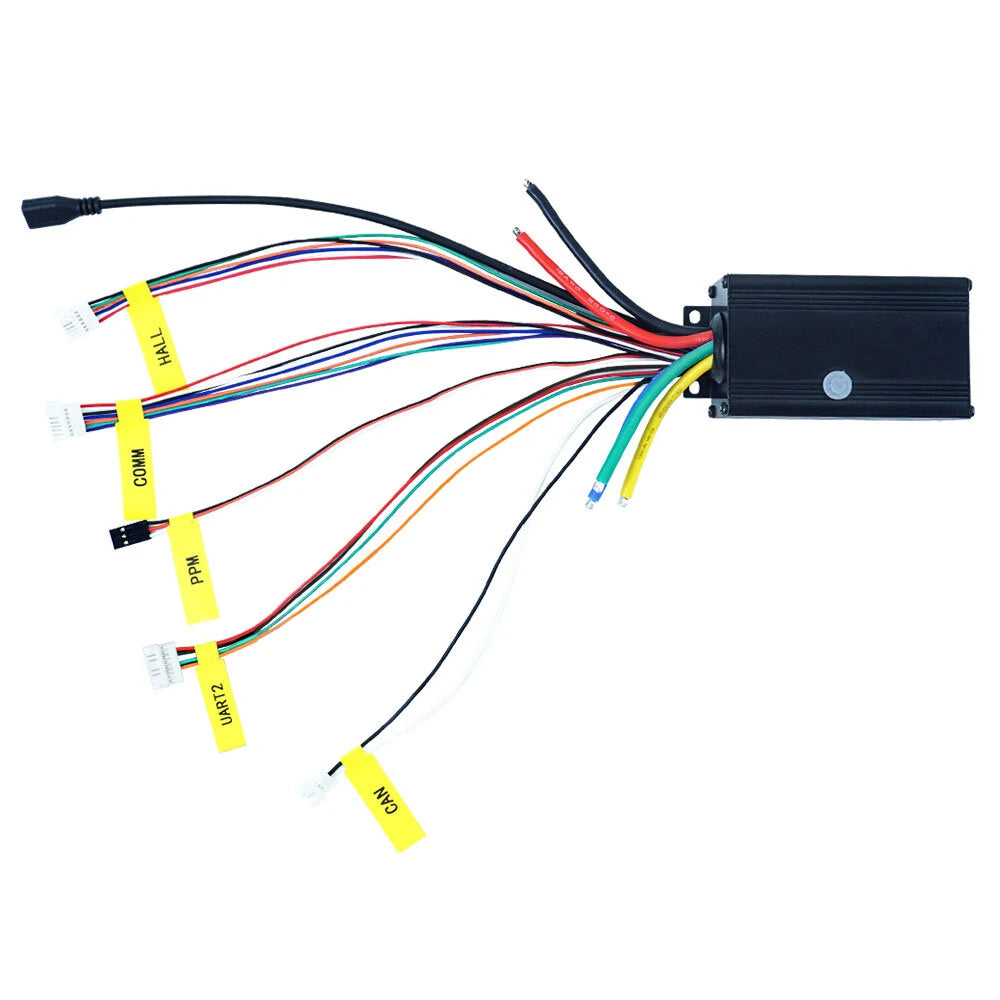

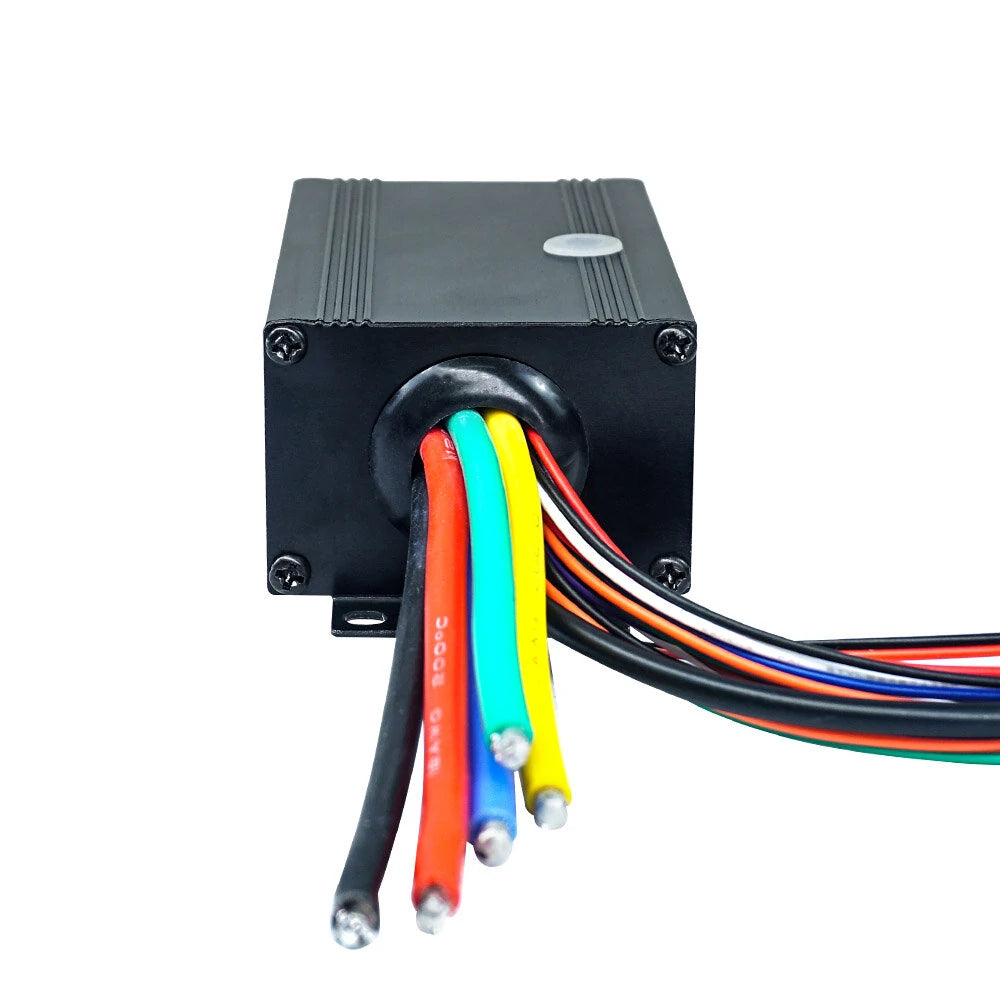

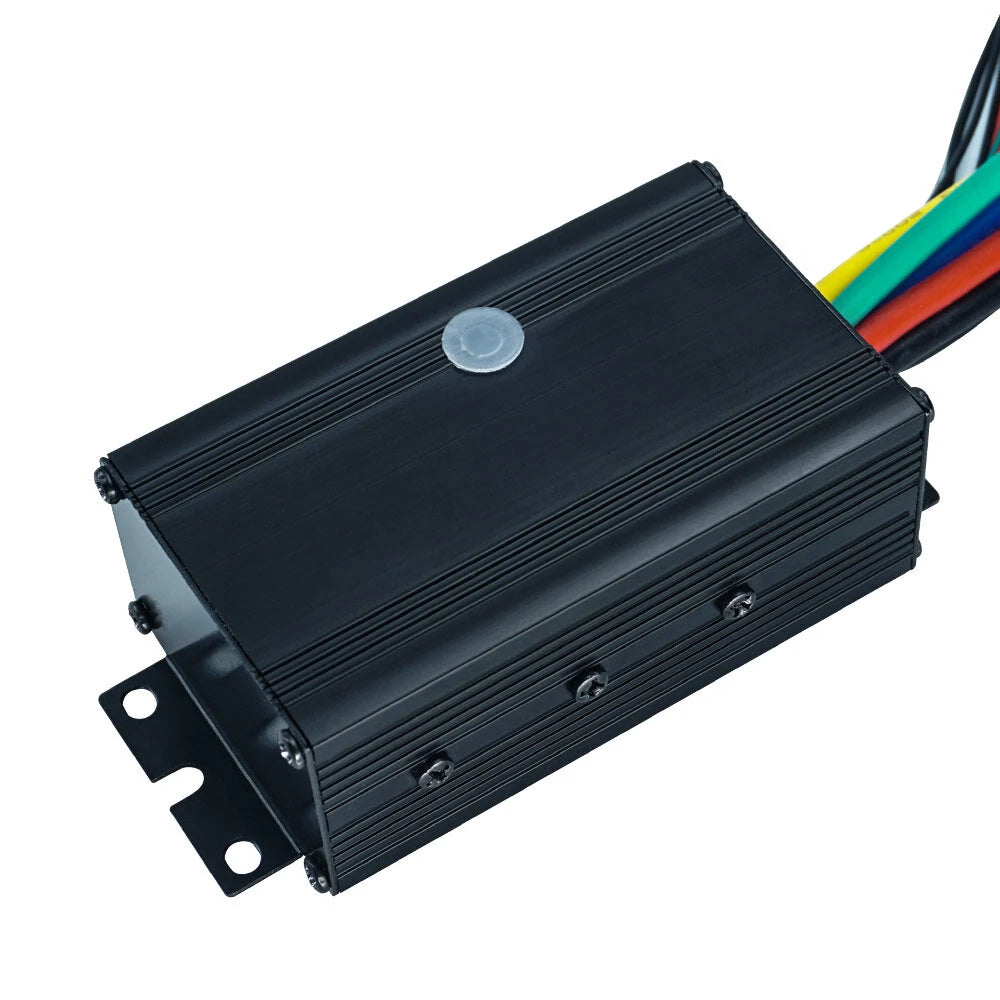

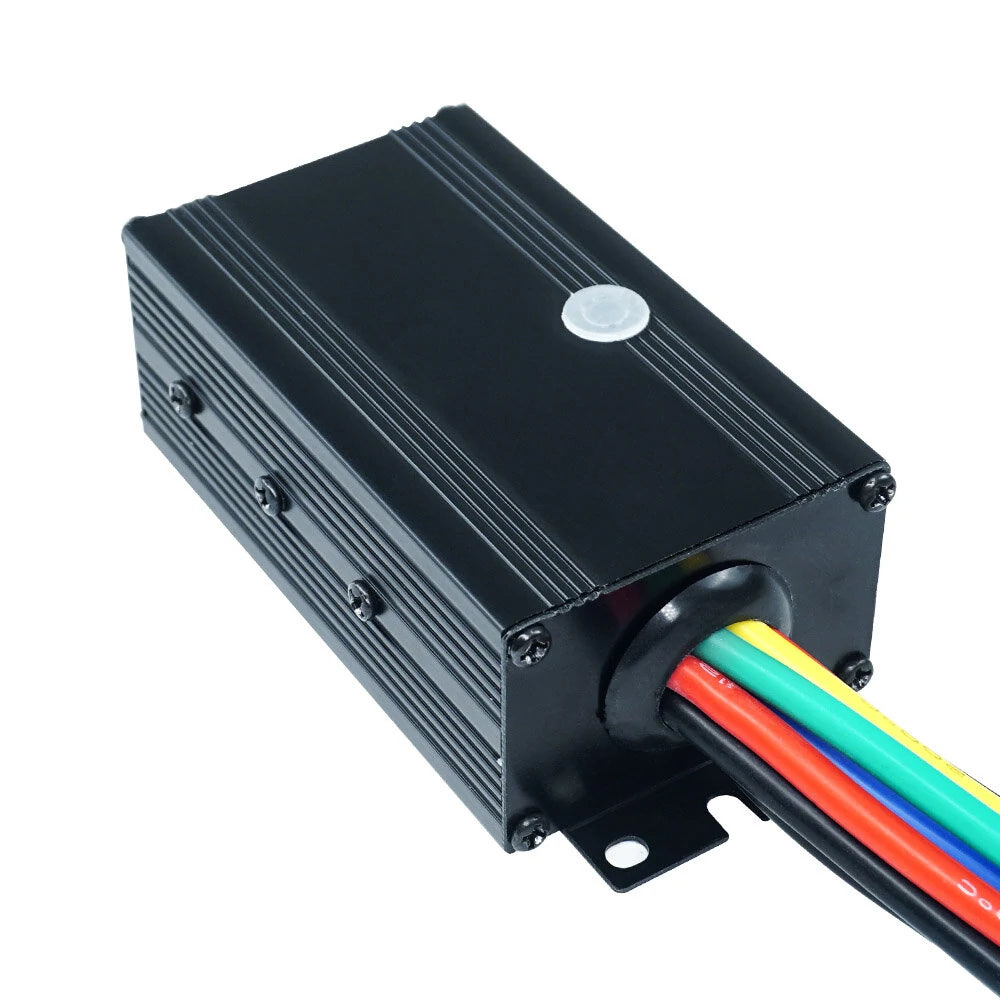

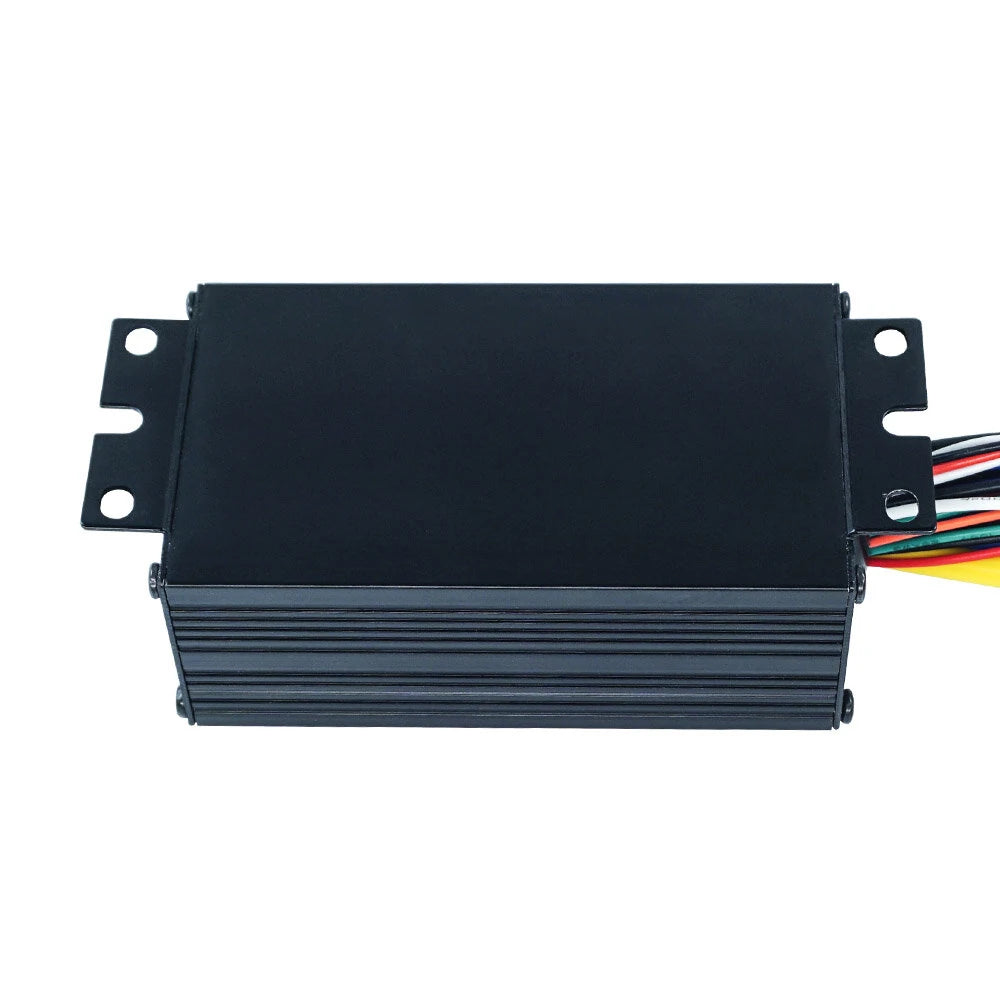

Item Name:FS75100 ESC
Voltage:14-84V (4-20S)
Continuous Current:100A
Max Current:120A
Firmware:TOOL3.0(firmware5.2), firmware upload not available
ERPM:150000
Control Interface Ports:USB,CAN,UART
BEC:5V@1A
Modes:FOC (sinusoidal)
Supported Sensors:ABI,HALL,AS5047,AS5048A
Input Set Support:PPM,ADC,NRF,UART
Wire Size:12AWG
Size:L85mm*W50.7mm*H33.8mm
Programmable:Yes
Regenerative Capacity:Yes
Feature:
Two COMM ports, UART bluetooth module, IMU,screen display or remote controller supportable.
Programmable via tool with overheat and overcurrent protection.
Package Included:
1x FS75100
1x USB Cable
1x Hall Sensor Adapter (6pins)
1x Manual
