Description

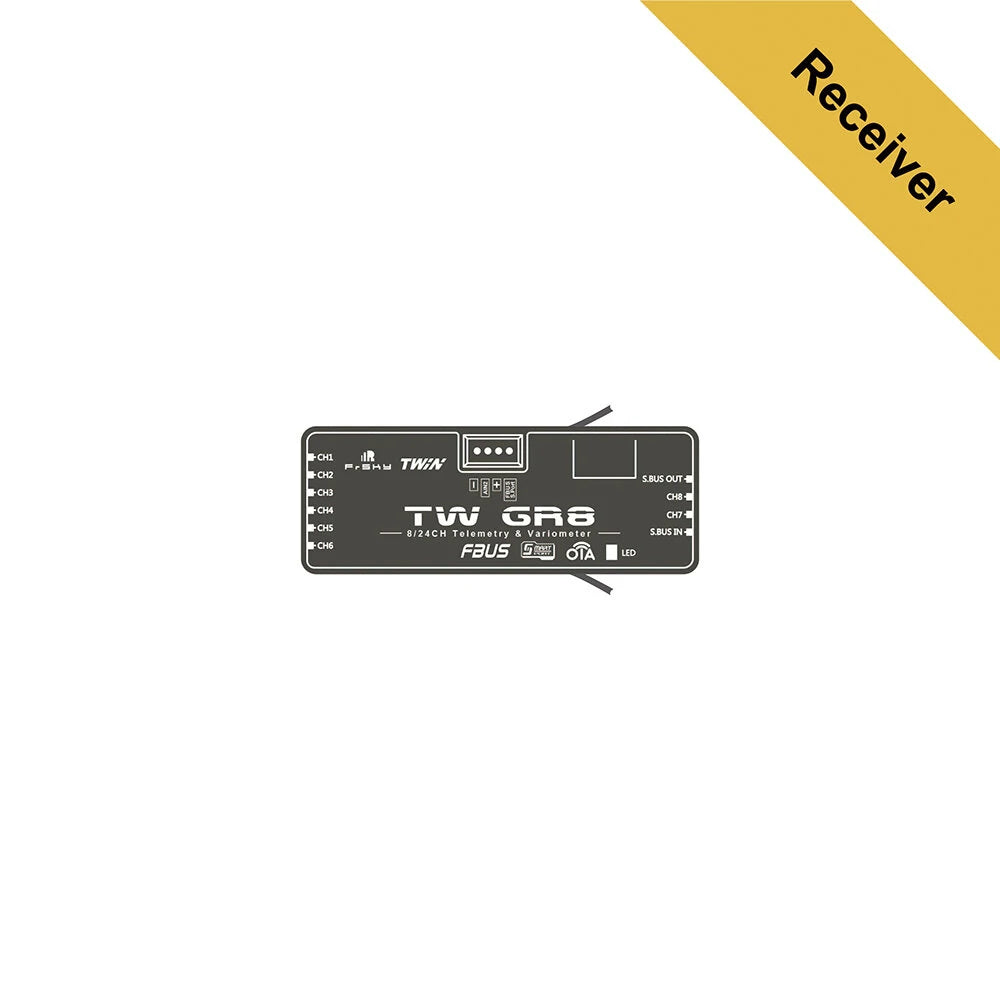

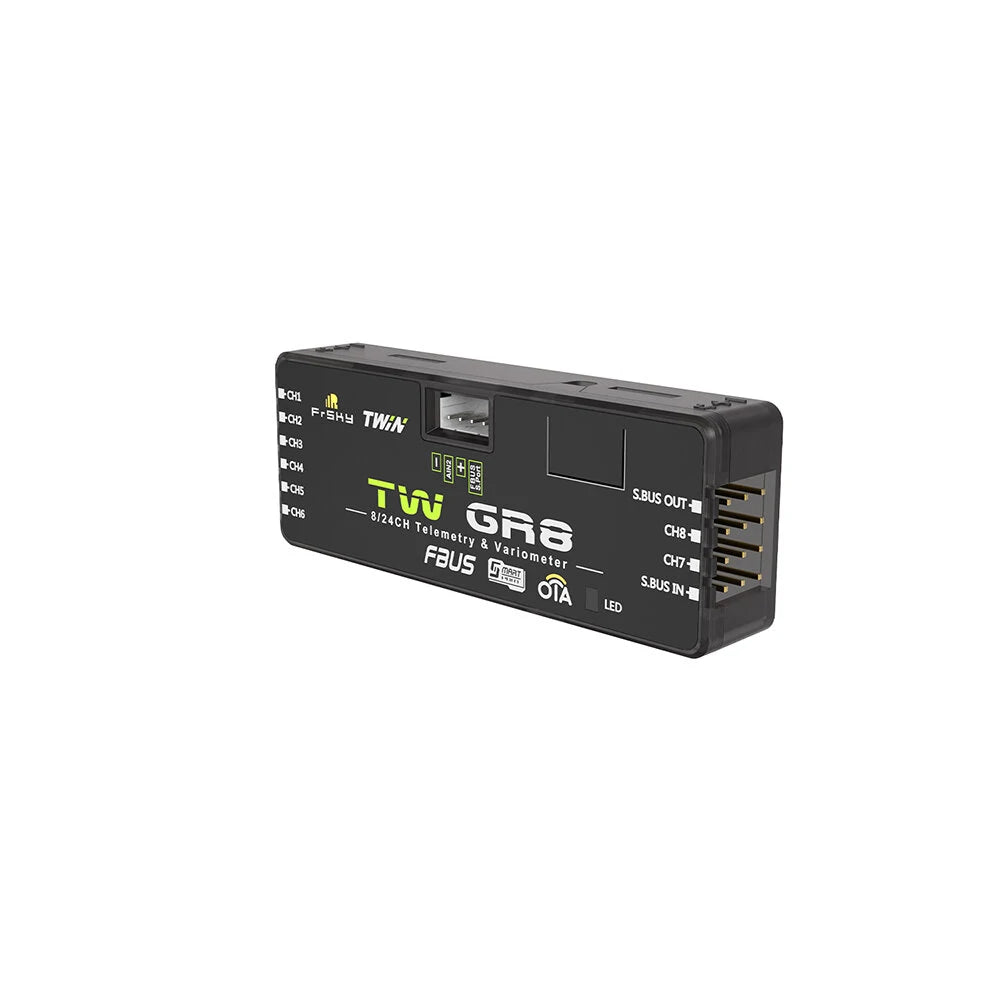

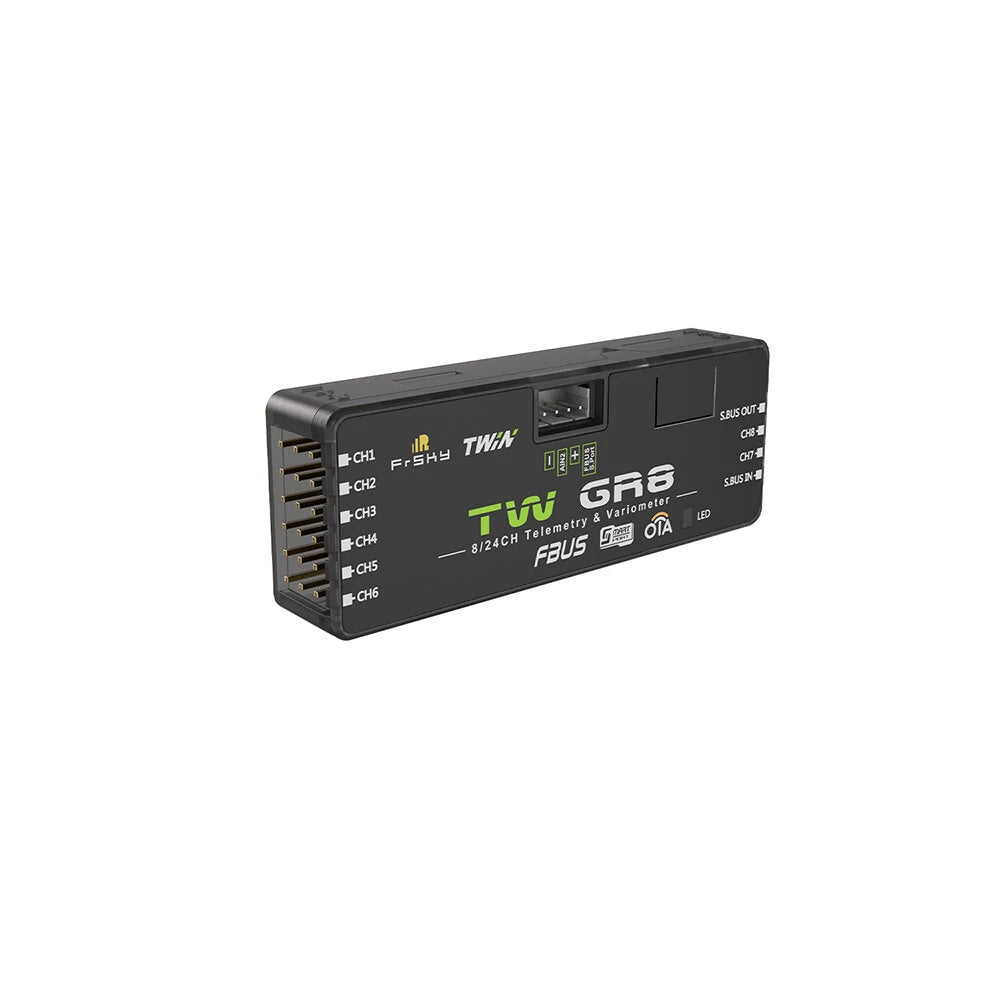

FrSky TW GR8 Dual 2.4G 8/24CH PWM Telemetry & Variometer Receiver FBUS / S.Port SBUS Output for FPV RC Racer Drone
TWIN series TW GR8 receiver features a new stable TW protocol that benefits from simultaneously integrating dual active 2.4G frequency bands. The TW active-active protocol is different from the general active-standby redundancy solution (where one receiver takes over signal control only when the other is in Failsafe mode), with the TW protocol, dual 2.4G frequency bands are active on the TW series receiver at the same time.
This receiver is designed for RC users who want to benefits from resiliency and long-range in their radio communications,typically up to tens of kilometers is achievable. TW GR8 receiver features an upgraded high-precision variometer that gives pilots quick, accurate altitude and vertical speed data, and is ideal for any type of glider pilot.The TW GR8 receiver is equipped with 2×2.4G antennas. The signal ports include both SBUS In & Out channel and 8 PWM output channel ports. It also supports telemetry functions through FBUS /S.Port. By setting the TW GR8 to use FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device that supports FBUS protocol through only one line to achieve bidirectional transmission, also simplifying the model build using fewer wires.
Description:
Brand: FrSky
Model: TW GR8
Item: Dual 2.4G Receiver
Frequency: Dual 2.4GHzDimension: 54*20*10mm (L*W*H)Weight: 9.8gOperating Voltage: 3.5-10V (Please ensure the supplied voltage exceeds 2.8V during the use.)Operating Current: 80mA@5VVariometer Measurement Range– Altimeter Range & Resolution: – 700m to 10000m & 0.1m– Vertical Speed Range: ±10m/sVoltage Measurement Range via AIN2 (External device): 0-36VAntenna Connector: IPEX4Compatibility: TWIN series Radio & RF module in TW mode.Features:
* Simultaneous working dual 2.4G TW mode;
* High-precision variometer sensor;
* Black-Box function;
* Long control range (Range varies based on the RF Power settings.);
* Over-The-Air (OTA) FW update;
* 8 PWM channel ports;
* SBUS Out port (Supports 16CH / 24CH mode);
* SBUS In port (Supports Signal Redundancy);
* FBUS / S.Port
Package Included:
1x FrSky TW GR8 Dual 2.4G Receiver
