Description
Overview

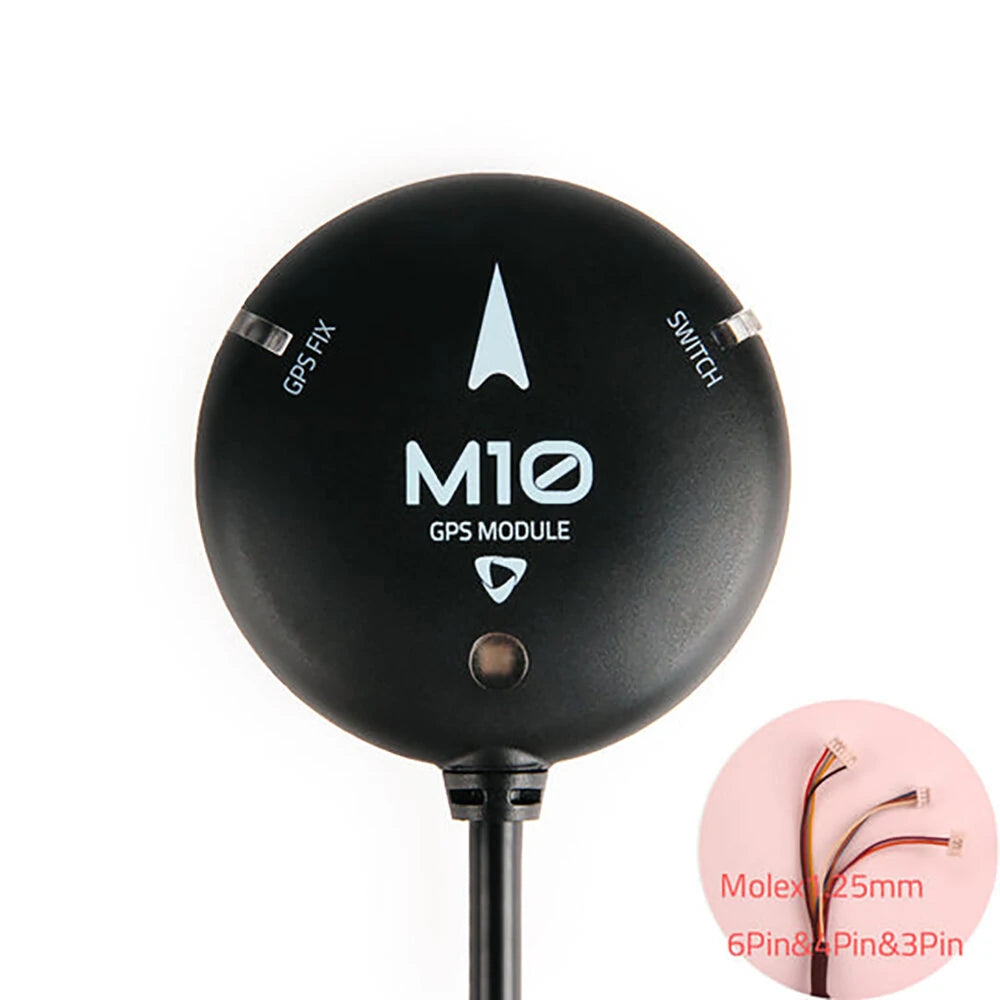

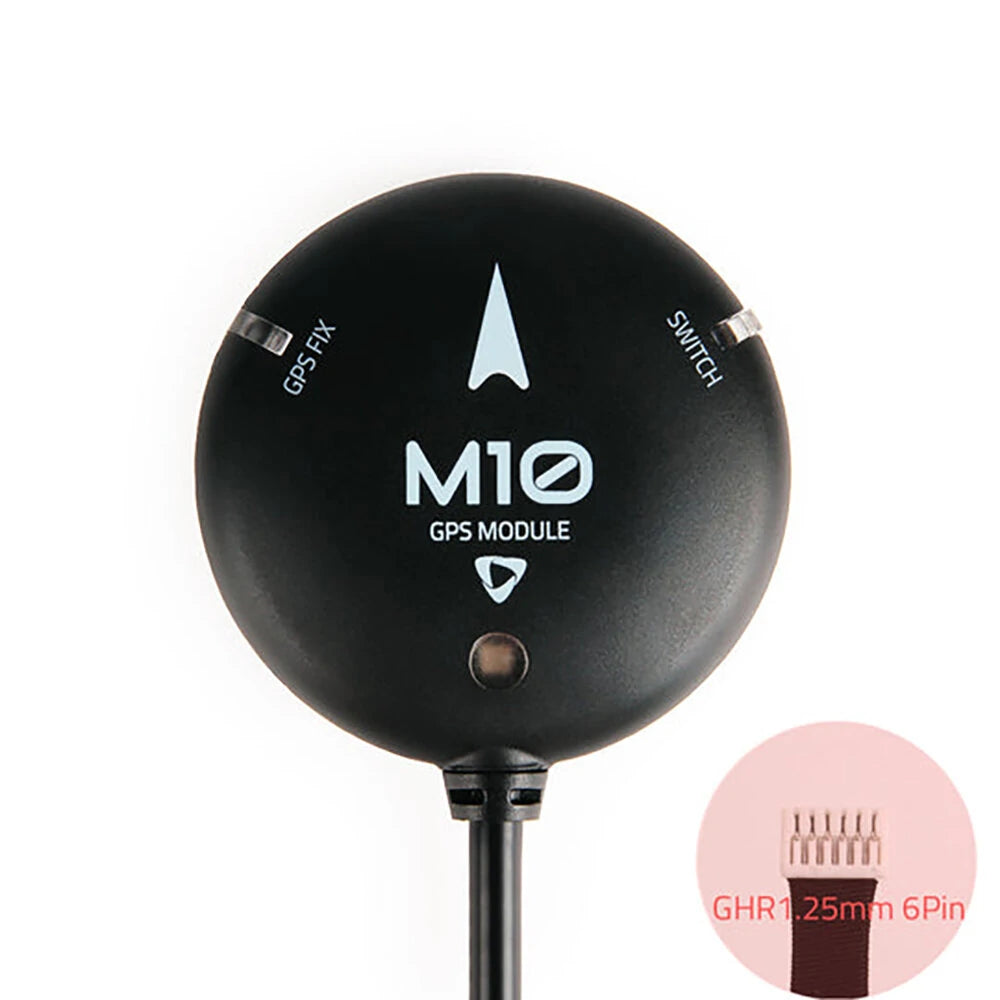

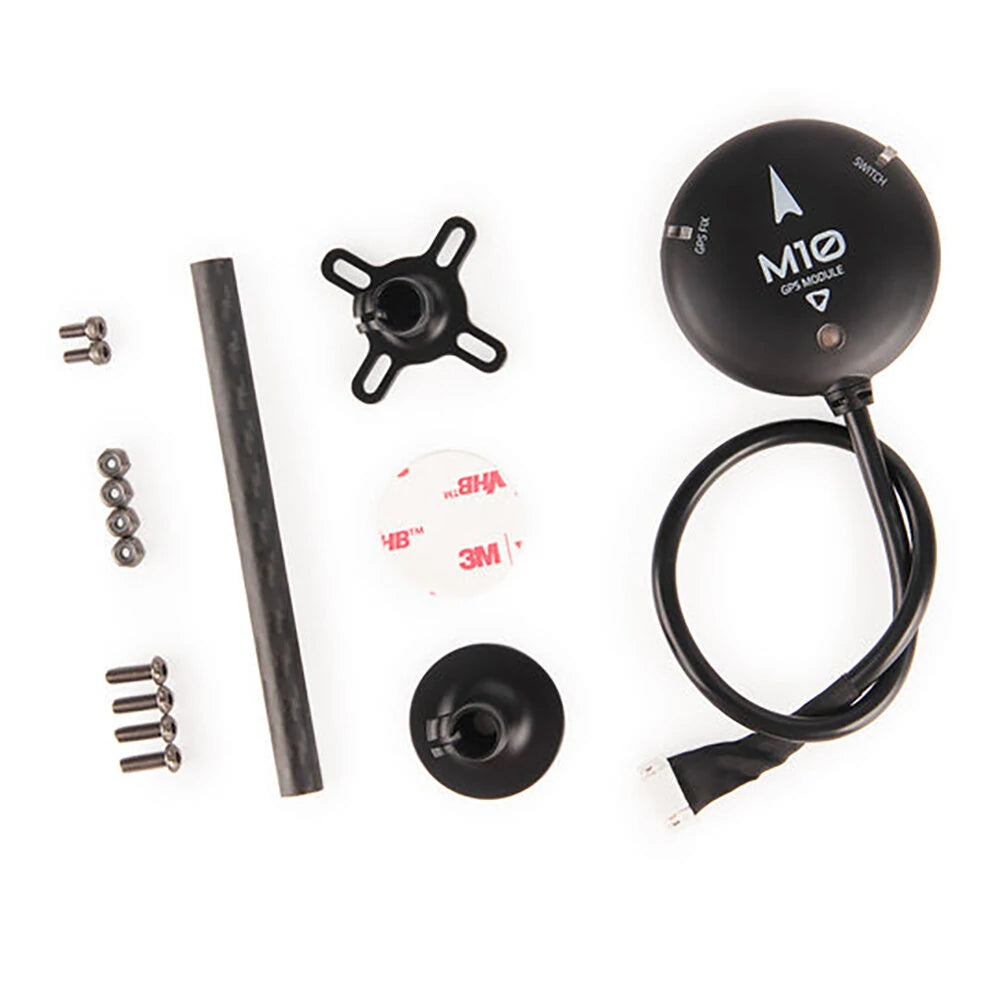

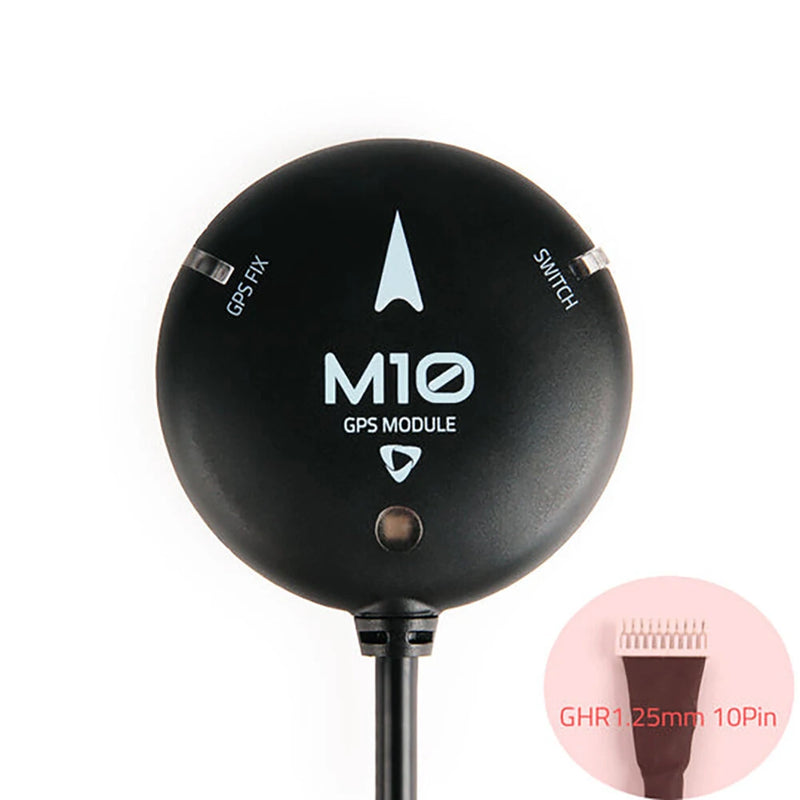

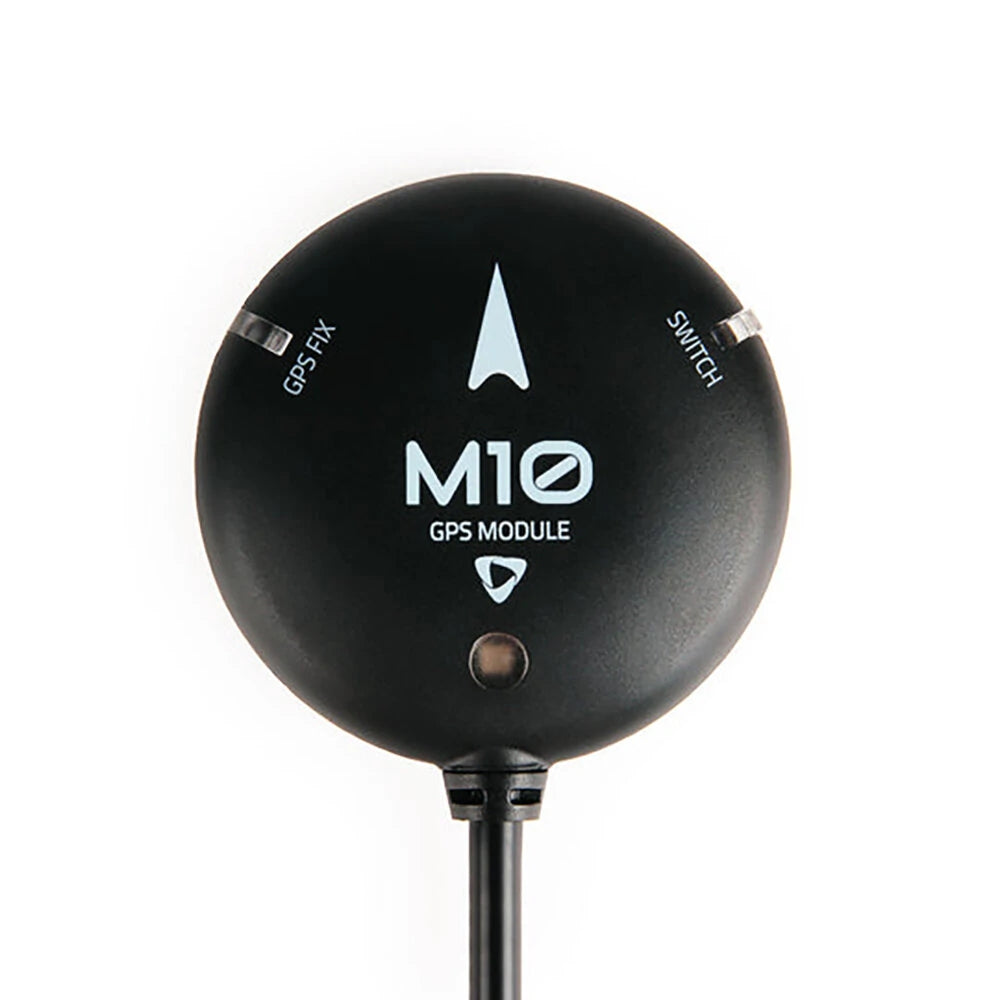

The M10 GPS uses multi-constellation GNSS powered by u-blox M10 series, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently.
It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. There are 3 different connectors options for different purposes. This module ships with a baud rate of 115200 5Hz.
The high-gain 25 x 25 mm patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Features
· Newest Ublox 10th Gen GNSS
· Fast & Accurate Positioning
· High-gain 25*25*4mm antenna
· IST8310 Compass
· Internal Buzzer, Safety switch
· Ultra Bright UI RGB LED
Specification
|
Holybro M10 GPS |
Holybro M9N GPS ( Product Link) |
GNSS Receiver |
Ublox M10 |
Ublox M9N |
|
Number of Concurrent GNSS |
Up to 4 GNSS |
Up to 4 GNSS |
BeiDou |
BeiDou |
|
Galileo |
Galileo |
|
GLONASS |
GLONASS |
|
GPS |
GPS |
|
QZSS |
QZSS |
|
|
Frequency Band |
GPS L1 |
GPS L1 |
Galileo E1 |
Galileo E1 |
|
GLONASS L1 |
GLONASS L1 |
|
BeiDou B1 |
BeiDou B1 |
|
SBAS L1 |
SBAS L1 |
|
QZSS L1 |
QZSS L1 |
|
Compass |
IST8310 |
IST8310 |
|
Output Protocol |
UBX (U-blox) |
UBX (U-blox) |
NMEA |
NMEA |
|
Accuracy |
2.0m CEP |
