Description
Notice: It is upgrade into new V2 Version. ( May 12th, 2023. Beijing Time)
USA Warehouse: Still Old V1 Version
CN Warehouse: V1 / V2 stock mix. Will send Randomly.
Diffirence:
- V2 Comes with New F5X V2 frame ( Like pohotos showed)
- V2 Comes with BLITZ Whoop 1.6W VTX ( Analog Version) ; V2 Comes with Runcam Link WASP ( HD Version)
V1 is 5.8GHz SucceX Mini Micro 600mW VTX ( Analog Version)
Specifications:
Brand: iFlight

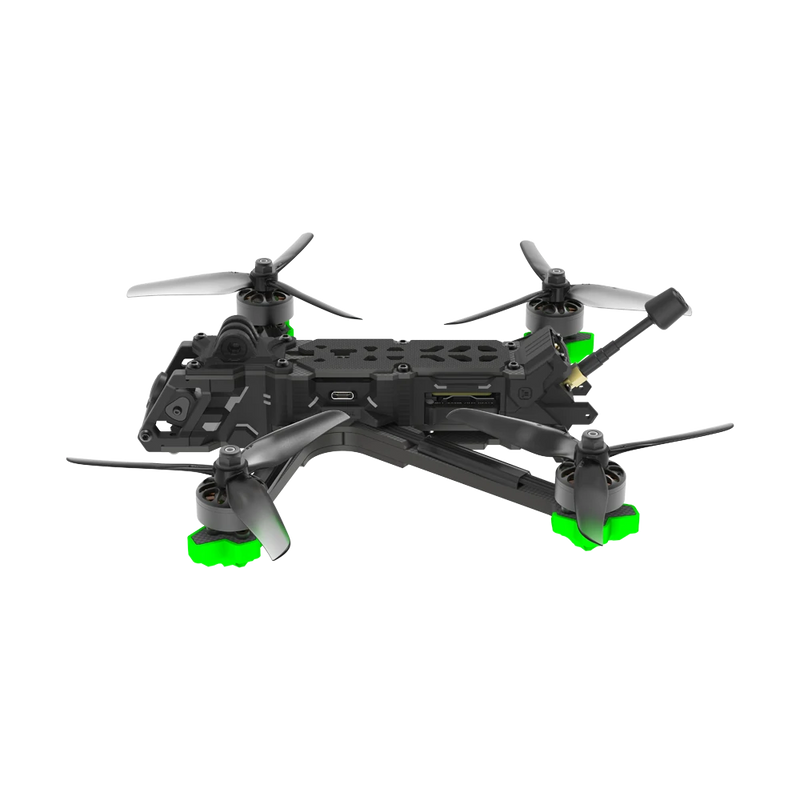

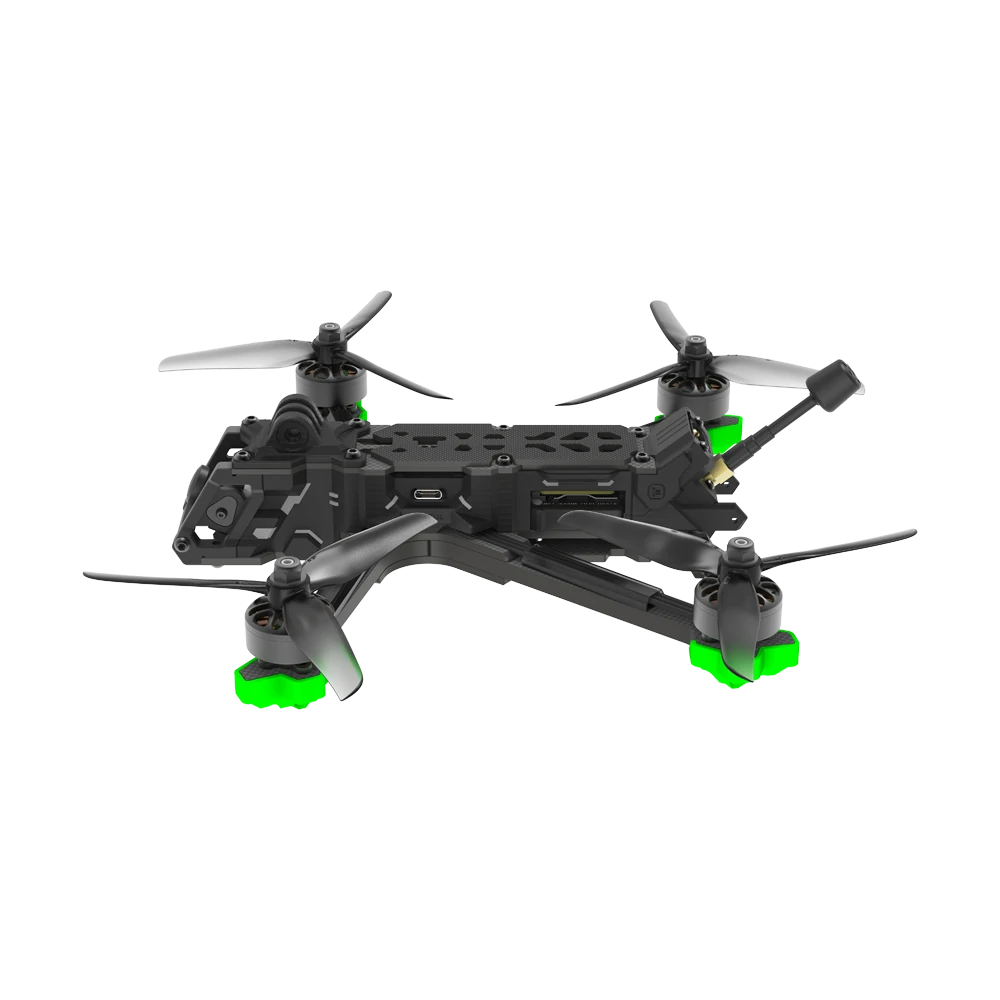

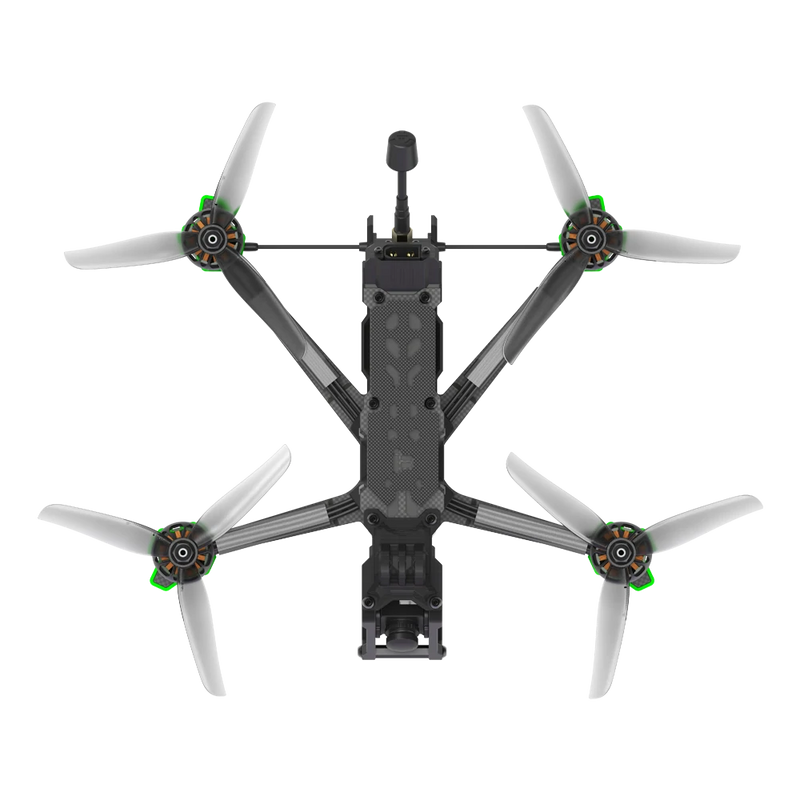

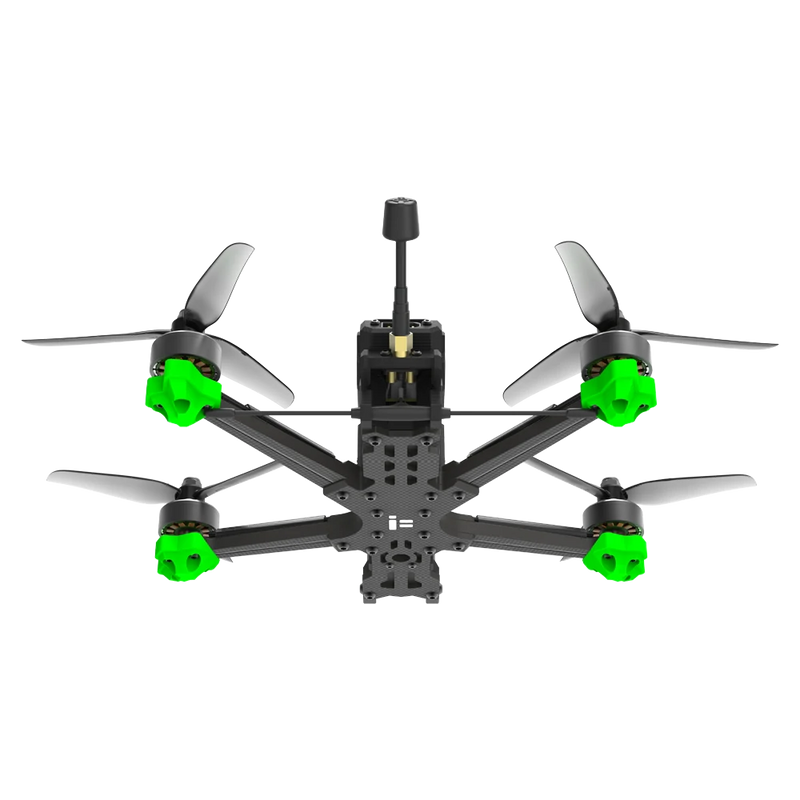

Model: Evoque F5 V2( F5D, DeadCat Type)
Version: Analog / HD ( Optional)
Voltage: 4S / 6S ( Optional)
|
Evoque F5 F5D V2 Analog |
Weight: 445grams Takeoff Weight: Approx. 610 g Dimensions (L×W×H): 190×136×36 mm Diagonal Distance: 225 mm Max Speed: 130 Km/h (Manual Mode) Maximum Takeoff Altitude: 5000 m Max Hover Time: Approx. 8 mins Maximum Flight Distance: 5 km Max Wind Speed Resistance: 100 Km/H (Level 5) Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: Single Antennas |
|
FC // BLITZ Mini F7 Flight Controller （HD & Analog） ( Link) |
MCU: STM32 F722 |
|
ESC // BLITZ Mini E55 4IN1 ESC (HD & Analog) ( Link) |
- DIMENSION: 35*42MM - MOUNTING HOLES: 20*20MM/Φ4MM - WEIGHT: 11.3G - SUPPORTS 2-6S LIPO INPUT - MCU： G071 - CONSTANT: 55 AMPS - BURST: 60 AMPS - CURRENT SENSOR: YES - BEC: NO - CURRENT RATE: 100 - SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC. - FIRMWARE: BLHELI 32 - TARGET: IFLIGHT_BLITZ_G1 |
|
XING-E Pro 2207 Motor ( Link) |
4S Version: 2207 2750KV 6S Version: 2207 1800KV |
| VTX & Camera (HD) | CADDX Nebula Pro Vista HD Digital System |
| VTX & Camera ( Analog) |
VTX: Product Name: BLITZ Whoop 1.6W VTX Camera: RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera |
M8Q-5883 GPS
GPS module: GPSSAM-M8Q
Frequencies: 72 channel
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
Cold start: <29s
Hot start: <2s
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Maximum height: 50.000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 15 x 15 mm
Total dimensions: 20 x 20 x 10.5 mm
Weight: 8g
Input Voltage: 3.3V-5V，current 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
Package included：

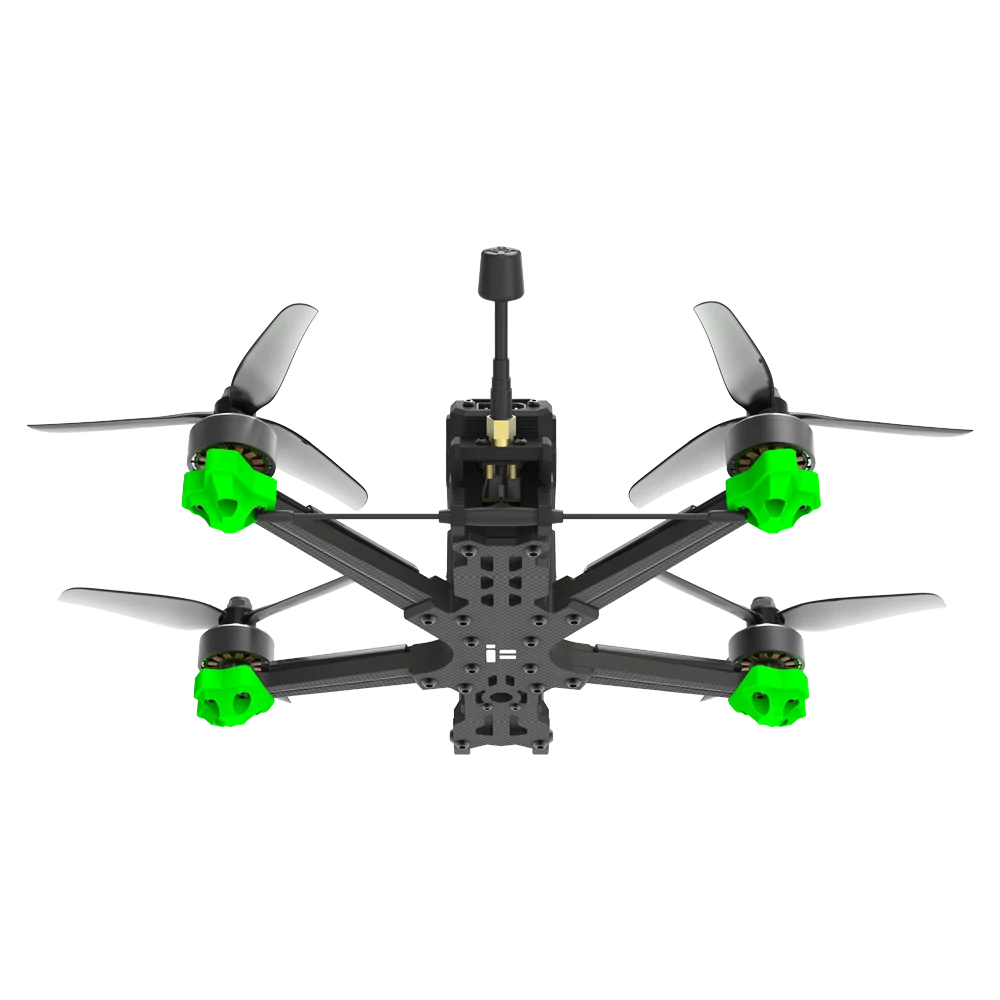

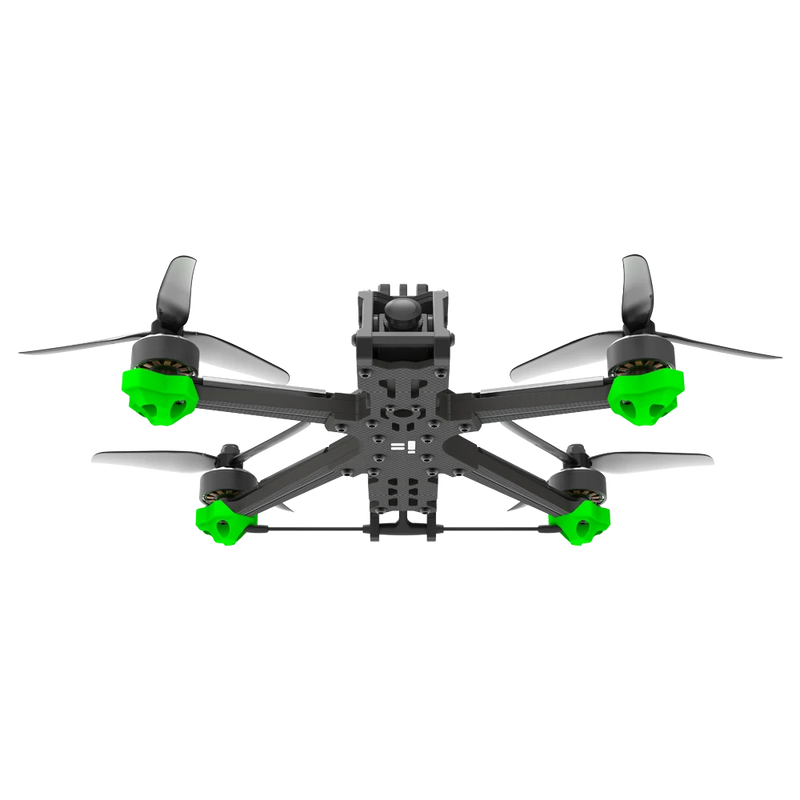

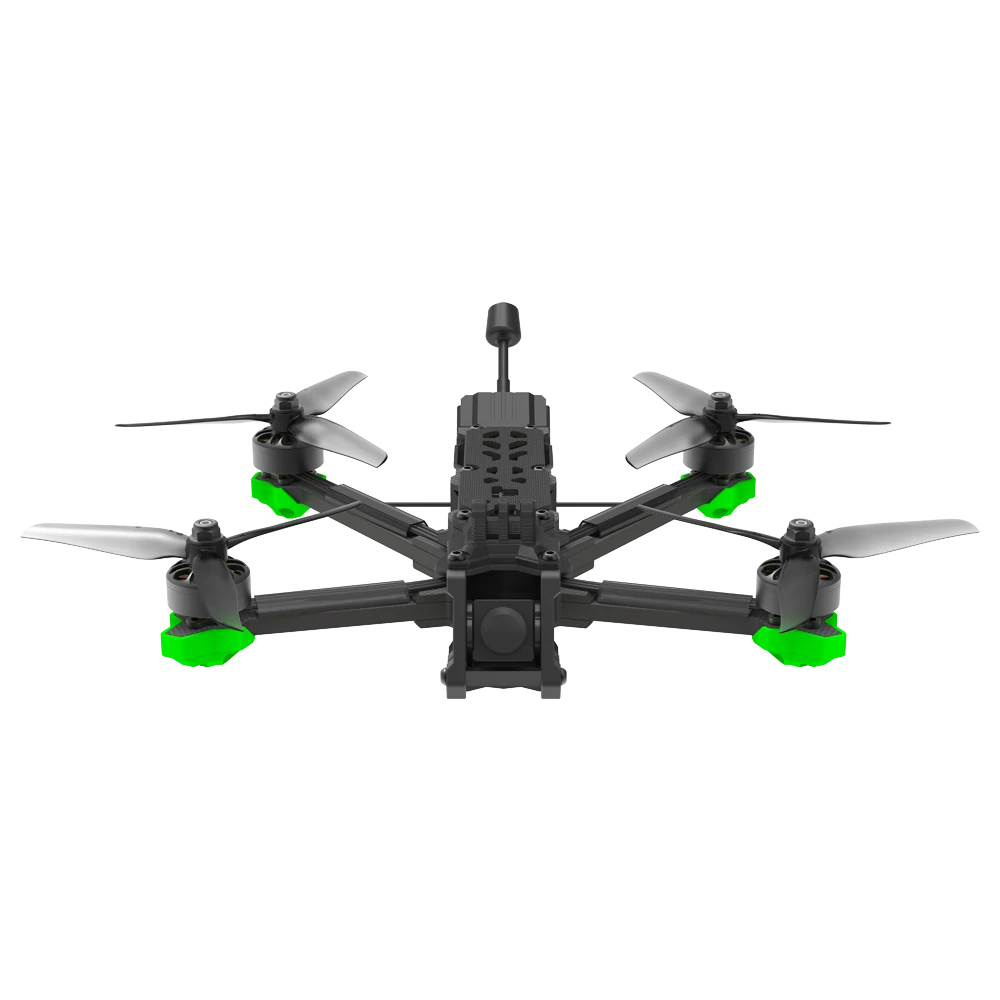

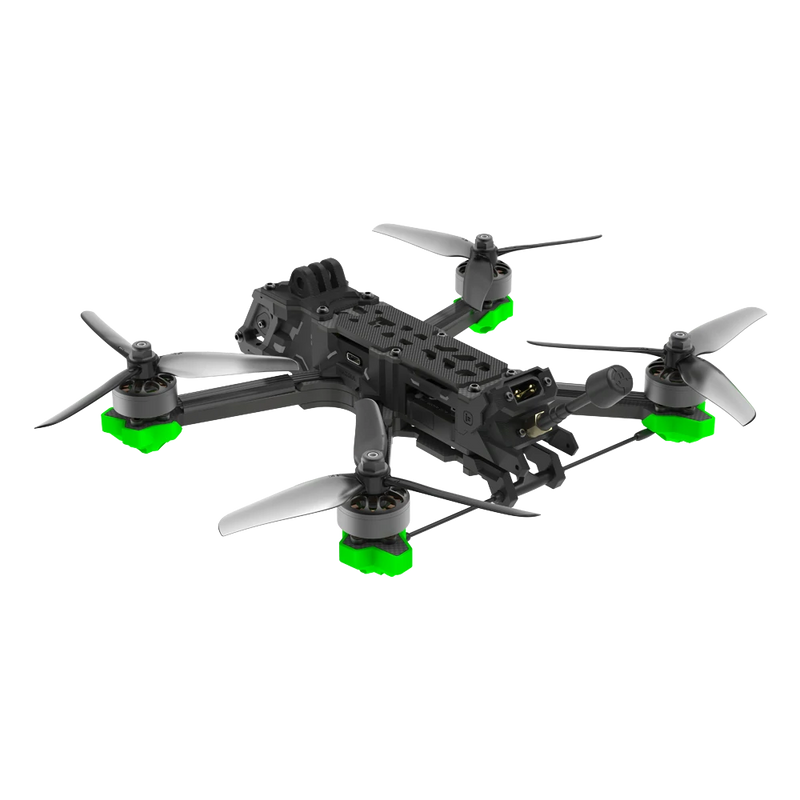

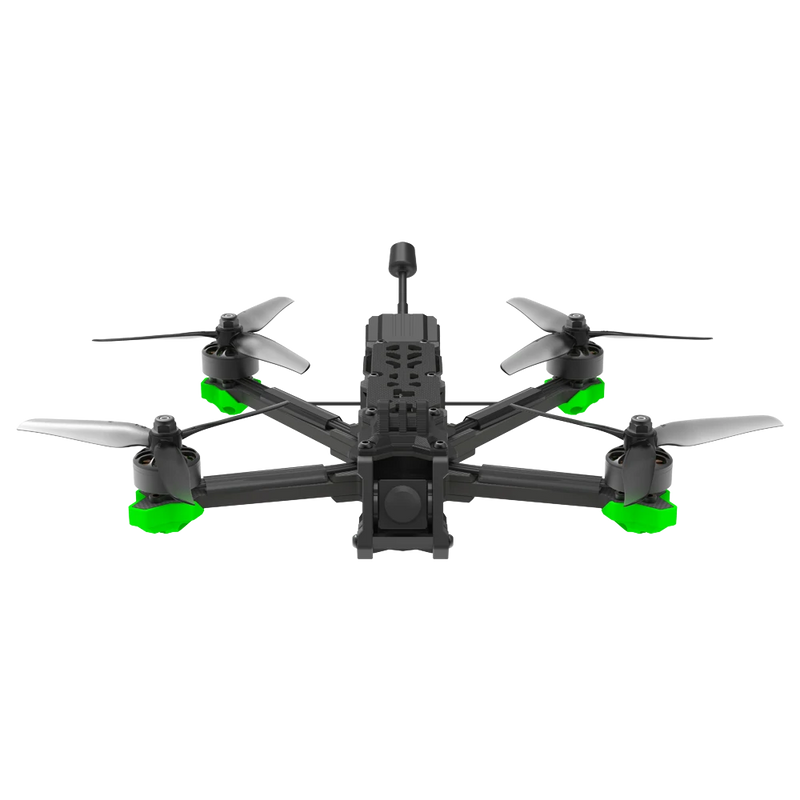

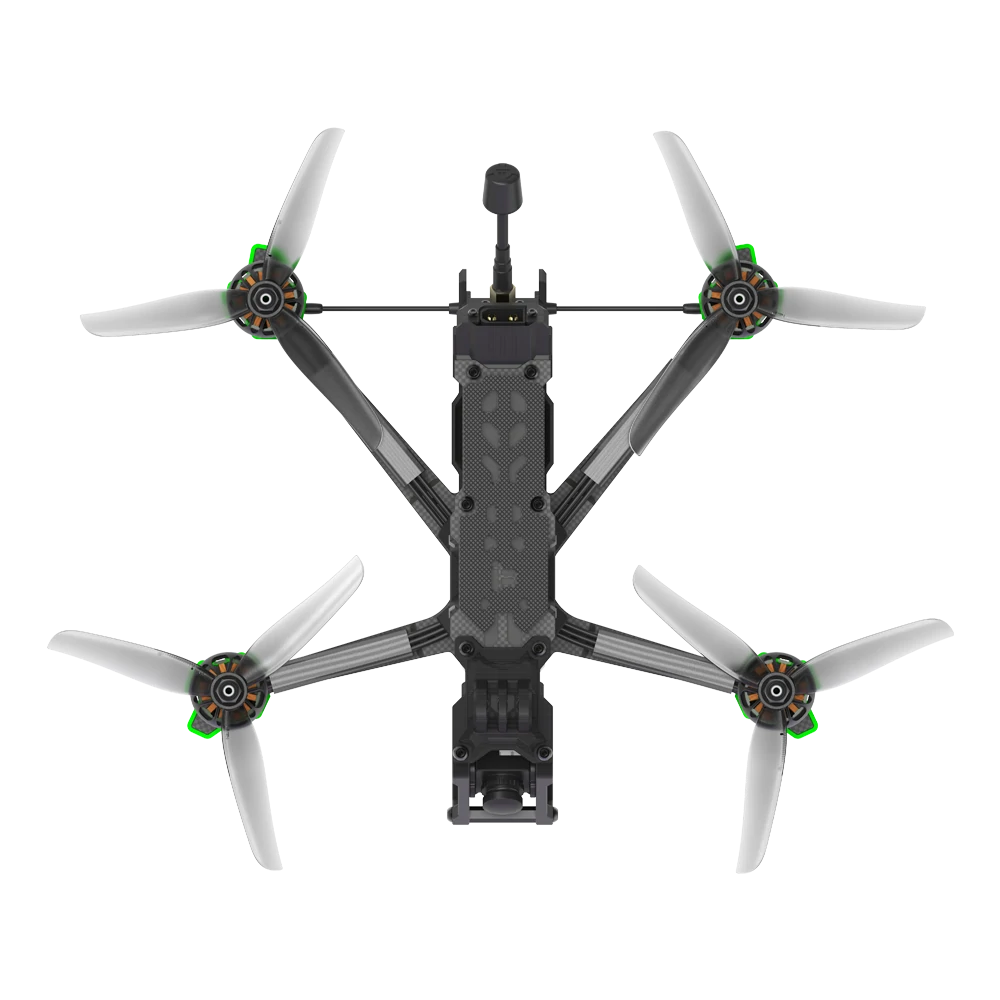

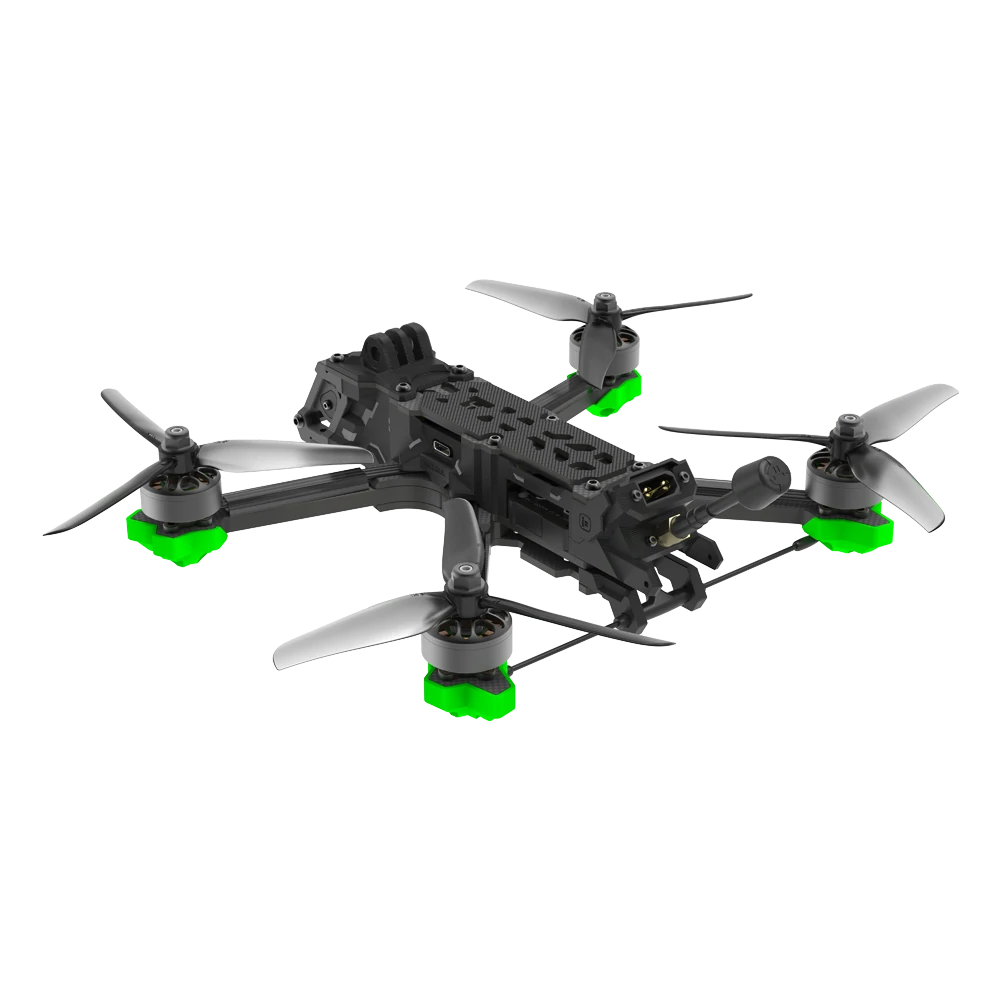

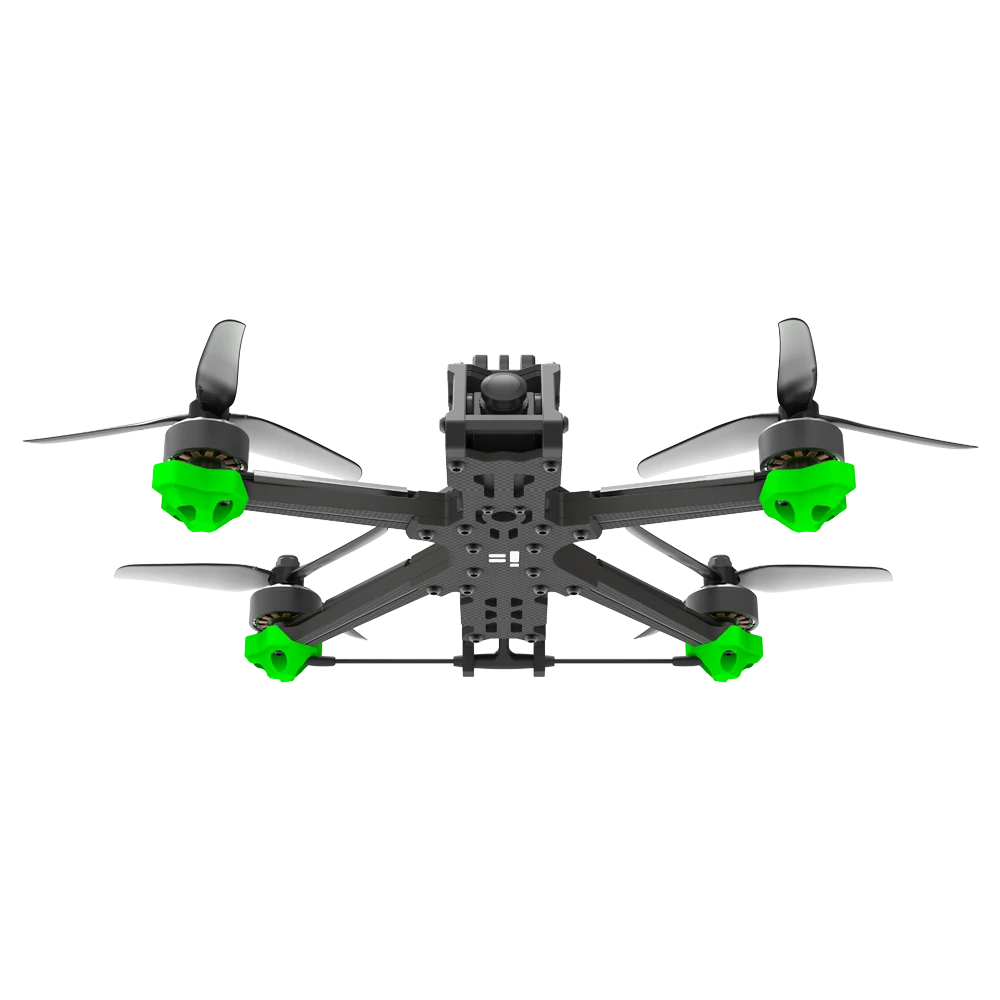

1 x Nazgul5 Evoque F5 V2 F5D HD/Analog FPV Drone (Deadcat)
1x GPS
4 x Nazgul F5 Prop
2 sets of Battery Pads
4 x Battery straps
1 x Screws bag
