Description
Specifications

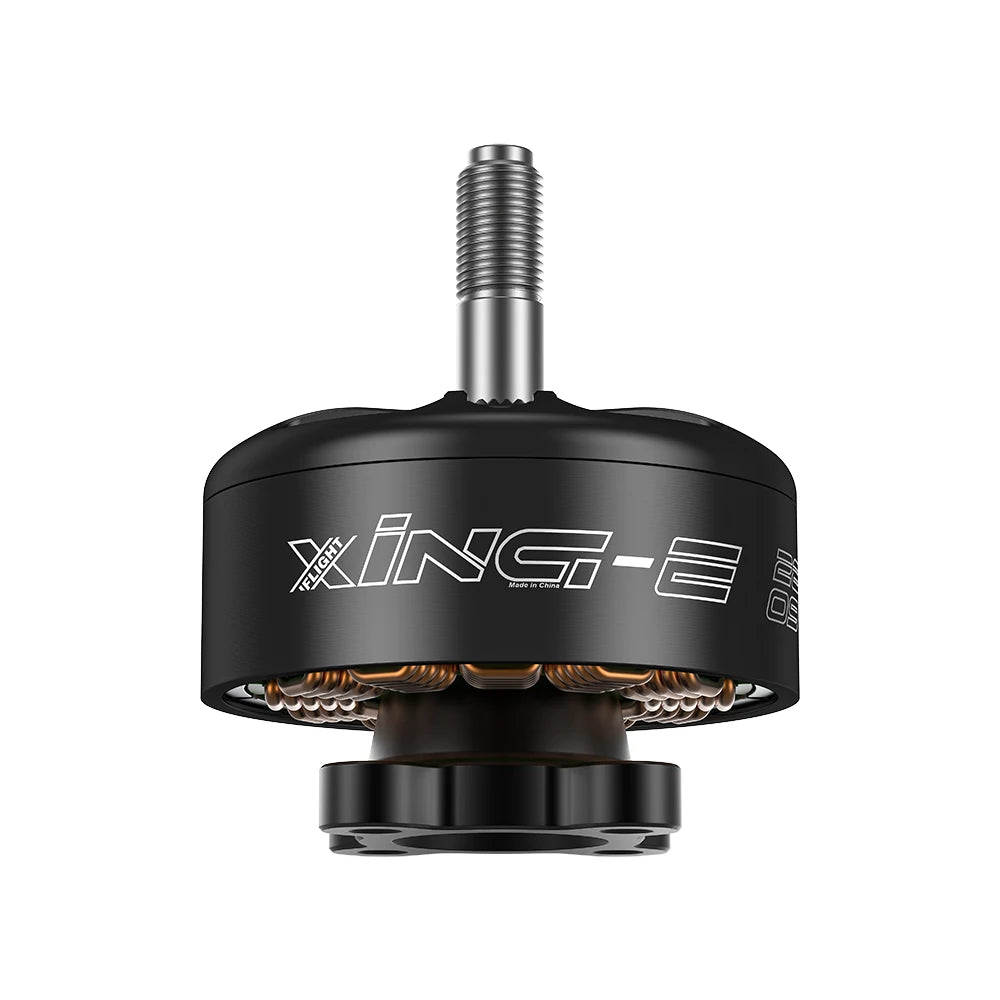

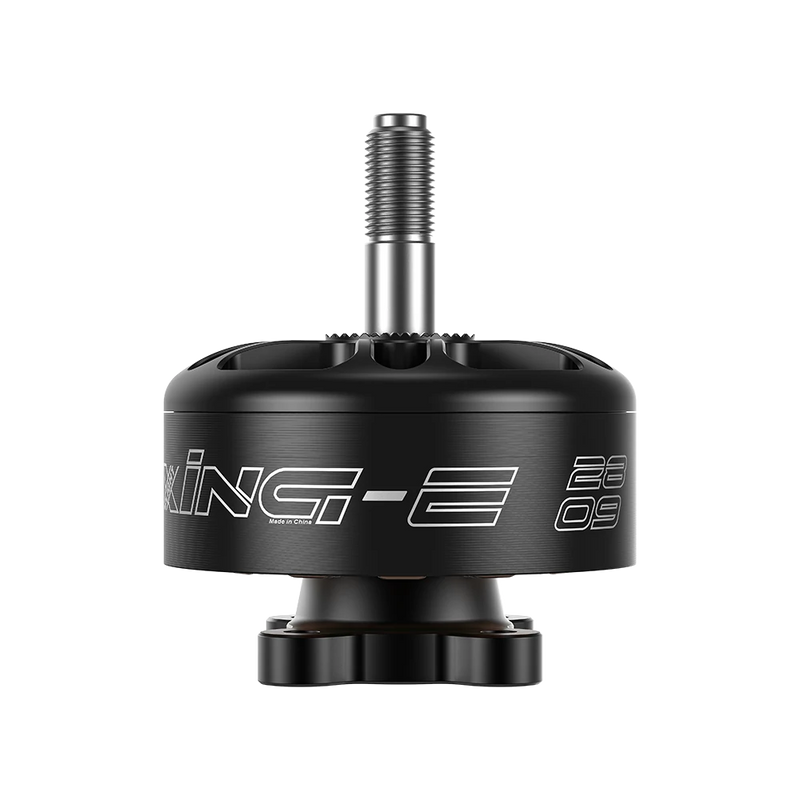

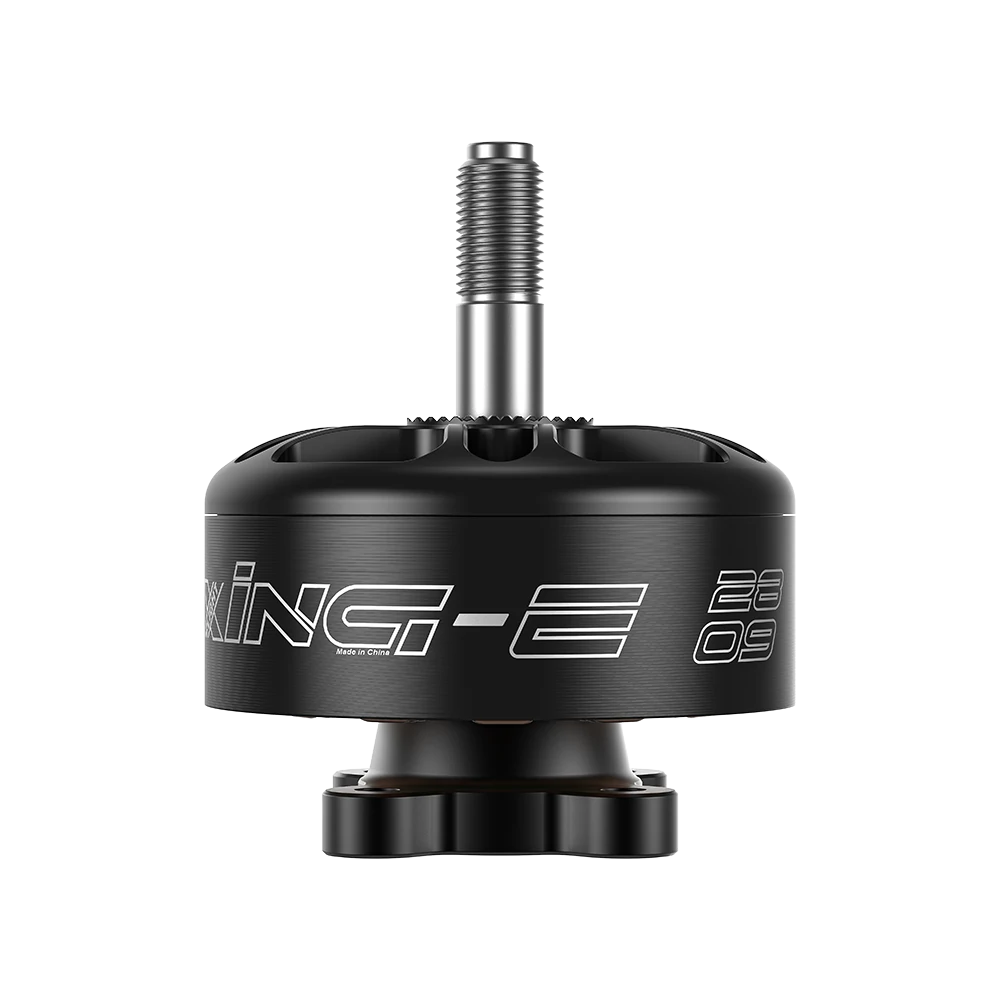

Brand: iFlight
Model: XING-E 2809
Item Name: 2809 800KV 1250KV 24V Cinelifter Motor
KV: 800KV / 1250KV (Optional)
| 800KV Version |
KV: 800KV Weight (including wire): 61g Dimension: φ33.2*23.8mm Interphase Resistance: 129.3mΩ Input Volts: 24V Peak Current: 25.63A Max Watt: 610.3W Mounting Holes: 19*19-φ3mm Rotor Specifications: Segmented bell Shaft Diameter: 5mm Shaft Protruding Length: 15.5mm Lead: 260mm/18AWG Magnet: N52H Curved Configuration: 12N14P Bearing Specs: φ11φ55 Winding: Single strand copper winding |

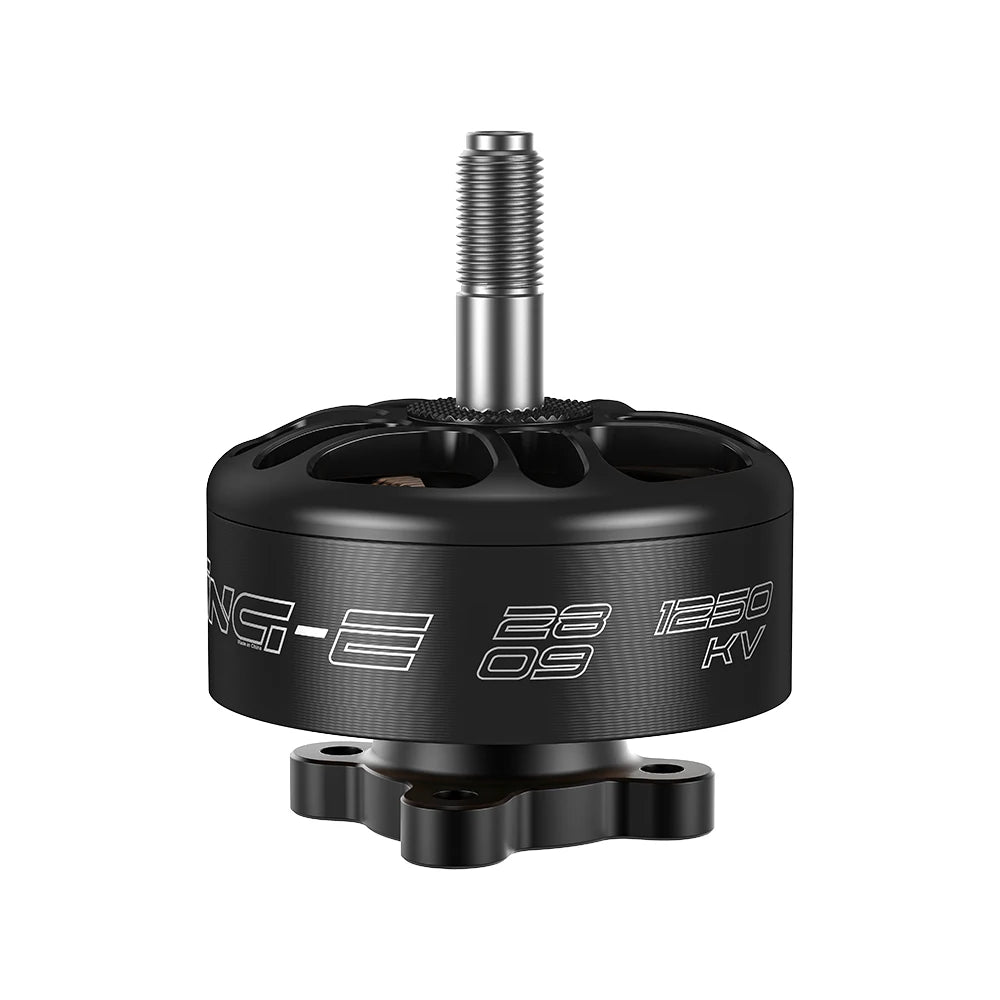

| 1250KV Version |
KV: 1250KV Weight (including wire): 60.4g Dimension: φ33.2*23.8mm Interphase Resistance: 65mΩ Input Volts: 24V Peak Current: 49.23A Max Watt: 1147.1W Mounting Holes: 19*19-φ3mm Rotor Specifications: Segmented bell Shaft Diameter: 5mm Shaft Protruding Length: 15.5mm Lead: 260mm/18AWG Magnet: N52H Curved Configuration: 12N14P Bearing Specs: φ11φ55 Winding: Single strand copper winding |
Features:
Optimized Design: Built specifically for RC multicopter drones, ensuring the best performance in FPV racing.
Robust Construction: Featuring a segmented bell rotor and high-grade N52H curved magnet, assuring longevity and optimal power.
Efficient Power Transfer: The single strand copper winding ensures maximum efficiency and performance.
Easy Installation: Standardized mounting holes and shaft length simplify the installation process.
High Power Outputs: The two models provide distinct power outputs, catering to different racing demands.
Package included:
1x XING E 2809 Motor
4 x M3*10mm screws
1 x M5 Nut
