Description

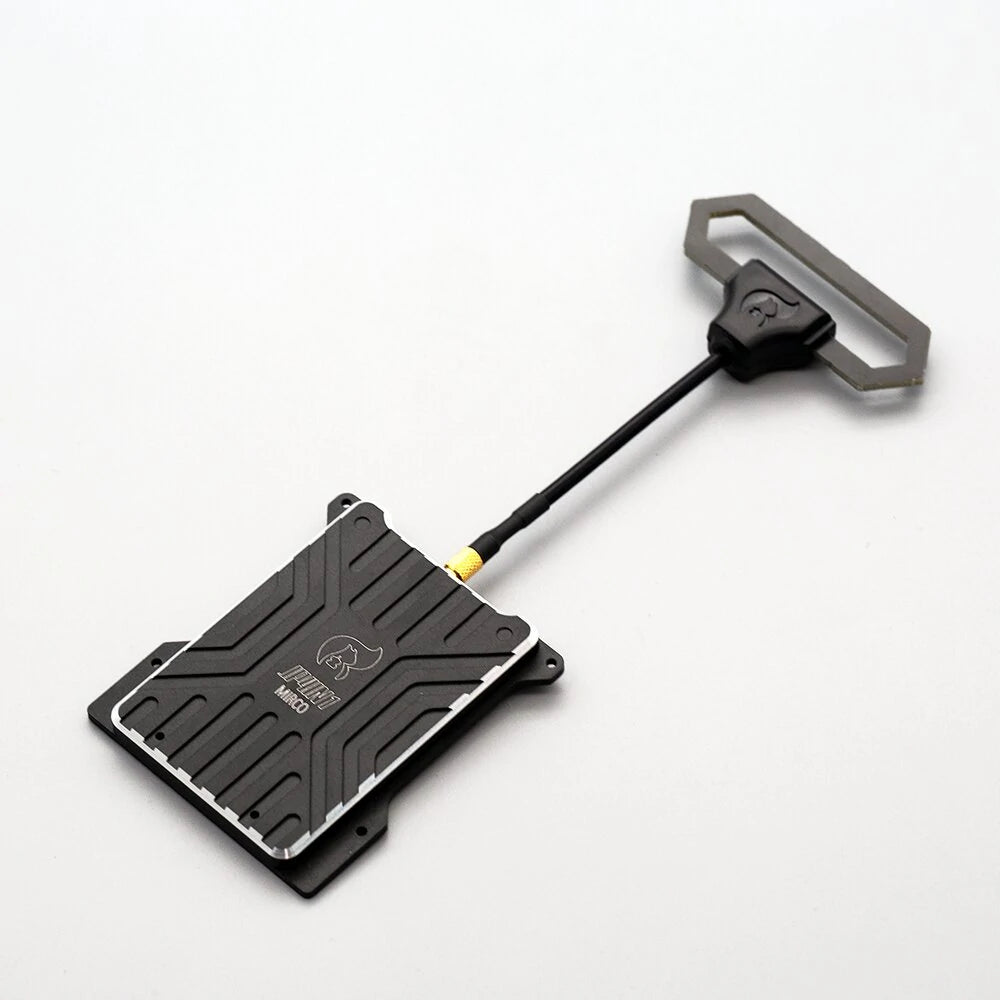

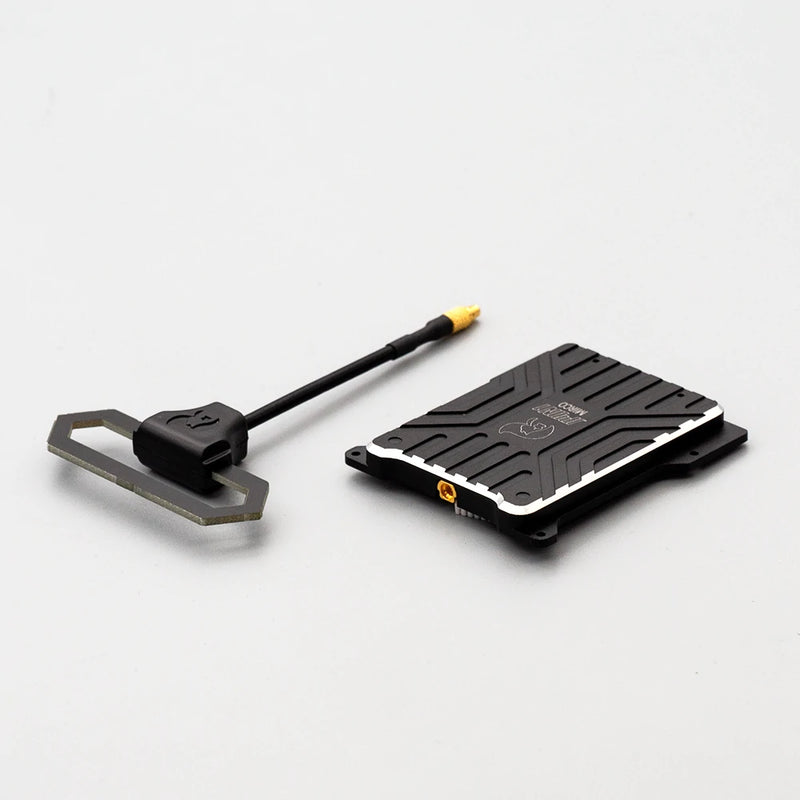

JUMPERRC 2.4GHz JP4IN1 Multi-Protocol CC2500 NRF24L01 A7105 CYRF6936 4-in-1 Micro External TX Module for T20 T20S Radio Transmitter

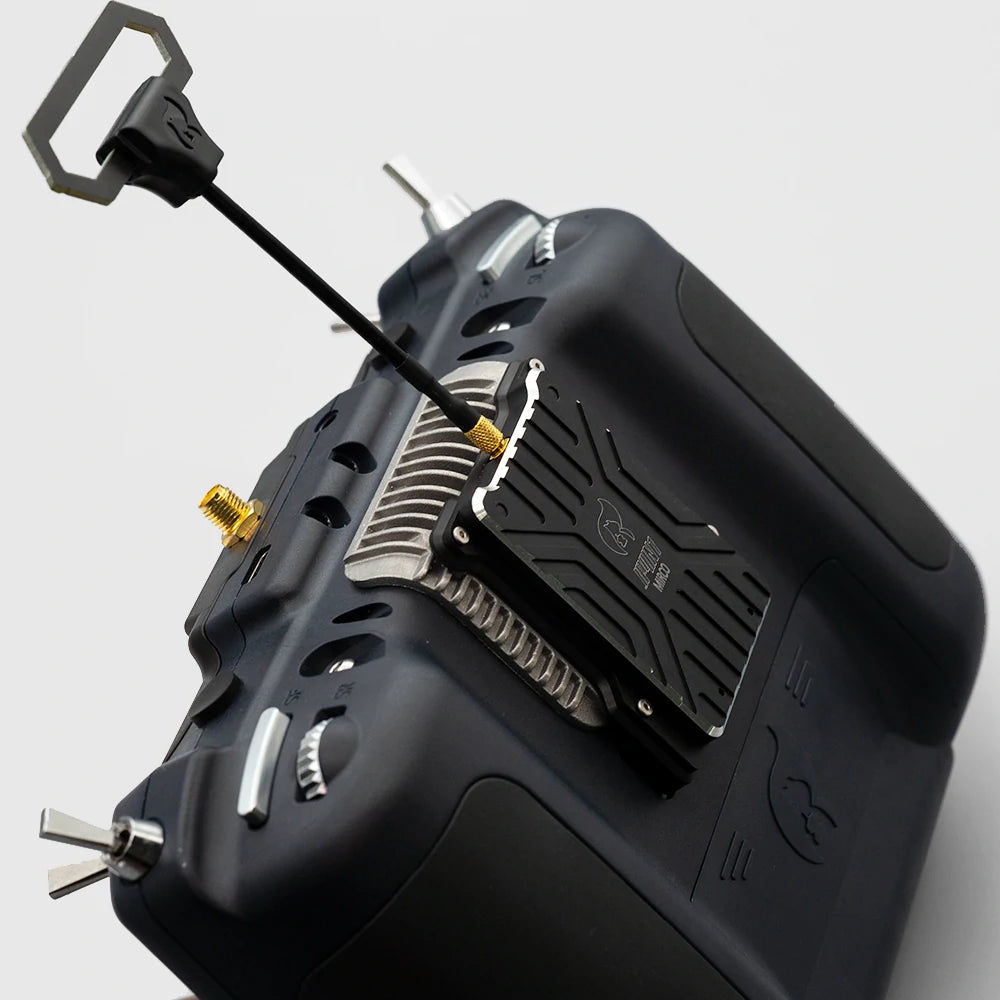

The Jumper JP4IN1 Module features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module is plug and play with Jumper T20
Description:
Brand: JumperRC
Item: JP4IN1 micro transmitter module
Working voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: T20
Net Weight: 42g (including antenna)
Firmware updatable: Yes, via USB.
RF Chip Data
Cyprus Semiconductor CYRF6936: DS M/DS M X, Walkera Devo
Texas Instruments CC2500: FrSky, SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
Link to Github repository: https://github.com/pascallanger/DIY-Multiprotocol-TX-Module
Package included:
1 x Jumper JP4IN1 MICRO Transmitter Module
1 x Antenna
