Description:

1. When using the ESC, the throttle lever of the remote control must be in the middle position, and the fine-tuning function must also be adjusted to the middle position (PWM1500us signal), otherwise the ESC cannot be started. 2. If the motor will automatically rotate after the remote control is connected and the ESC is powered on, it means that the joystick is not in the neutral position, or the fine-tuning function is not in the neutral position. 3. Forward/backward, if the control action is reversed, you can exchange any 2 wires among the 3 wires of the motor and the ESC, or modify the channel reverse setting of the remote control. 4. This product adopts imported components, and the full power test leaves the factory. Can be used for cars, boats, underwater propulsion. Two-way 1:1 power output, no brake, direct reverse, fast , good control linearity.Note: When multiple ESCs are used together, remember to remove the BEC voltage of other ESCs (putThe plastic shell of the middle red wire terminal is positioned to be lifted, just pull it out, and then wrap it with insulation to avoidIf you meets other metal short circuits, it is not recommended to cut it off directly, in case you can plug it back in for separate use in the future. )In this case, there are multiple ESCs, and only one ESC is kept with a complete 3P, and the other ESCs are only 2P with white and black wires.

Yellow line: connect to the signalRed wire: connect to the positive poleBrown wire: connect to the negative pole

Electric currency:	Voltage	BEC:	Size:	Weight

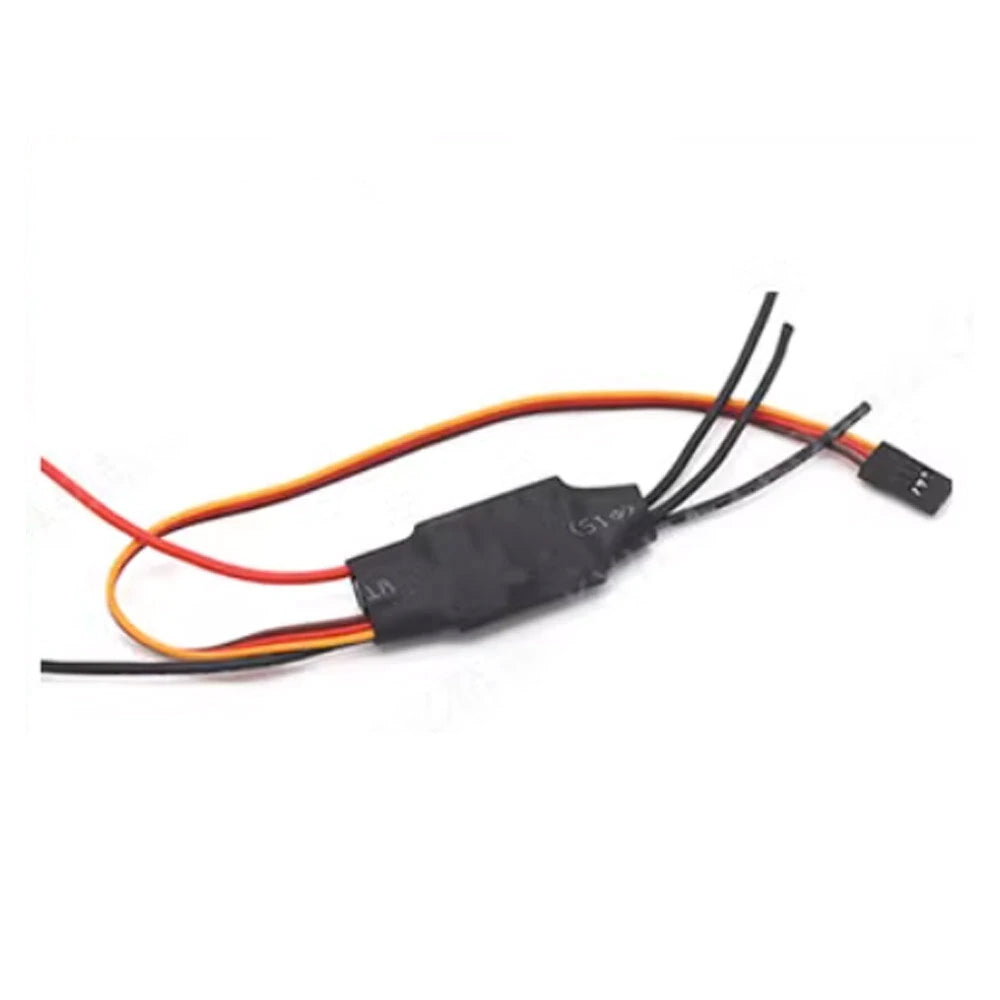

12A	2-3S LIPO	5V 1A	40X20mm	10g

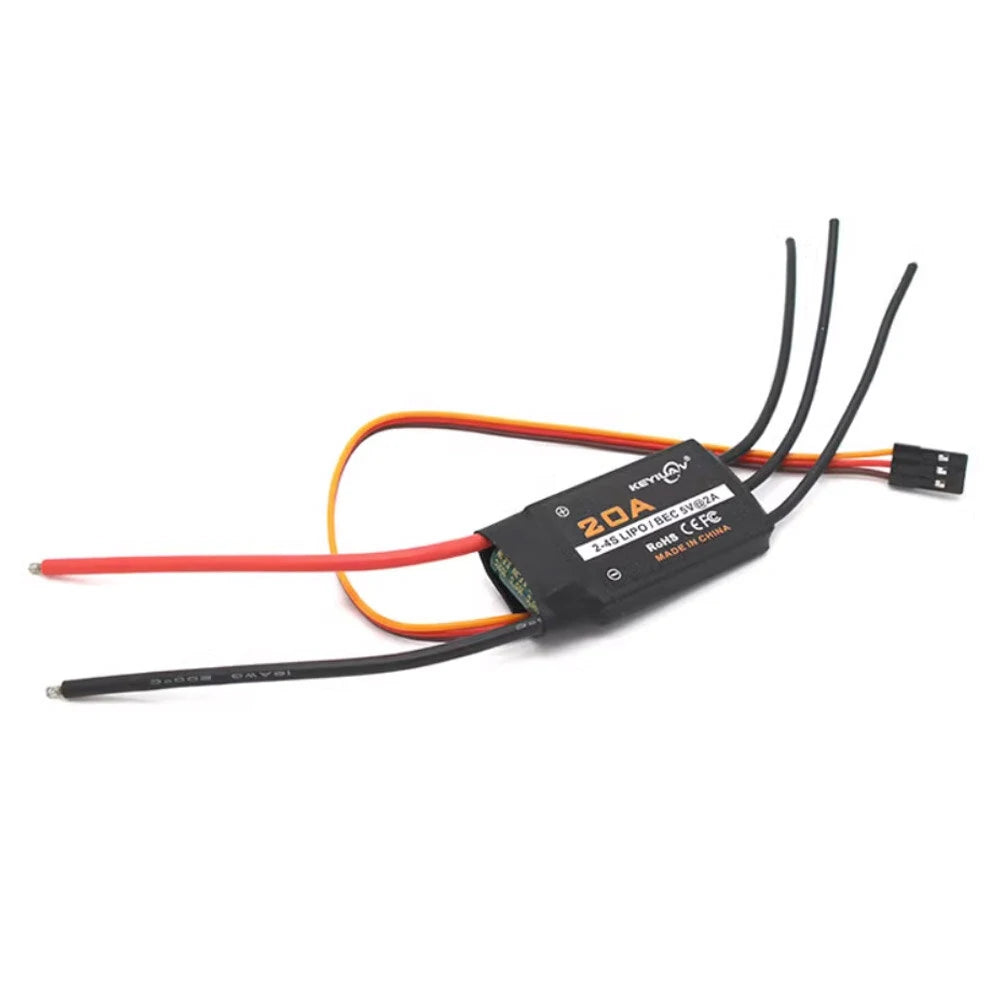

20A	2-4S LIPO	5V 2A	50X26mm	25g

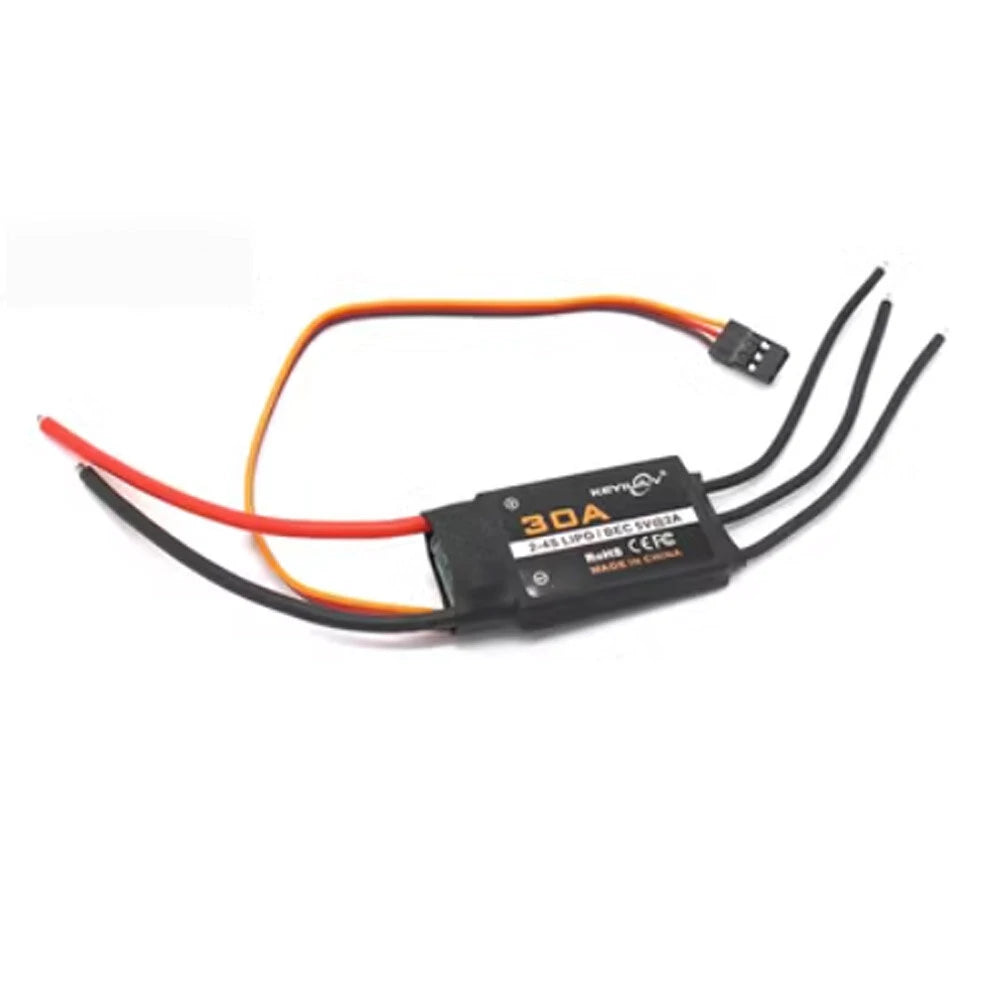

30A	2-4S LIPO	5V 2A	50X26mm	25g

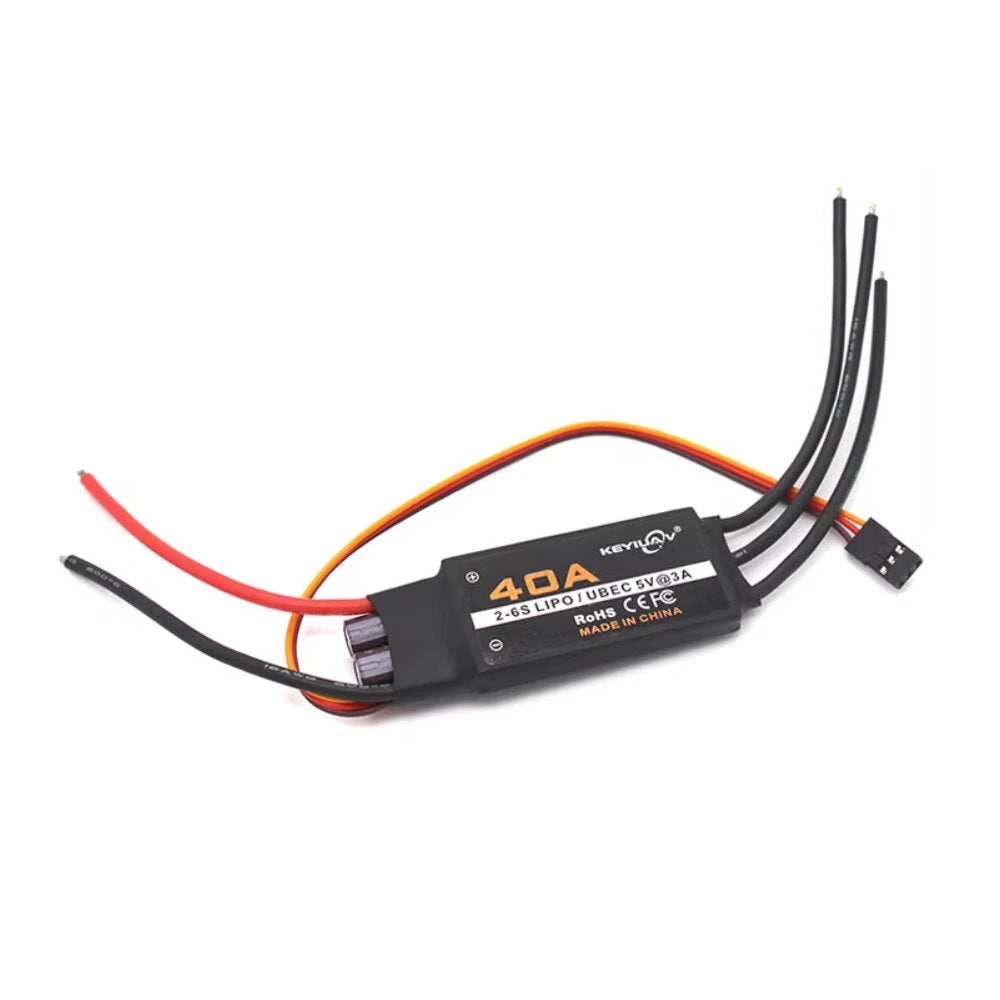

40A	2-6S LIPO	5V 3A	75X28mm	45g

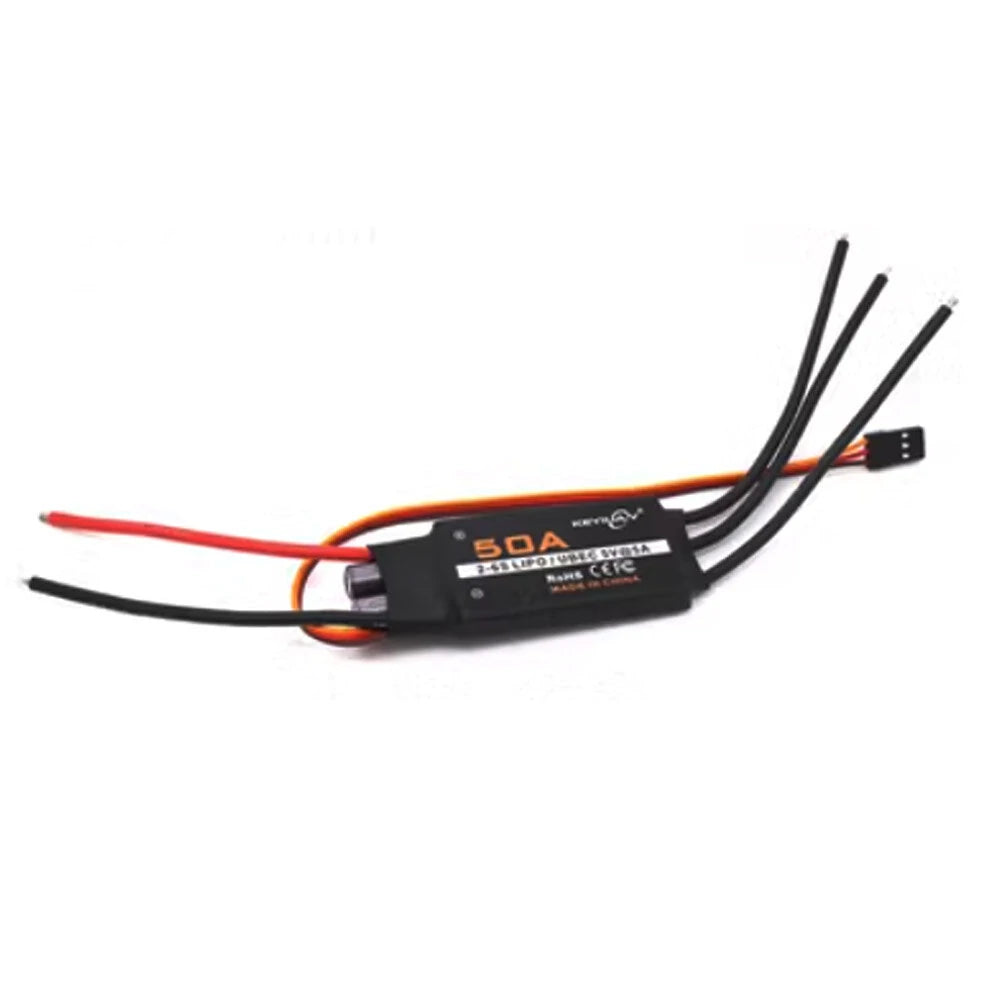

50A	2-6S LIPO	5V 5A	75X28mm	45g

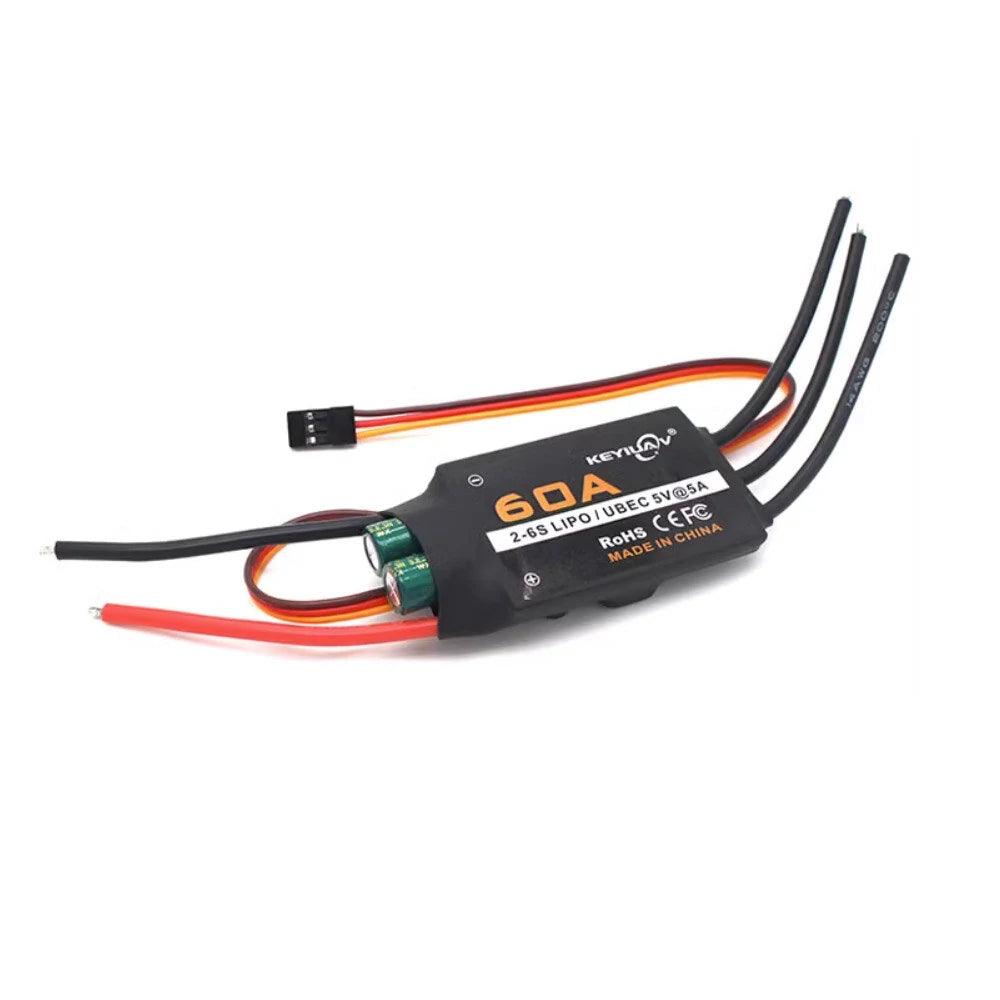

60A	2-6S LIPO	5V 5A	75X37mm	60g

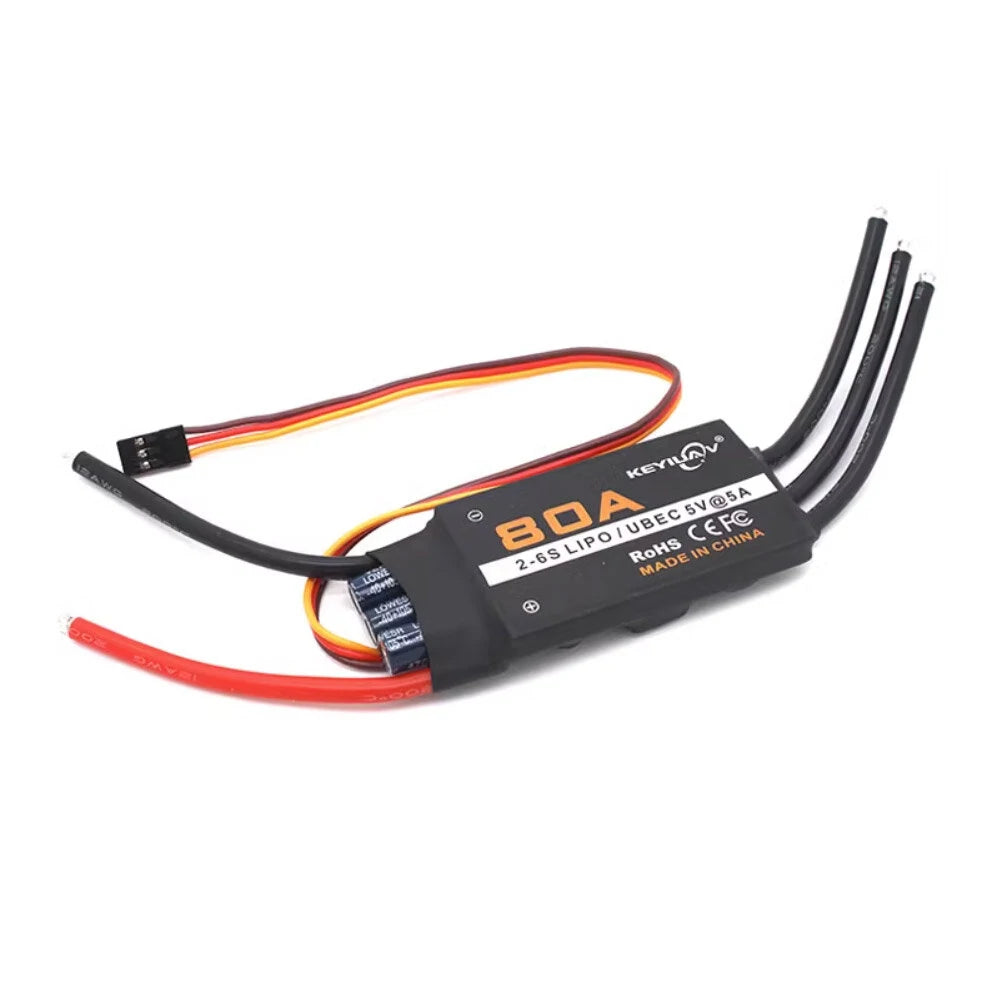

80A	2-6S LIPO	5V 5A	90X38mm	78g

Package Included:

1x ESC
