Features:

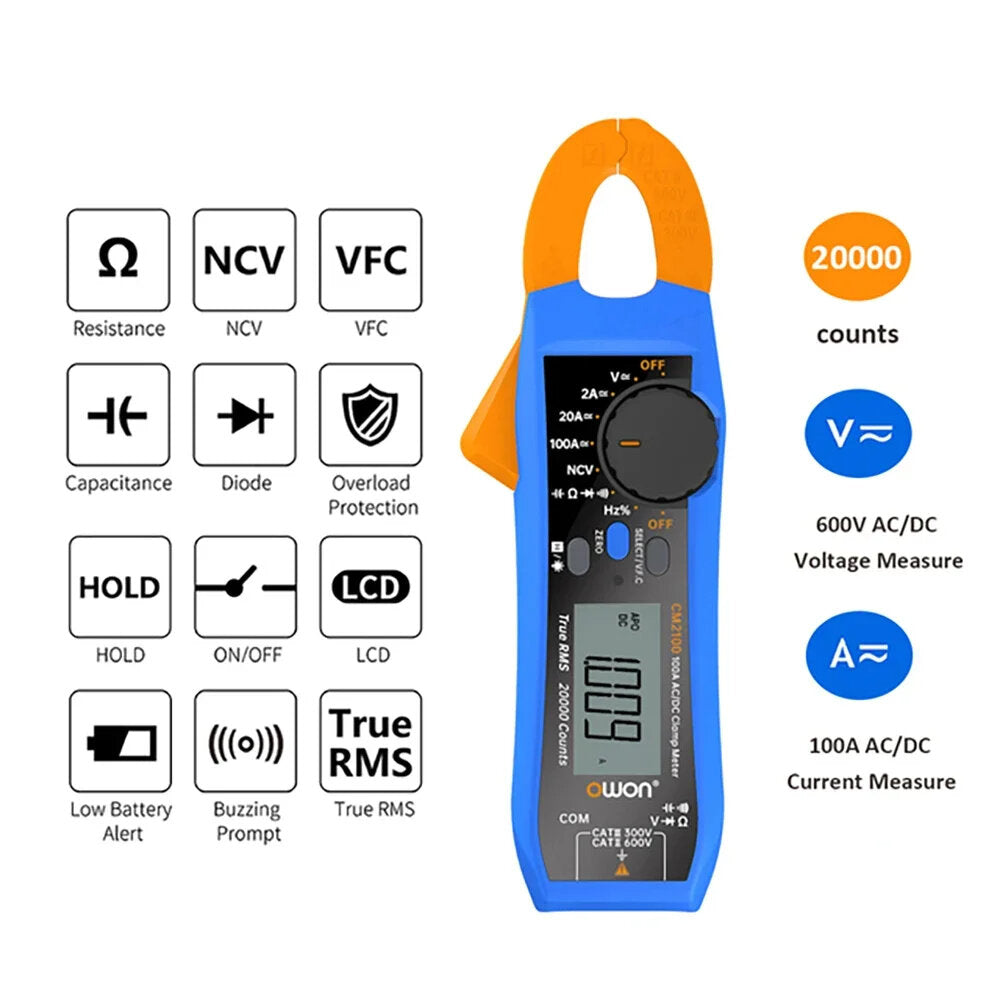

High Precision and True RMS Measurement: The OWON CM2100 and CM2100B digital clamp meters are equipped with True RMS (root mean square) technology, ensuring precise and accurate measurements of AC/DC current and voltage, as well as resistance, capacitance, frequency, and duty cycle. With a high resolution of 20,000 counts, these clamp meters provide detailed data, making them suitable for various complex electrical tasks.



Enhanced Functionality with Bluetooth Connectivity: The CM2100B model comes with Bluetooth communication, supporting both Android and Apple devices. This feature allows for remote viewing and control, enabling users to monitor measurements and adjust settings without being physically present at the testing site. Additionally, the CM2100B supports data recording, analysis, and sharing, making it an excellent tool for collaborative work and detailed documentation.



Versatile Range and Frequency Response: These clamp meters have an impressive frequency response range of 40Hz~1000Hz for AC measurements, allowing for accurate readings in a wide variety of applications. The automatic ranging capability simplifies the measurement process, ensuring that the device selects the appropriate range for each measurement automatically. The VFC (Variable Frequency Control) mode filters out high-frequency interference signals, ensuring precise and stable measurements in environments with electrical noise.



Compact and Portable Design: With dimensions of 182mm x 57mm x 32mm and a weight of 0.2kg (excluding packaging), the OWON CM2100 series is easy to carry and handle, making it ideal for fieldwork and on-site testing. Despite its compact size, it boasts a jaw capacity of 17mm, allowing for the measurement of larger conductors.



Safety and User-Friendly Features: Both models come with an array of safety and convenience features, including non-contact voltage detection (NCV), overload protection, auto power-off, data hold, relative measurement, and low battery indication. The built-in diode and continuity buzzer further extend the functionality, making these clamp meters versatile tools for various electrical testing scenarios.



Specifications:

Product Name: OWON Digital Clamp Meter

	Range	Accuracy
AC Current (A)	2.000A	±(3%+10dig)  in VFC ±（4%+10）
	20.00A	±(2.5%+5dig)  in VFC±（4%+10）
	100.0A /
AC Voltage（V）	2.0000V	±(0.8%+10dig)  in VFC±（4%+3
	20.000V
	200.00V
	600.0V
DC Current (A)	2.000A	±(2%+8dig)
	20.00A	±(2%+3dig)
	100.0A
DC Voltage（V）	20.00mV	±(0.7%+10dig)
	200.00mV
	2.0000V	±(0.5%+5dig)
	20.000V
	200.00V
	600.0V
Resistance（R）	200.0Ω	±(0.8%+10dig)
	2.0000kΩ	±(0.5%+10dig)
	20.000kΩ	±(0.5%+10dig)
	200.00kΩ
	2.0000MΩ
	20.000MΩ	±(1%+10dig)
	200.00MΩ	±(5.0%+10dig)
Capacitance (F)	2.0000nF/ 20.000nF/ 200.00nF/2.0000uF 20.000uF/ 200.00uF / 2.0000mF/ 20.000mF	±(3.0%+10dig)
Frequency (Hz)	200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz	±(0.1%+5dig)
Duty cycle (%)	0.1% - 99.9%( typical：Vrms=1 V, f=1kHz)	±(1.2%+3dig)
	0.1% - 99.9%(≥1 kHz)	±(2.5%+3dig)
General
Display	20000 conuts
