Description
Description:
Brand: Racerstar
Item: 3650 Brushless Motor & 60A ESC
Waterproof Level: Splash-proof

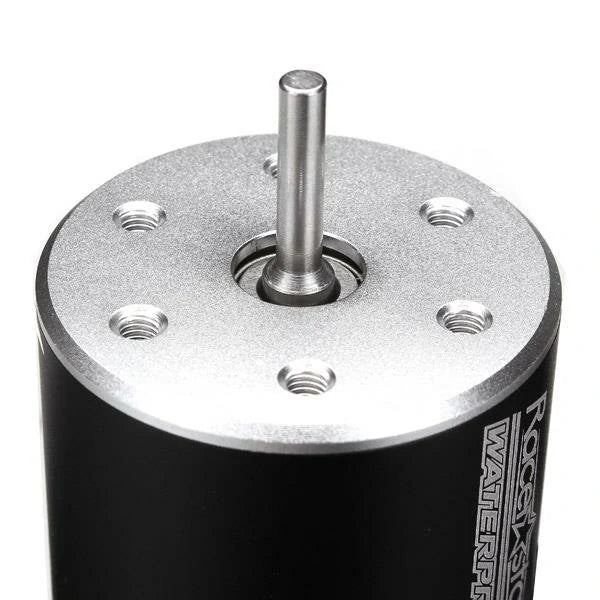

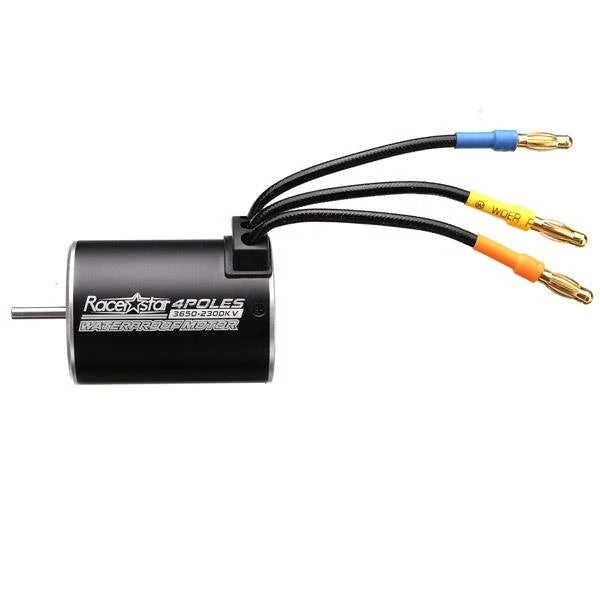

Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Fit for all 1/10 brushless cars; multi-mounting system for M3 screws
- Balanced rotor, smoothness for best reliability and maxium RPM
- Stator- super thin (0.35mm) laminations
- Removalbe/replaceable rotor
- Engineered for maxium energy coversion
Motor Specification:
Watts: 900
Max Voltage: 13V(3900KV), 16V(3100KV), 22V(2300KV), 24V(2050KV)
Max Amps: 69A(3900KV), 56A(3100KV), 41A(2300KV), 38A(2050KV)
Rotor Poles: 4
Max RPM: 50000
Length: 50mm
Diameters: 36mm
Weight: About 180g
Shaft: 3.17mm
Length of Extend Shaft: 15mm

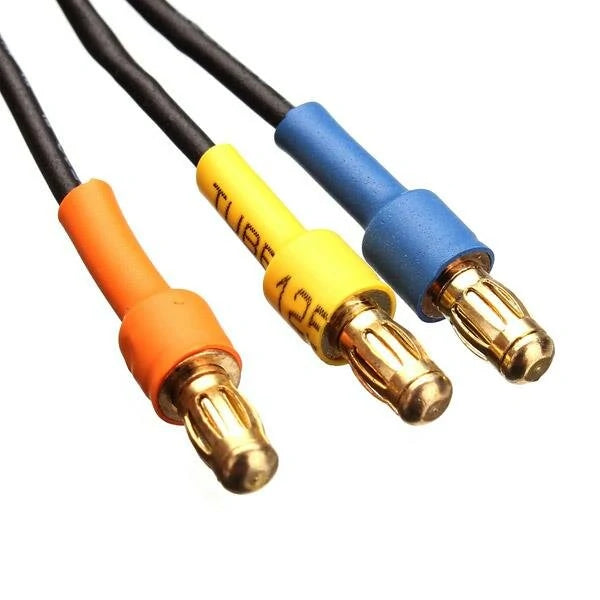

Connector: 4.0mm Gold

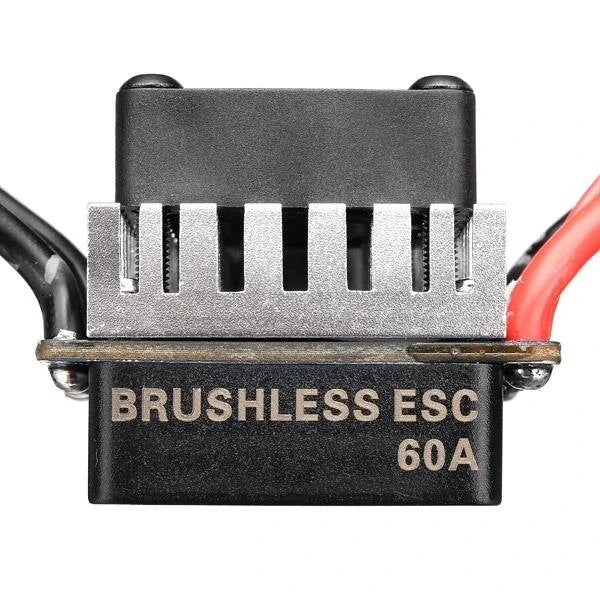

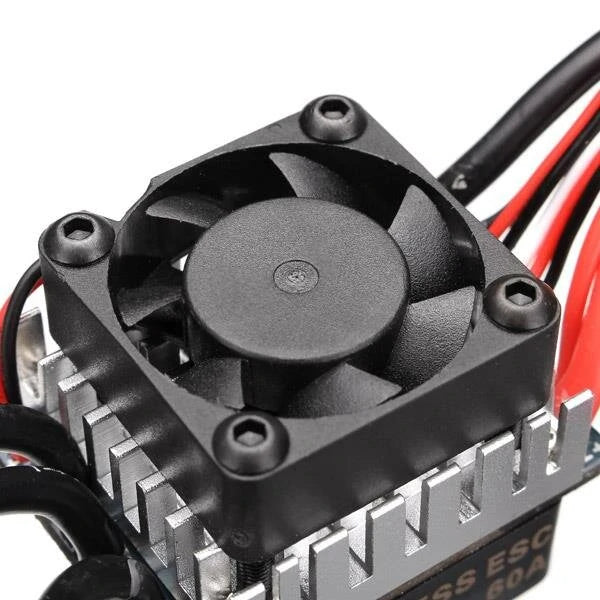

ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card
ESC Specifications:
For ESC program card, please click

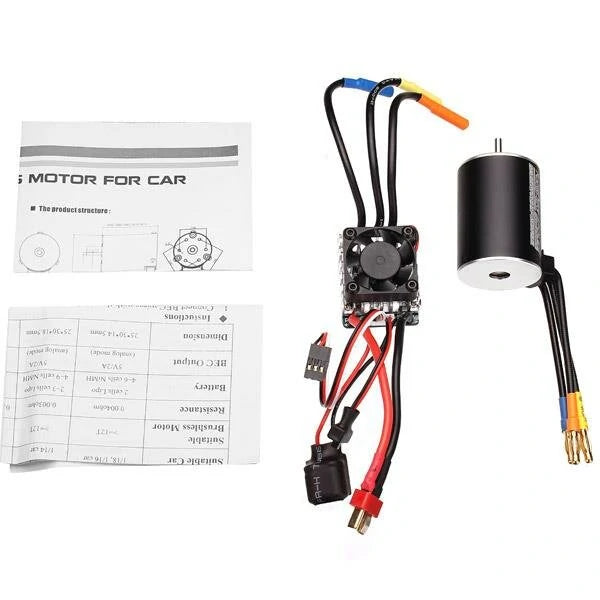

Package Included:
1 X Motor
1 X ESC
2 X Instruction
Brand: Racerstar
Item: 3650 Brushless Motor & 60A ESC
Waterproof Level: Splash-proof
Motor Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Fit for all 1/10 brushless cars; multi-mounting system for M3 screws
- Balanced rotor, smoothness for best reliability and maxium RPM
- Stator- super thin (0.35mm) laminations
- Removalbe/replaceable rotor
- Engineered for maxium energy coversion
Motor Specification:
Watts: 900
Max Voltage: 13V(3900KV), 16V(3100KV), 22V(2300KV), 24V(2050KV)
Max Amps: 69A(3900KV), 56A(3100KV), 41A(2300KV), 38A(2050KV)
Rotor Poles: 4
Max RPM: 50000
Length: 50mm
Diameters: 36mm
Weight: About 180g
Shaft: 3.17mm
Length of Extend Shaft: 15mm
Connector: 4.0mm Gold
ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card
ESC Specifications:
| Model | 25A | 35A | 45A | 60A | 80A | 120A |
| Cont. Current/ Burst Current |
25A/100A | 35A/120A | 45A/180A | 60A/320A | 80A/480A | 120A/600A |
| Motor Type | Sensorless Brushless Motor | |||||
| Suitable Car | 1/18, 1/16 | 1/18, 1/16, 1/14 | 1/10 | 1/10 | 1/8 | 1/8 |
| Suitable Brushless Motor | ≥12T | ≥12T | ≥9T | ≥9T | ≥5.5T | ≥3.5T |
| Resistance | 0.004ohm | 0.003ohm | 0.0014ohm | 0.0007ohm | 0.0005ohm | 0.00035ohm |
| Battery | 2 cells Lipo 4-6 cells NiMH |
2-3 cells Lipo 4-9 cells NiMH |
2-3 cells Lipo 4-9 cells NiMH |
2-3 cells Lipo 4-9 cells NiMH |
2-4 cells Lipo 4-12 cells NiMH |
2-6 cells Lipo 4-18 cells NiMH |
| BEC Output | 5V/2A (analog mode) |
5V/2A (analog mode) |
5.8V/3A (switch mode) |
5.8V/3A (switch mode) |
6.1V/3A (switch mode) |
6.1V/3A (switch mode) |
| Dimension | 25*30*14.5mm | 25*30*18.5mm | 32.5*34*24mm | 32.5*34*24mm | 41*51*36mm | 41*51*36mm |
| Waterproof Level | Splash-proof | |||||
For ESC program card, please click
Package Included:
1 X Motor
1 X ESC
2 X Instruction
