Description
Notice: ESC change into 60A.
Aug. 28th, 2024. BeiJing Time
| New ESC Version |
|
Con. Current: 60A Burst Current: 80A Input Voltage: 3-6S Lipo BEC Output: 5V 0.6A Firmware: Hobbywing_XRotor_BL_S Size: 52x42x16mm Weight: 15g Application: for 130-300mm FPVs - Support Oneshot42/125/ Multishot/ DShot150/300/600/1200 |
Specifications:
Dimension: 37*37mm(1.46”*1.46”)
Weight: 12.2g(0.43oz), 42.8g(1.5oz when all the connect wires included)
Processor: HC32F4A0PITB
Gyro & Accelerometer: BMI323
Barometer: SPL06
FRAM: 128M, can store 2617 waypoints for multi-copters
Buzzer: 1
Switch: None
Type: Combining socket interfaces and soldering pads, Support DJI/CADDX HD Digital Video Transmission Plug-and-play
ESC Connector: 10PIN ESC connector, support voltage and current monitor, and ESC telemetry
BEC: 5V&12V Dual BEC Built-in
Channel Output: 12 channels Output
Mavlink UART: 2(without CTSRTS)
USB Port: 1(Type-C)
GPS UART/I2C Port: 1
RC In Signal Input: PPM/SBUS
RSSI Output: Support
OSD Module: OSD Module Integrated
ESC Protocol: PWM, DShot, and OneShot Protocol
DShot/OneShot Protocol: Support
RTK: Support
Redevelopment: Support
Input Voltage: 2-6S
Input Current: 5A
Adaptable Models: 2-8 Copters
USB Voltage: 5V±0.3V
Operating Voltage: -30~85℃
Features:
1.Compact Size: 30.5mm*30.5mm, perfect for easy installation and space-saving.
2.Powerful Performance: Equipped with a 12-channel flight control system for smooth and stable flights.
3.Digital Transmission Support: The domestic chip enables clear and stable digital transmission for a better FPV experience.
4.Reliable ESC: Comes with a high-quality 60A electronic speed controller for efficient control and safety.
5.Versatile Usage: Ideal for children and toy enthusiasts who love flying drones with enhanced features.

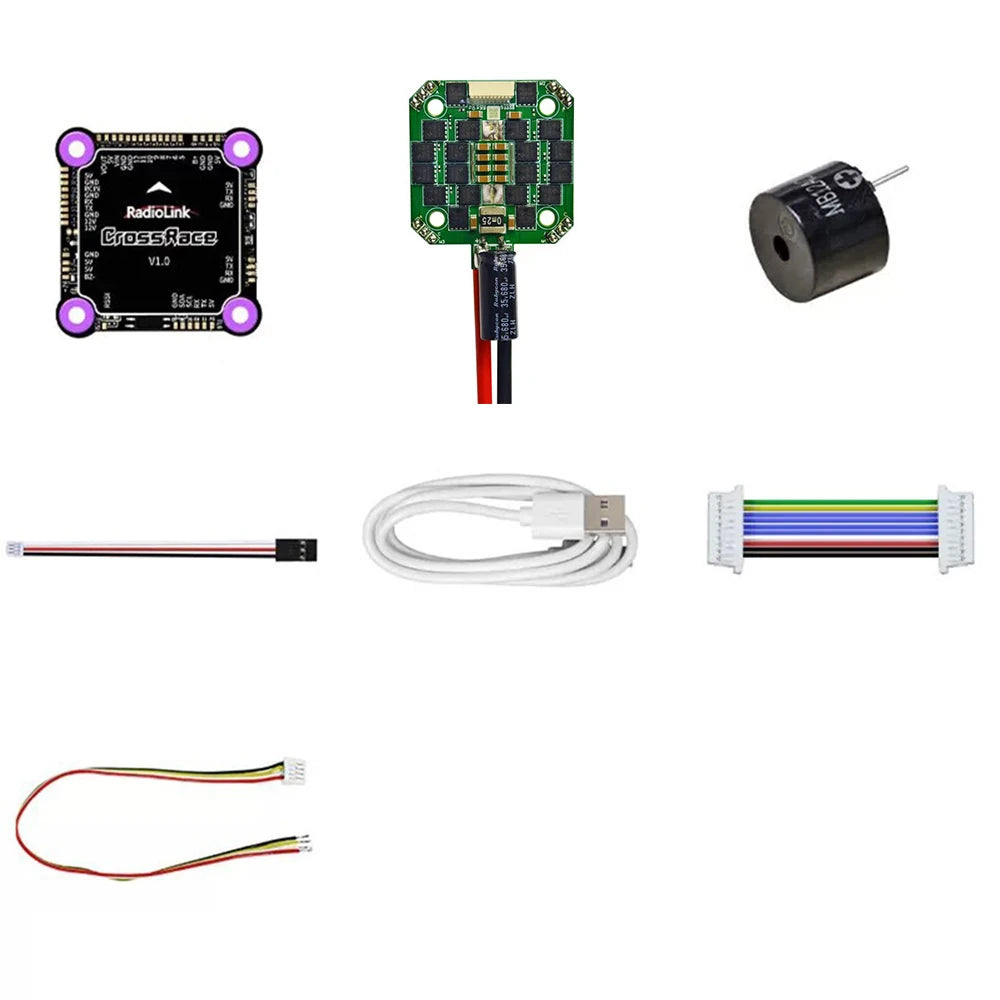

Package Included:
| Flight Controller Module Version |
1x CrossRace 1x Buzzer(Need to be Soldering) 2x TELEM1&2 Ports Connect Cable 1x USB Cable(Upgrade or Setup) 1x Four-in-one ESC Connect Cable 1x Packing Box 1x Receiver Connect Cable |
|
FC + ESC Version |
1x CrossRace |
