Description
Overview:
Brand Name: SunnySky

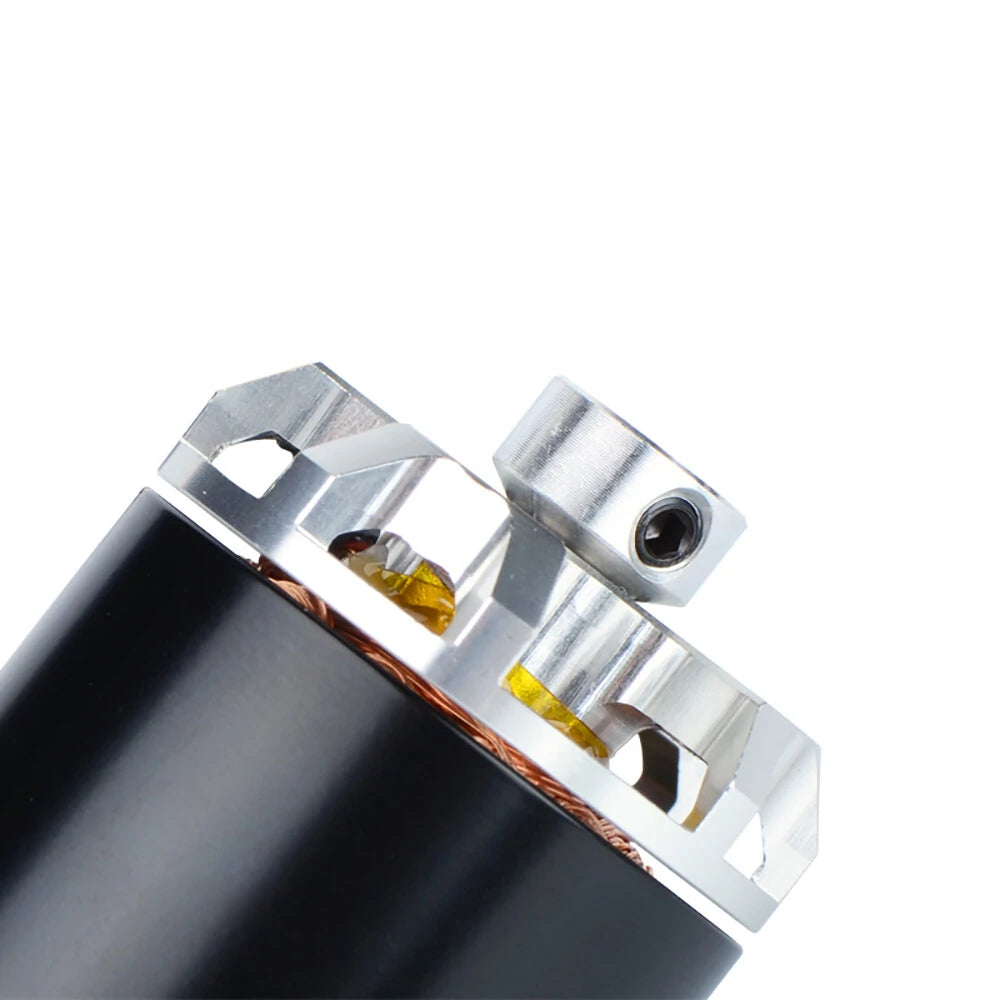

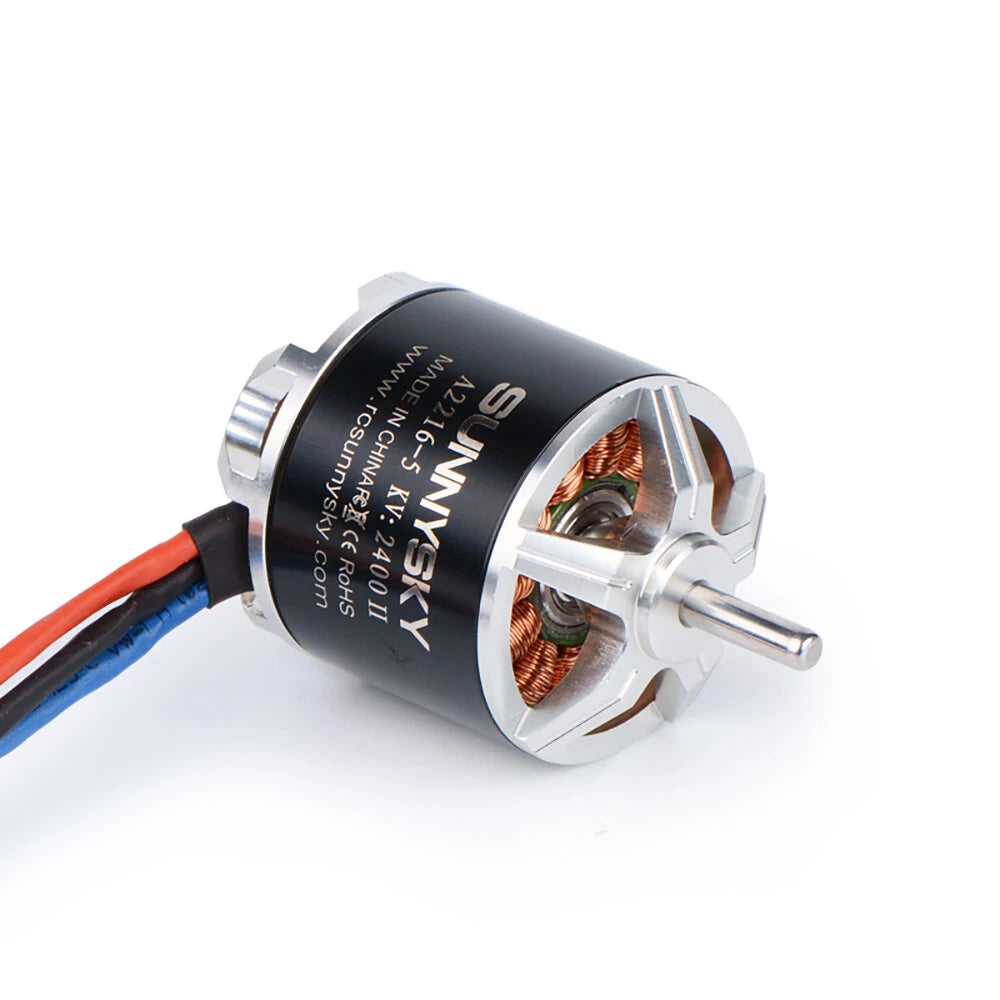

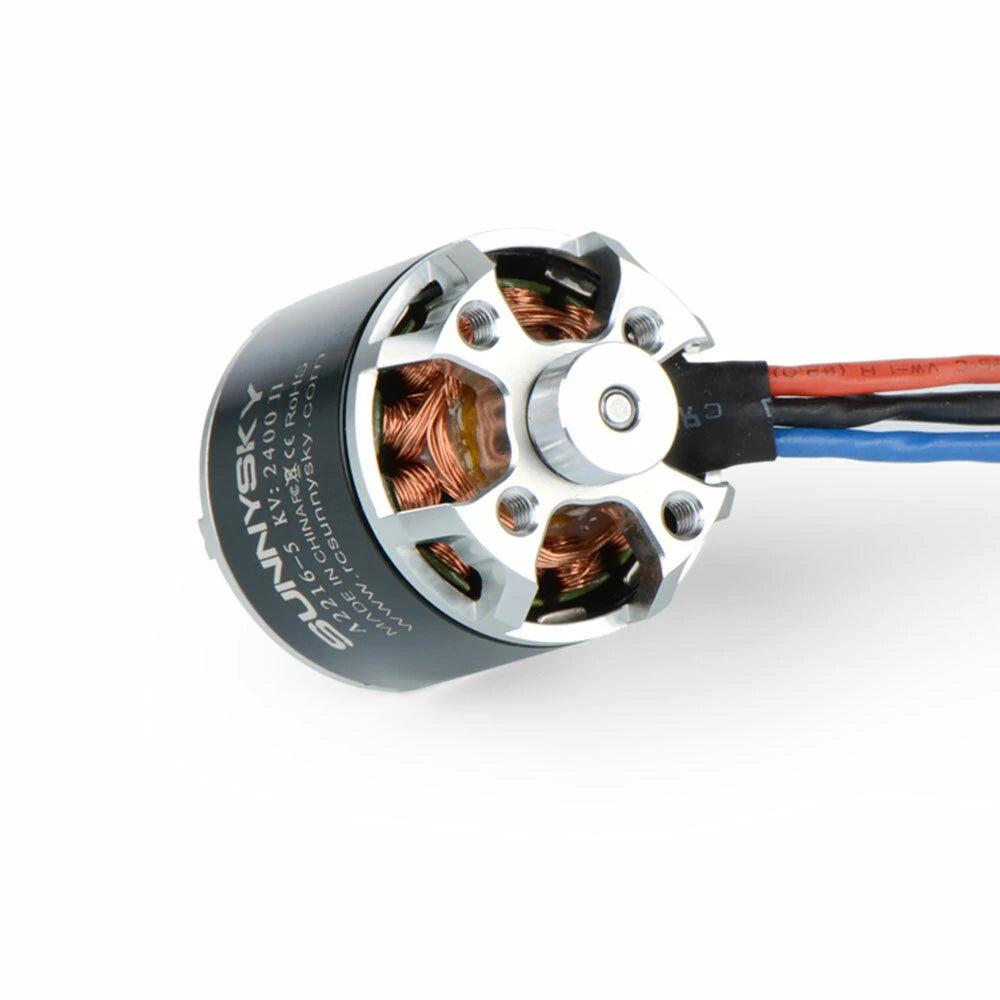

Item Name: A2216
KV: 880KV, 1250KV, 1400KV, 2400KV (optional)
Specifications:
| KV | KV880 |
KV1250 |
KV1400 |
KV2400 |
| Poles | 12N14P |
12N14P |
12N14P |
12N10P |
| Interphase Internal Resistance |
112mΩ |
66mΩ |
32mΩ |
28mΩ |
| Motor Length | 34mm |
34mm |
34mm |
34mm |
| Shaft Diameter |
27.7mm |
27.7mm |
27.7mm |
27.7mm |
| Motor Weight (including wire) |
68g |
67g |
71g |
65g |
| Rated Working Voltage (Lipo) |
3-4S |
3-4S |
3-4S |
3-4S |
| No-load Current |
0.5A |
0.9A |
1.2A |
1.6A |
| Maximum Continuous Power |
370W |
487W |
425W |
437.5W |
| Maximum Continuous Current |
22A/30s |
29A/30s |
34A/30s |
35A/30s |
| Recommended ESC |
30A |
30-40A |
30-40A |
40A |
| Recommended Propeller |
1038/1047 |
8060/9060 |
7050/7060/8060/9060 |
6040 |
Package Included:
1x SunnySky A2216 Motor
Test Data:
KV880:
KV1250:
KV1400:
KV2400:
