Surpass Hobby Diamond Seriers Waterproof 4076 2250KV Brushless Motor with 150A ESC for 1/8 RC Vehicles


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 3,280.00
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Description:
Item Brand:Surpass Hobby
Item Number:4076 2250KV Brushless Motor with 150A ESC
Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black and Red

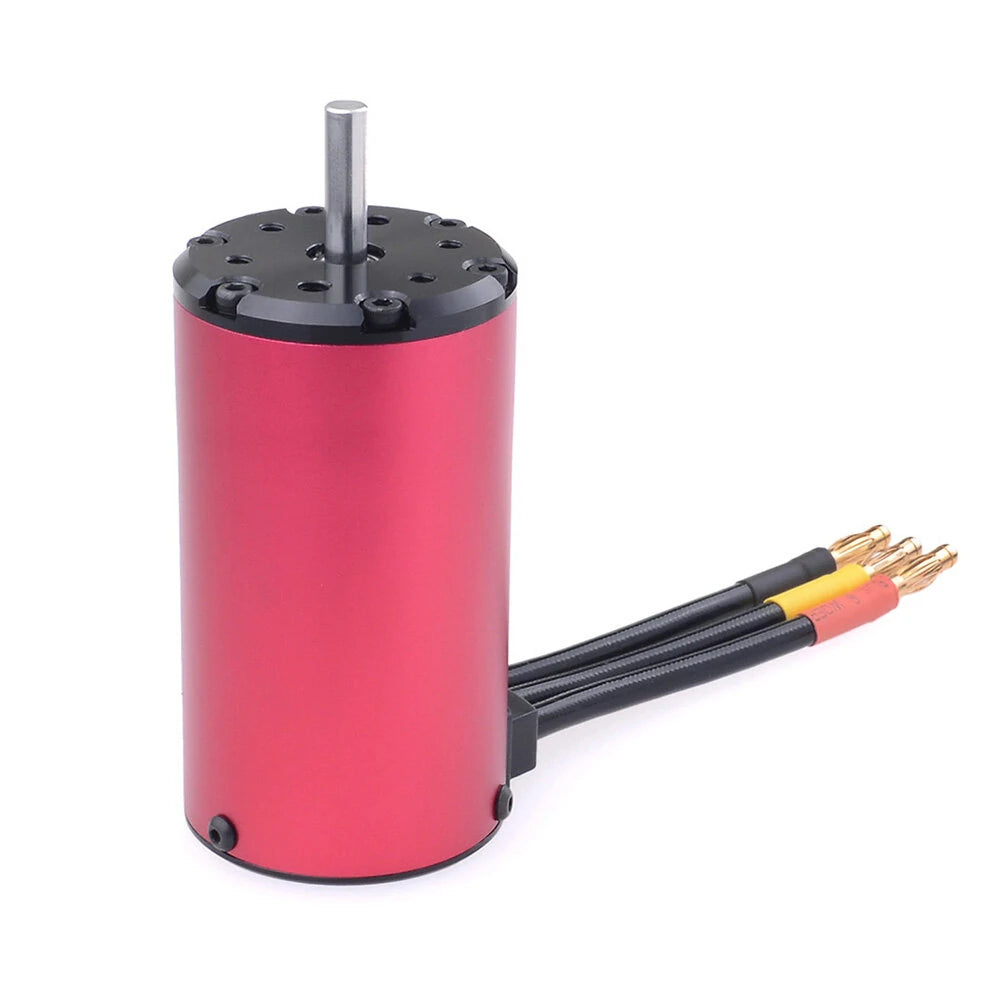

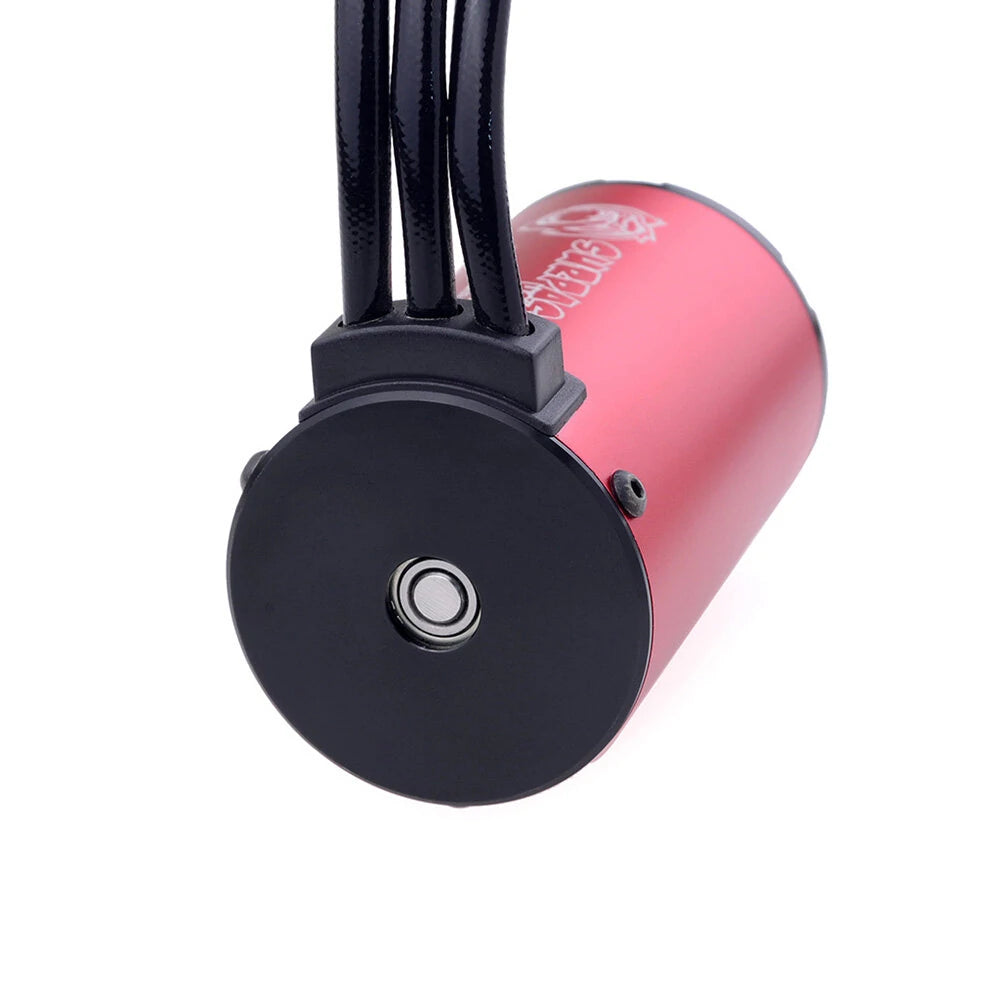

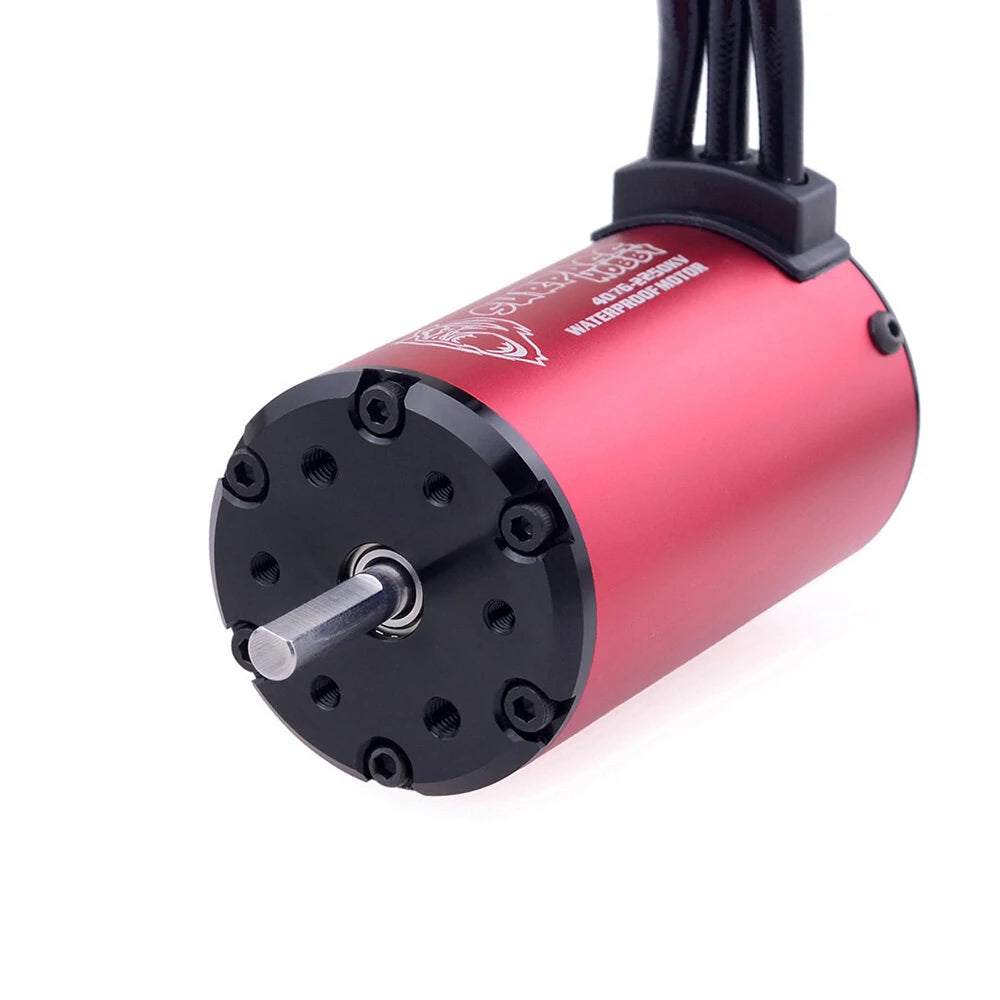

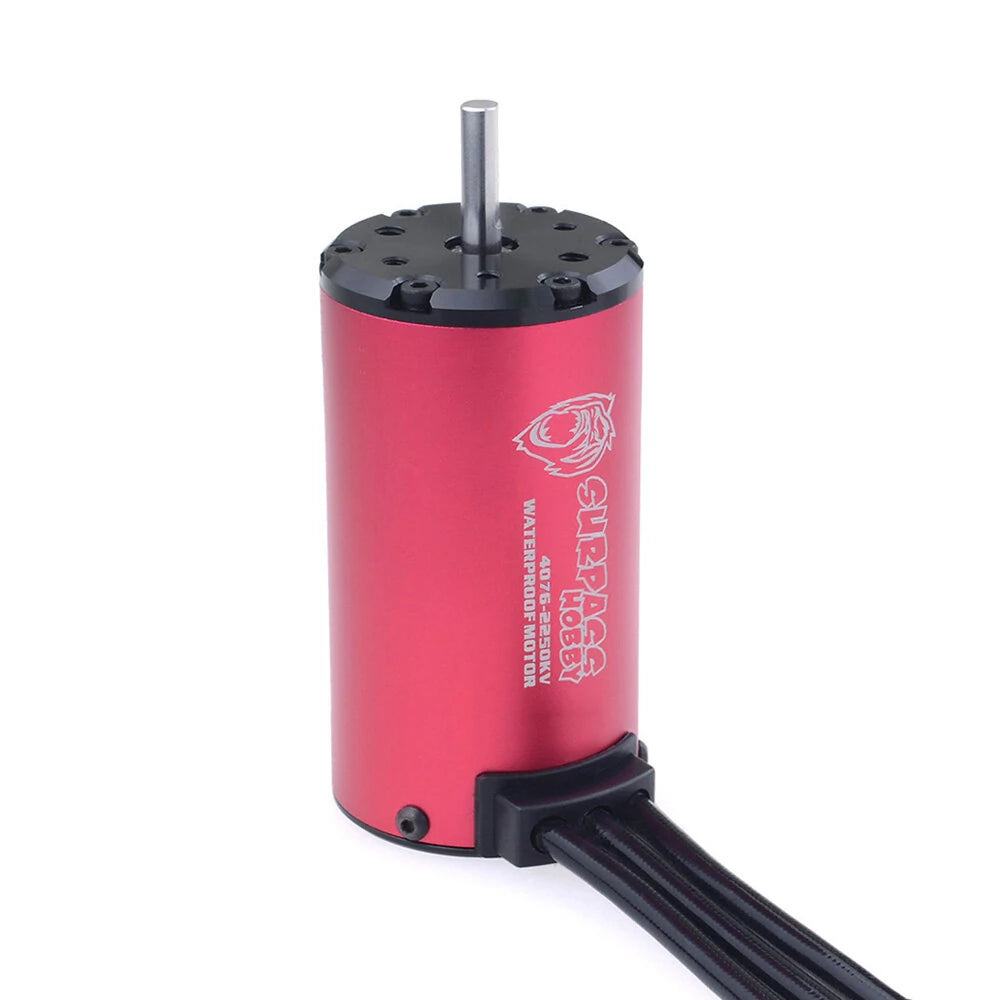

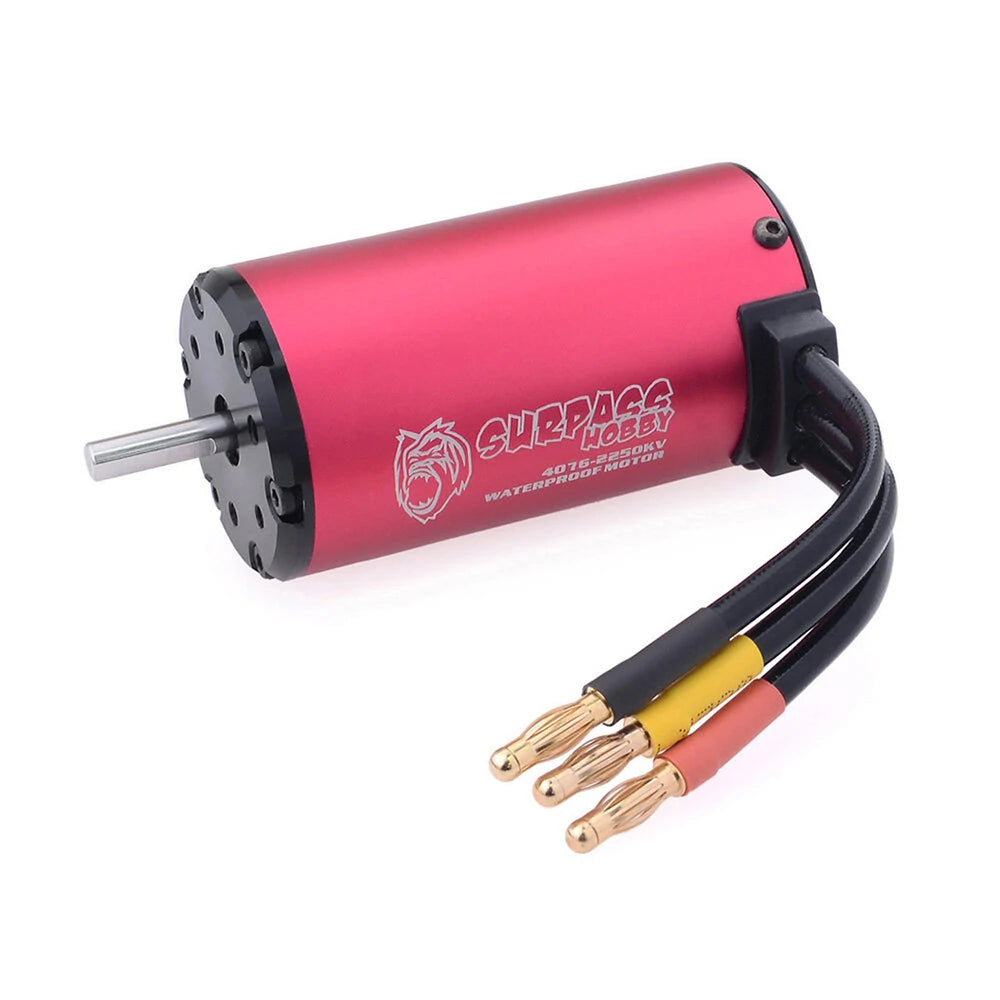

The Size of the Motor:Length 76mm,diameter 40mm,shaft diameter is 3.175mm,length of extended shaft is 18mm
The Size of the ESC:160*100*62mm
The Weight of the Motor/ESC:About 423g/148g
Fit For:1/10 1/8  brushless rc cars

The Specification of the Motor:
KV:2250KV
Watts:2800
Max Voltage:<18V
Max Amps:155A
Rotor Poles:4
IO:2.5A
Resistance:0.0066
Max RPM:50000
Connector:4.0mm gold

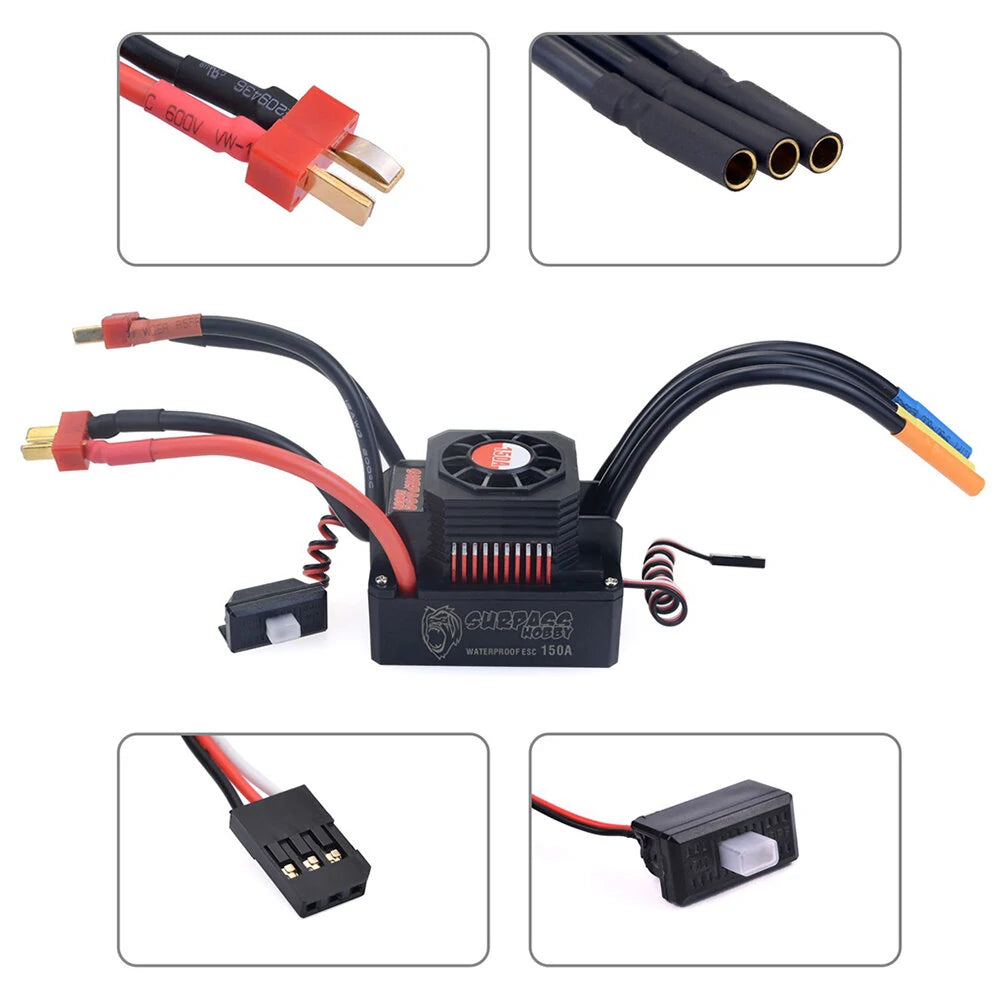

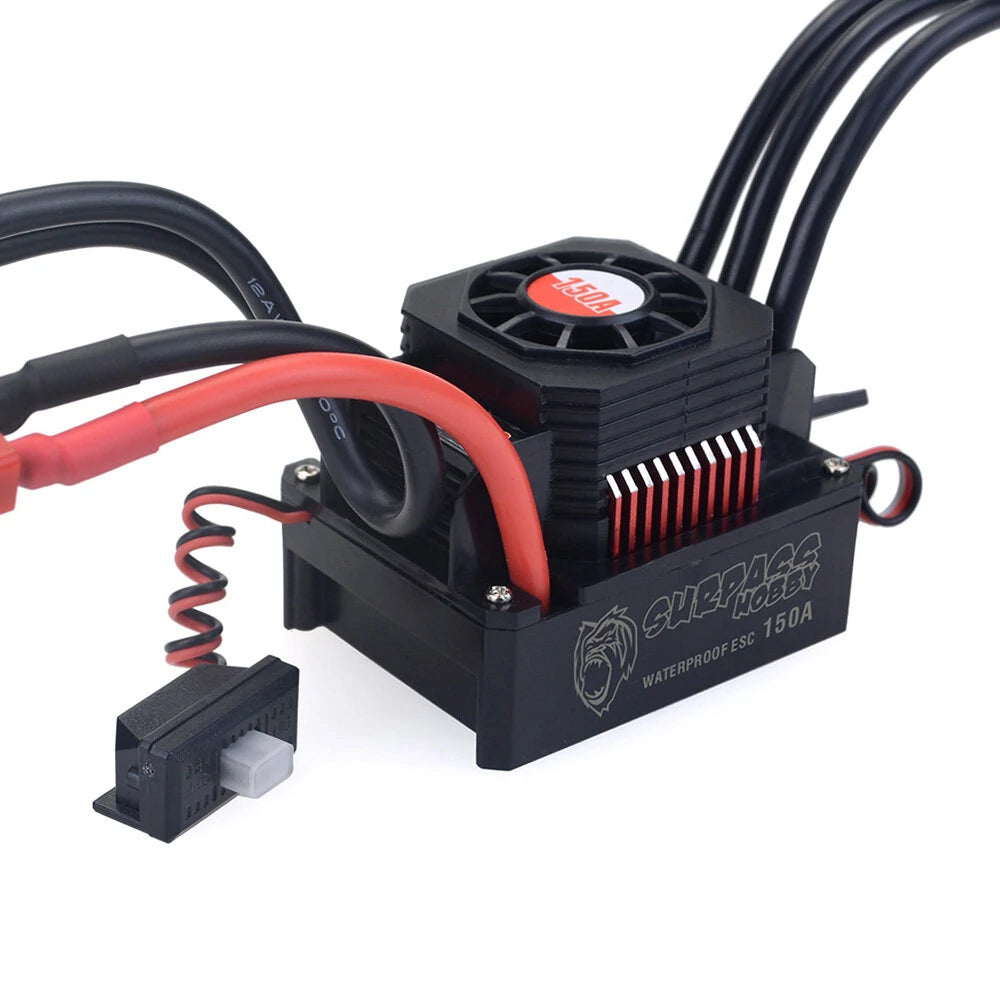

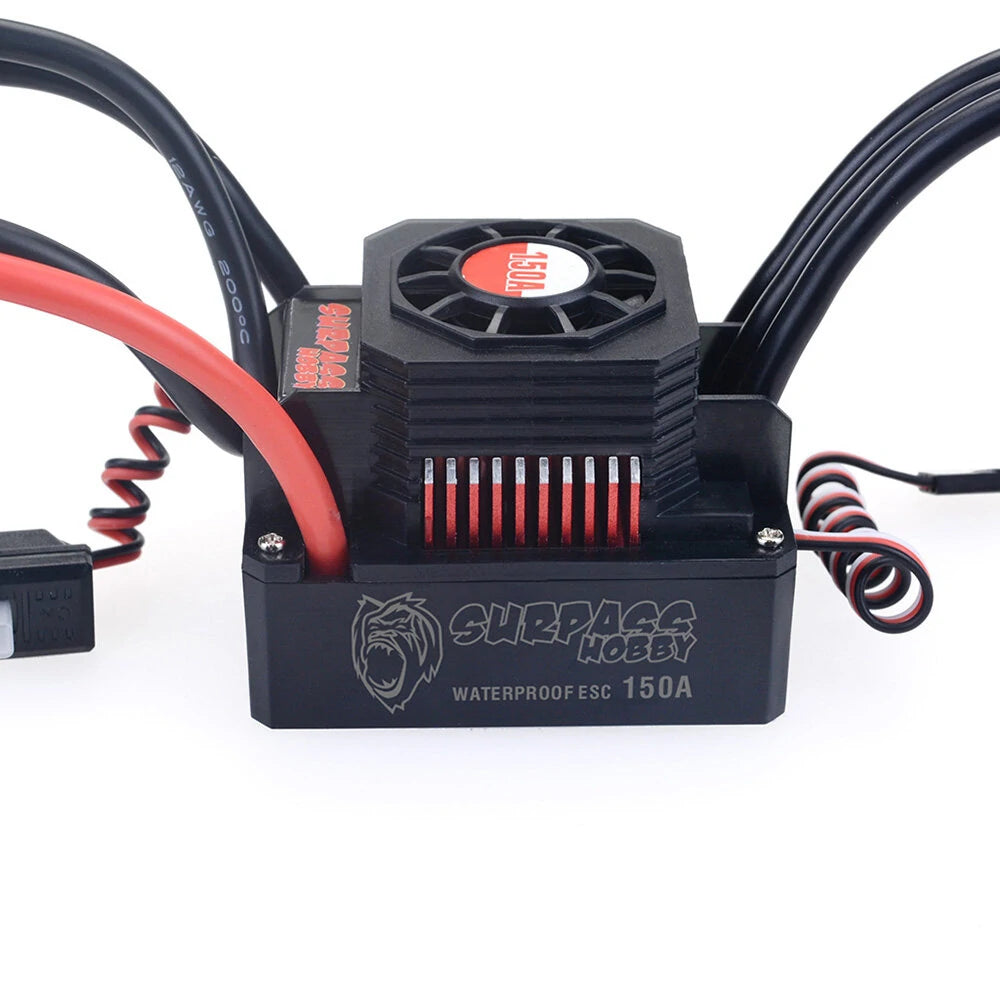

The Specification of the ESC:
Cont.Current:150A
Burst Current:720A
Motor Type:Sensorless Brushless Motor
For 4s Lipo or 12 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <3000
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2500
For 6s lipo or 18 cells NiMH
1.On-road 42XX-size or smaller motor with the kv <2500
2.Off-road/buggy/monster 42XX-size or smaller motor with the kv <2000
Suitable Car:1/8 car
Resistance:0.00030ohm
Battery:3-6 cells lipo/9-18 cells NiMH
BEC Output:6.1V/3A(switch mode)
For the esc manual,please click here

Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all  1/8 brushless cars-multi-mounting system for M2.5 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Precision Engineered for Maximum Energy Conversion

Package included:
1X 4076 2250KV Brushless Motor
1X 150A ESC
1X Manual
