Notice: Comes unassembled. Need build by buyers.

Specifications:
Brand: TEOSAW
Model: 533
Wheelbase: 210mm

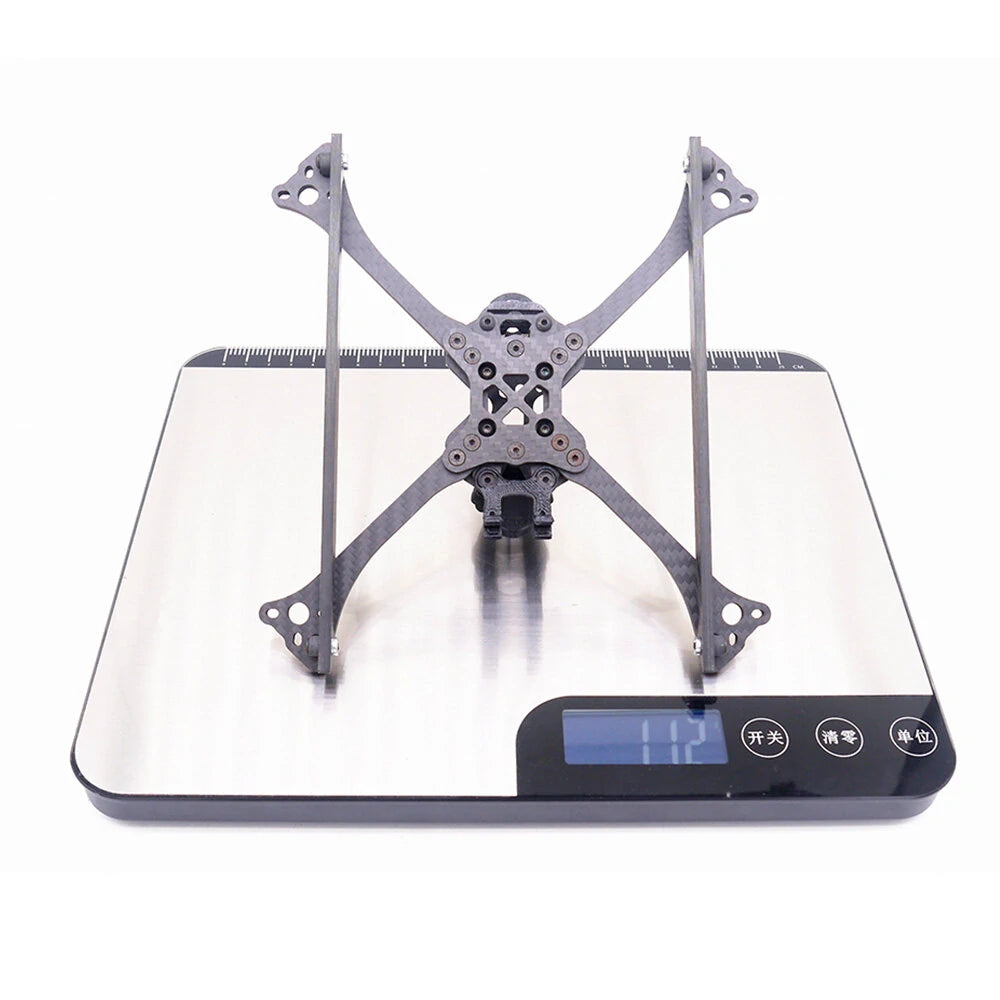

Weight: 110g
Arms Plate Thickness: 5.0mm,

Crossbar Plate Thickness: 4.0mm

Clamping Plate Thickness: 3.0mm

Other Plate Thickness: 2.0mm

Recommend Propeller Size: 5.0 inch, Max 5.1 inch
Flight Controller Hole Distance: 20*20mm（M3）,30.5*30.5mm(M3)
Camera Installation Width: 14mm (Camera Angle Approx. 50 Degrees)
Motor Installation Hole Position: 16*16mm（M3），19*19mm（M3）
Structure: X-type Split
Aluminum Column Height: M3*25mm/M3*30mm(two kinds of aluminum columns will be matched, you only need to choose the height you need for installation)
Adapt to snail, nebula, aurora, vista sky terminal, etc., 915 antenna

Features:

Lightweight yet Durable: This frame maintains a light configuration while providing 5mm arms and a sturdy, wobble-free midsection.

Flexible Camera Accommodation: The 533 frame caters to NANO (14x14) size cameras, making it adaptable for future needs and reducing weight.

Versatile Mounting Options: The frame supports both 20x20mm and 30.5x30.5mm flight tower installation, offering flexibility in setup.

Unique Side Panels: 533's unique side panels allow pilots to modify the flight feel without increasing weight and complexity.

Quick Arm Replacement: The quick-release structure of the arm slots with a full carbon fiber middle section makes arm replacement as easy as unlocking a single screw.

Recommend Parts: ( NOT Included)

FC & ESC: 20x20mm HAKRC F7 2-6S FC & 35A BL_S 4in1 ESC Stack

Brushless Motor: iFlight XING-E Pro 2207 1800KV 3-6S /2450KV 2750KV 2-4S

Propeller:  HQProp Ethix S3 Watermelon 5031 5x3.1 5 Inch 3-Blade Propeller

VTX: 20X20mm EWRF VTX 5.8Ghz 40CH 25-650mW Adjustable FPV Transmitter

FPV Camera: Caddx Ant 1.8mm 1/3 CMOS 1200TVL 16:9/4:3 Global WDR

Lipo Battery: ZOP Power 14.8V 850mAh 100C 4S LiPo Battery
                     Gaoneng GNB 22.8V 1100mAh 60C 6S LiPo Battery

Package Included:
1x Empty Frame Kit
