Description
Notice: Comes unassembled. Need build by buyers.
Specifications:
Brand: TEOSAW
Model: Drake35

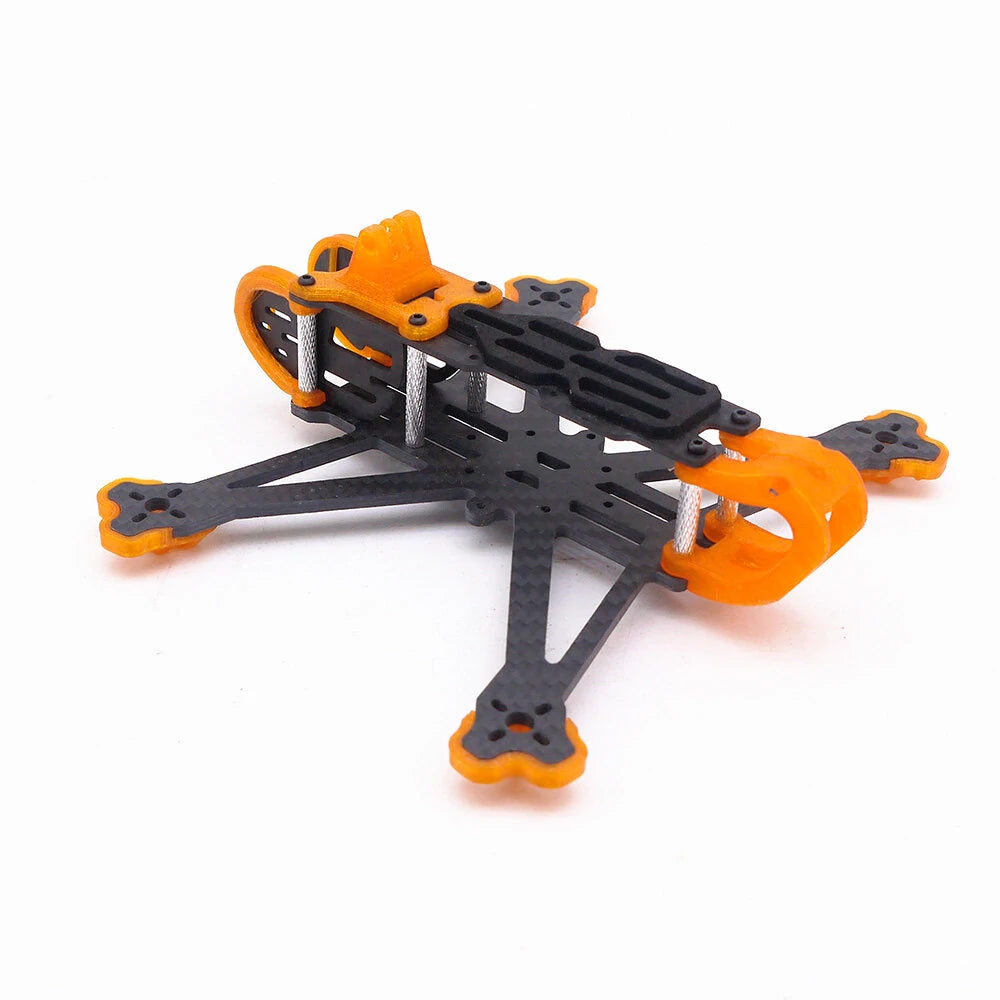

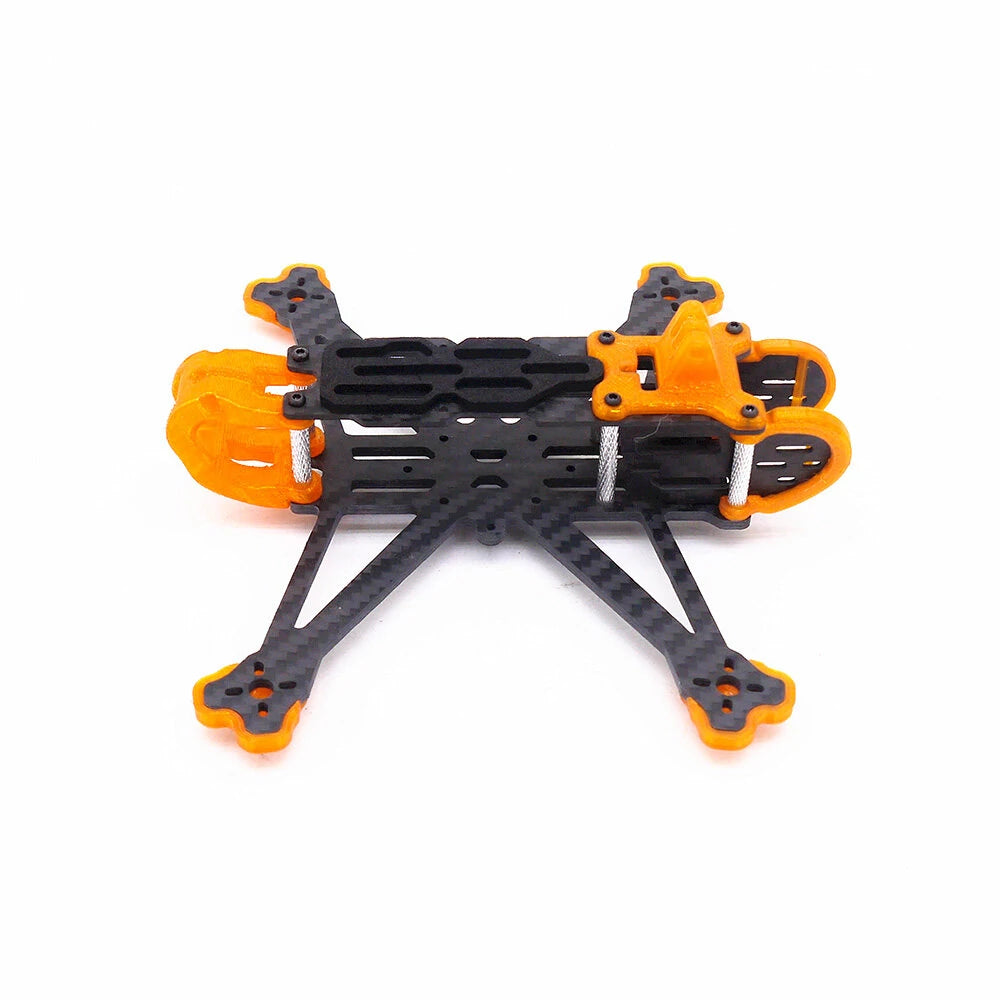

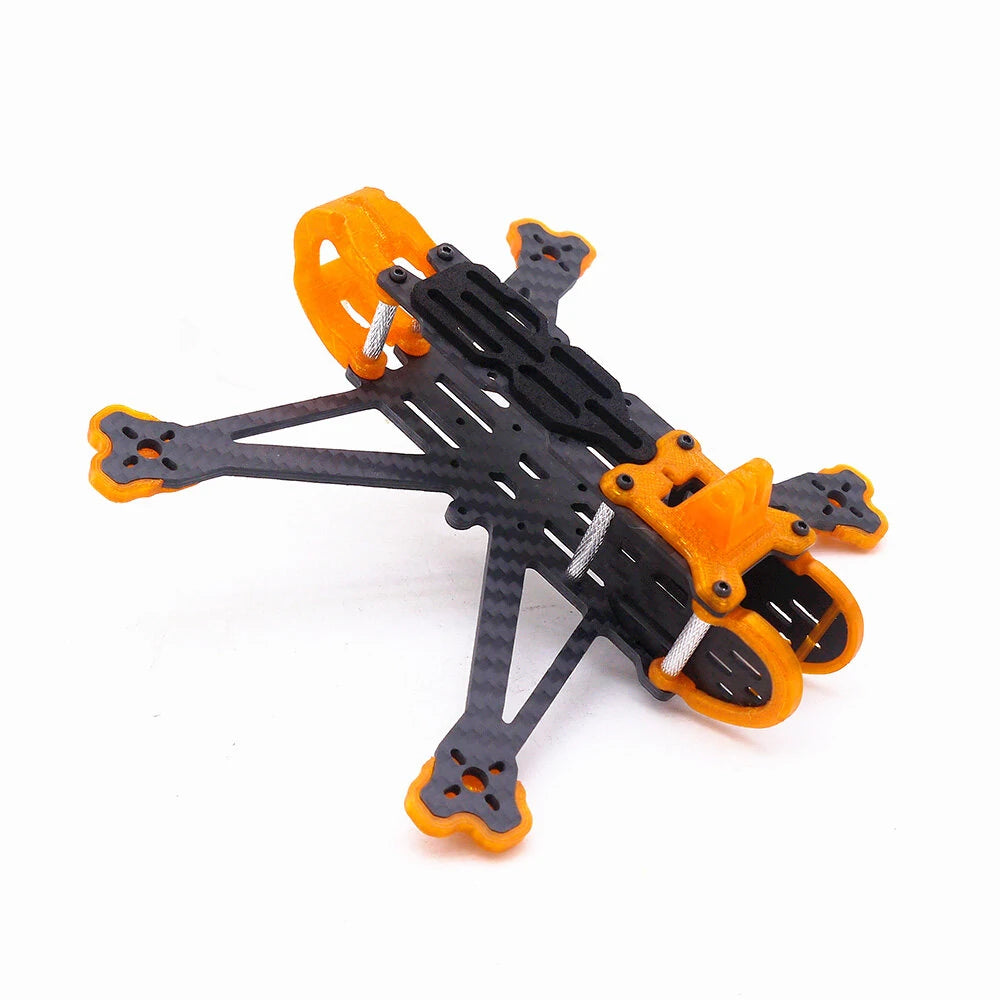

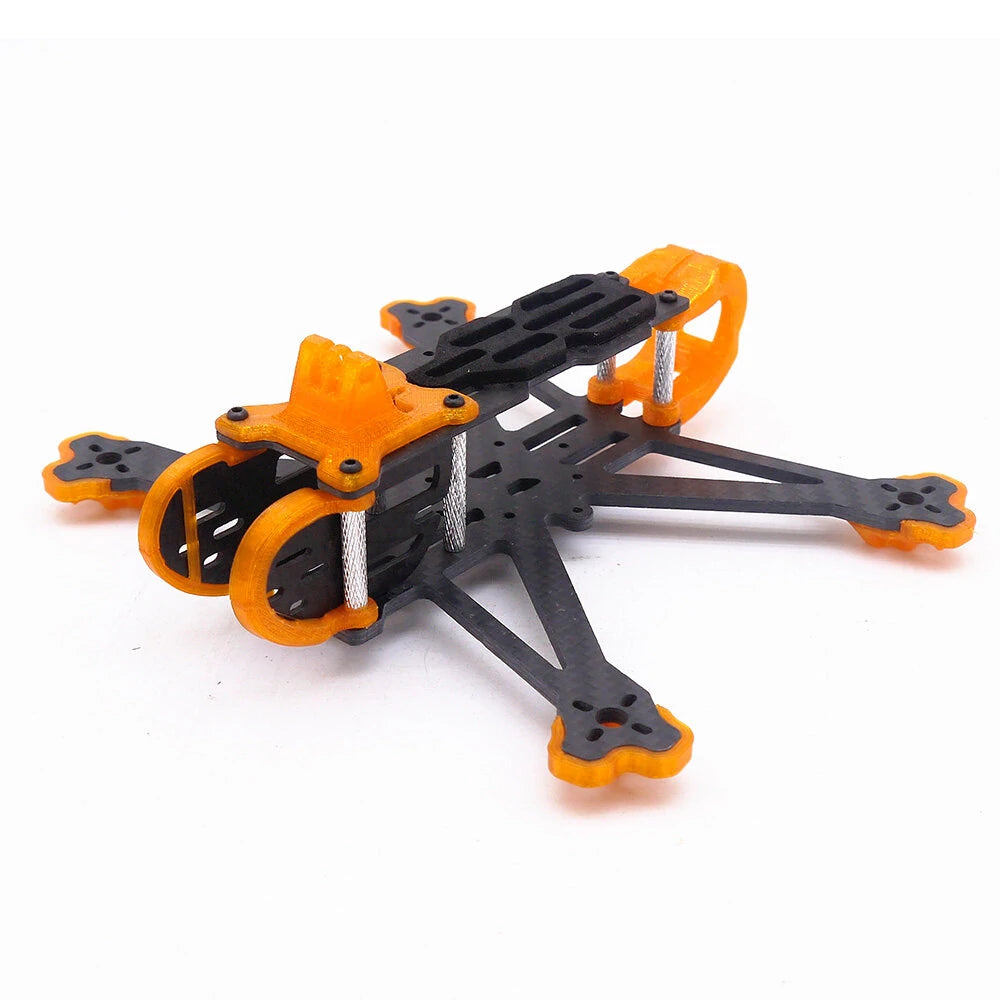

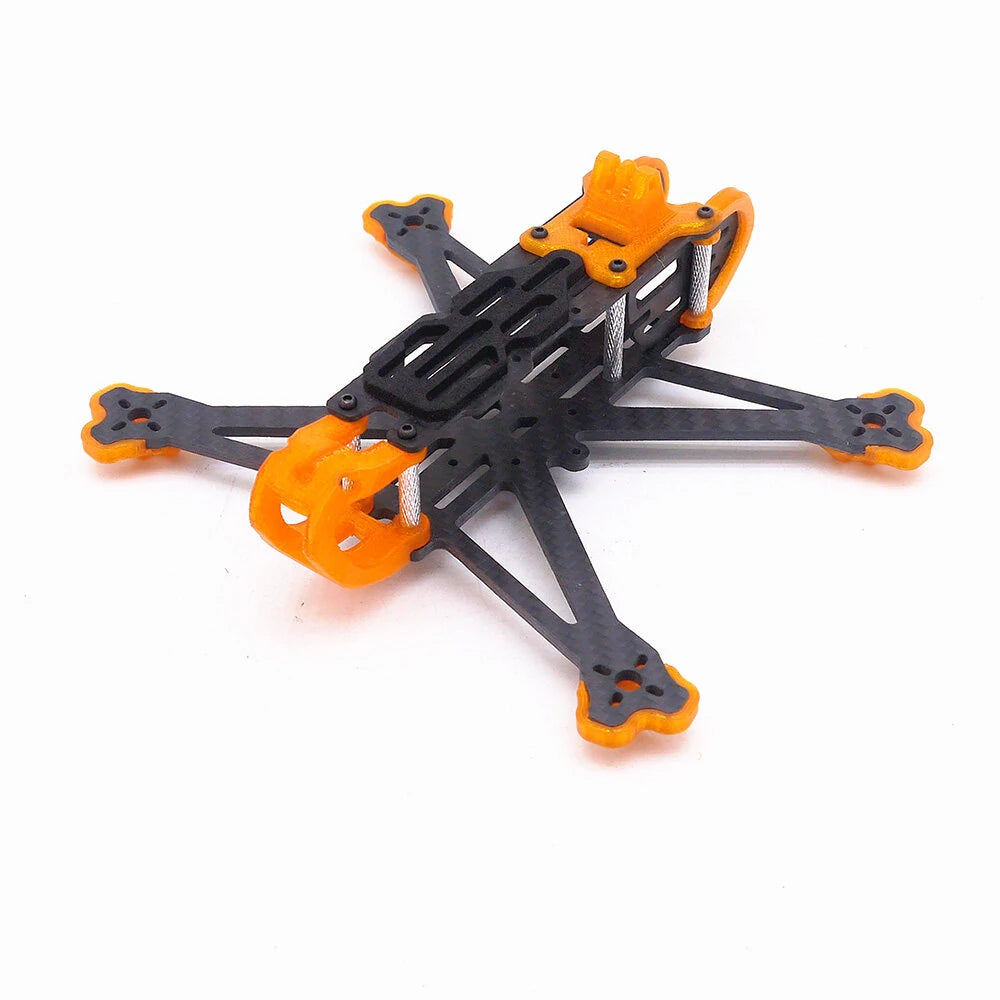

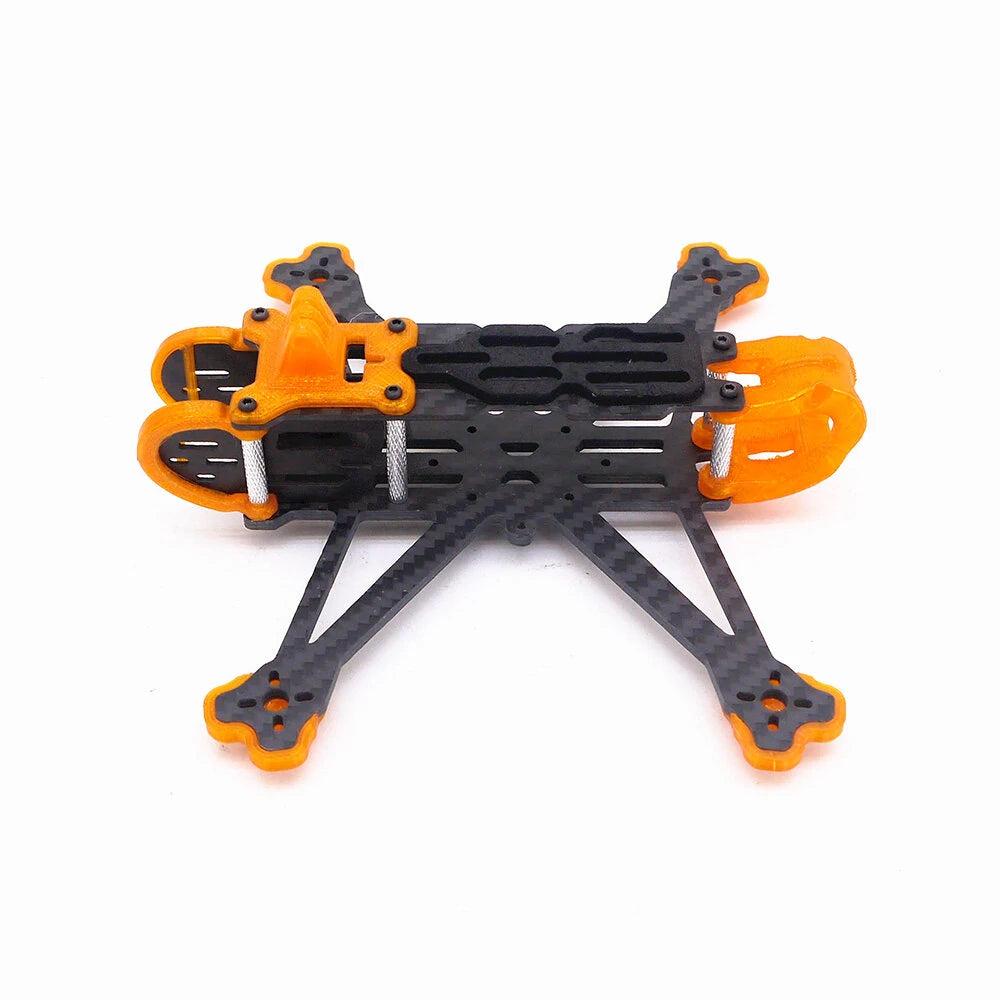

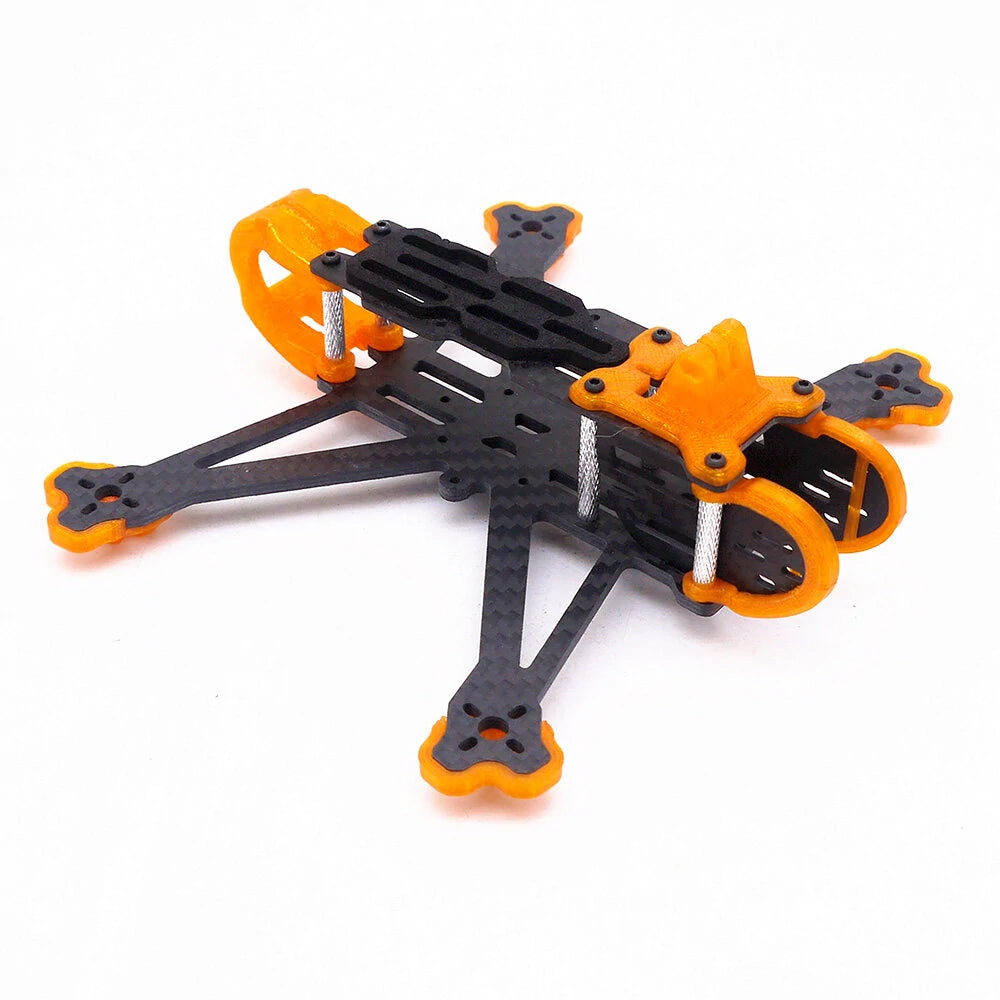

Item Name: 155mm Wheelbase Carbon Fiber 3.5 Inch Frame Kit
Wheelbase: 155mm
Top Plate Thickness: 1.5mm
Side Plate Thickness: 1.5mm
Bottom Plate Thickness: 3.0mm
Internal Height: 25mm

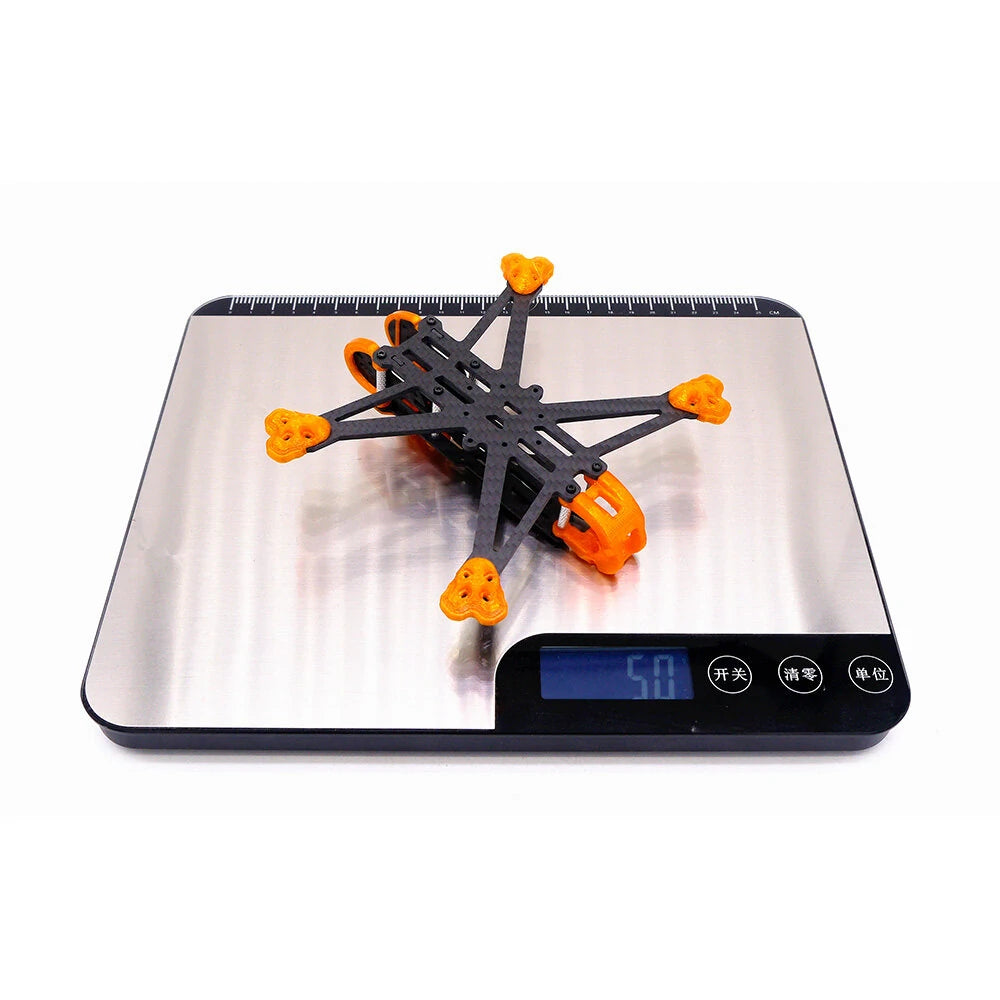

Weight: Around 51g
Flight Controller Hole Distance: 20*20mm(M2)，25.5*25.5mm（M2)
VTX Hole Distance: 20*20mm(M2)
Camera Installation Width: 19mm
Motor Installation Hole Position: 9*9mm(M2),12*12mm(M2)
Recommended configuration: ( NOT Included)
Brushless Motor: 1404 3800KV brushless motor
FC&ESC: F4 AIO 20A Flight Controller (M2,25*20mm）
Propeller: HQProp T3.5x2.5 3525 3.5 Inch Propeller
Camera & VTX: Caddx Polar Vista Kit (VTX)
FPV camera angle: 0°-60°
Receiver: ELRS 2.4GHz Receiver/TBS Receiver
Lipo Battery: 750mAh 4S 95C
Power connection: XT30, black and red wires
Reference flight time: 11~13 minutes for 4S 750mAh battery to fly smoothly or 4~6 minutes for FPV flying (all based on actual situation)
Features:
Combination of Freestyle Flying and HD Filming: Drake35 Frame Kit perfectly blends the abilities of freestyle flying and high-definition filming.
Extended Camera Position: For a complete propeller-free view, we've thoughtfully extended and protected the camera position.
Made of Carbon Fiber: To maximize the quad's stability and impressive durability, the frame is made of carbon fiber.
Allows Stunning Tricks: The build quality and design of the frame allow pilots to execute some amazing freestyle tricks.
Ample Internal Space: With an internal height of about 25mm, the frame provides ample space for all necessary components.
Package Included:
1x Empty Frame Kit
1x set of TPU Parts
