Specifications:
Model: Ran4 Advanced

Item Name:
Wheelbase: 185mm

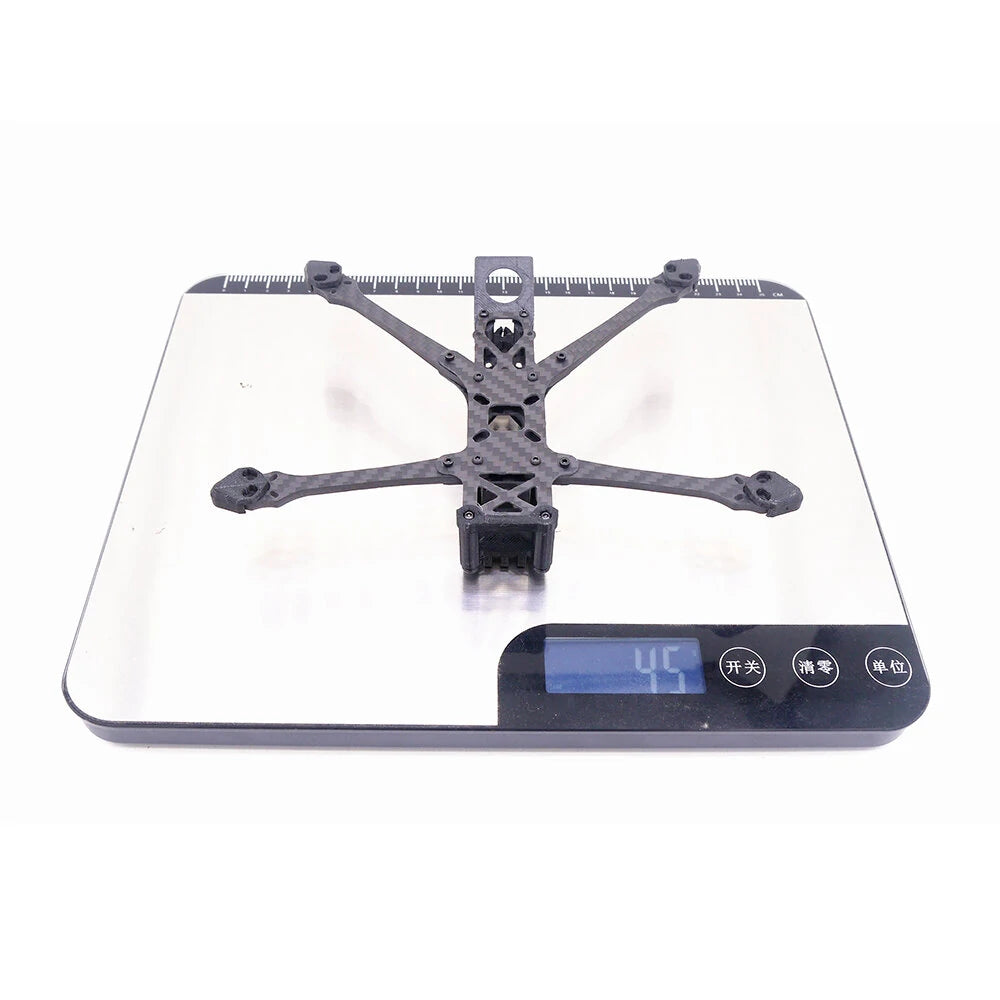

Weight: 45G (with printed parts)
Thickness: Bottom Plate 1.0mm

Upper Plate 1.0mm

Middle Plate 1.0mm

Front Lip Plate 1.0mm,

Arm Thickness: 4.0mm

Recommend Parts: ( NOT Included)
Propellers: 4-inch blades
Flight Controller and Image Transmission Hole Distance: 16x16mm (M2), 20x20mm (M2)
Camera Installation Width: 14mm, 19mm
Motor Installation Position: 9x9mm (M2) and 12x12mm (M2)
Battery: 3S/4S 1100mah
3D Printed Parts Color: Black TPU
Compatibility: VISTA Skyports

Recommended Configuration: ( Not Included)

FC & ESC
Brushless        Motor	HSKRC 1505 Plus 3750KV 3-4S	Happymodel EX1404 1404 3500KV 3-4S
Propeller	iFlight Nazgul T4030 4Inch 2-Blade	Gemfan Hurricane 4024 2-blade
VTX (for Analog)	EWRF VTX 5.8Ghz 40CH 25/200/650mW Adjustable	HGLRC Zeus nano VTX 25/100/200/350mW 5.8G 40CH
FPV Camera	Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL	Caddx Ant 1.8mm 1200TVL
GPS	BN-220 GPS	BN-220 GPS
Lipo Battery	3S / 4S 1100mah	3S / 4S 18650

We recommend installing an independent finder buzzer such as the JHE20B Finder.

Key Features:
-Innovative Foldable Design: Provides superior flight stability and collision protection.
-Lightweight Construction: Weighs only 45g (including printed parts), offering better maneuverability.
-Highly Compatible: Works seamlessly with VISTA Skyports and various camera widths (14mm, 19mm).
-Versatile Installation: Accommodates different motor installation positions (99mm (M2) and 12mm12mm (M2)).
-Durability: 3D printed parts made from high-quality Black TPU, ensuring long-lasting use.

Package Includes:
1x Drone Frame
2 pair x 3D Printed Camera Brackets
1x GPS Seat
1x Universal Action Camera Base (M3 hole)
4x Motor Protection Seats
1x Front Lip Protection Seat
1x Antenna Seat
