Description
Specifications:
| Model |
STEELE 7plus ( 7 Inch) |
STEELE 9plus (9 Inch) |
STEELE 10plus (10 Inch) |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Wheelbase |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>296mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>376mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>416mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Structure |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>X-shaped Split Body |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>X-shaped Split Body |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>X-shaped Split Body |

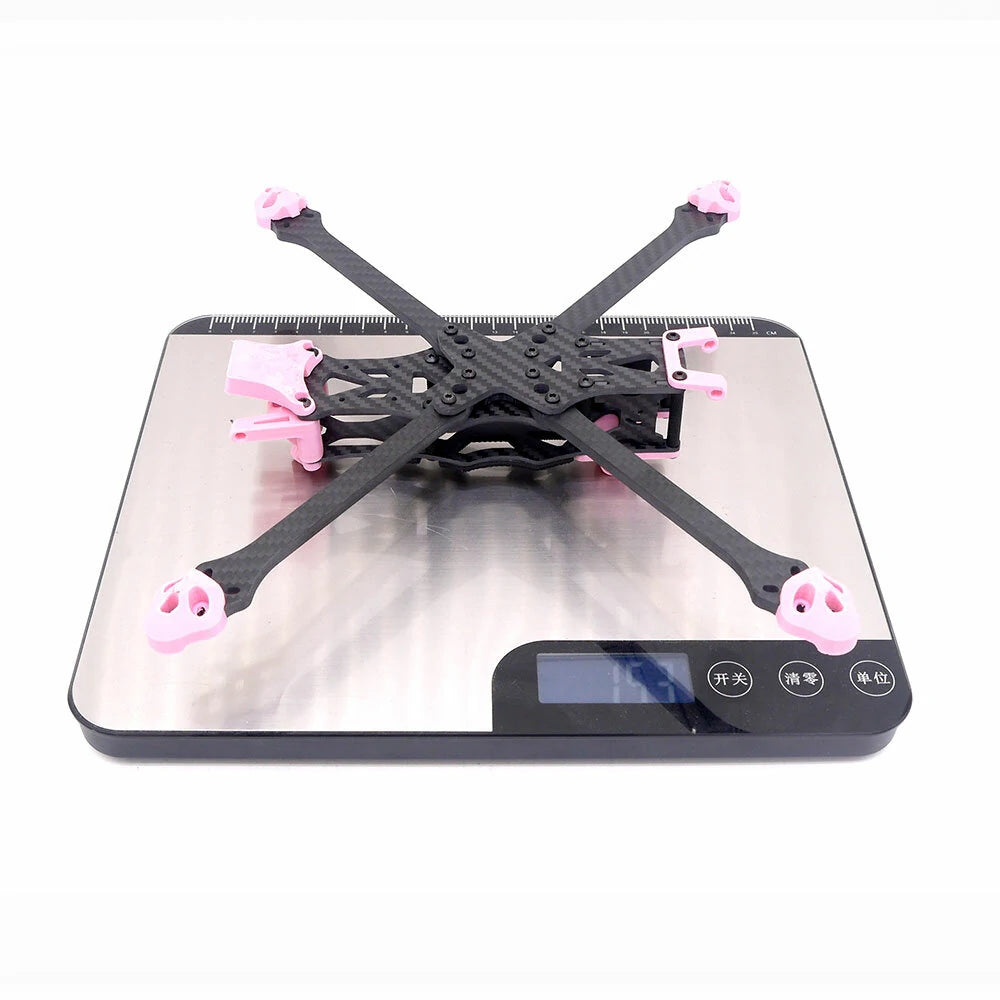

font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Weight |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>153G |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>170G |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>175G |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Arms Thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>5mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>5mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>5mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Top Plate Thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Side Plate Thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>2.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Bottom PlateThickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>3.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>3.0mm |
3font-size:10.5000pt;mso-font-kerning:1.0000pt;'>.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Spacer Plate Thickness |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>3.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>3.0mm |
3font-size:10.5000pt;mso-font-kerning:1.0000pt;'>.0mm |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Propeller Size |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>7.0-inch blades |
9font-size:10.5000pt;mso-font-kerning:1.0000pt;'>.0-inch blades |
font-size:10.5000pt;mso-font-kerning:1.0000pt;'>10font-size:10.5000pt;mso-font-kerning:1.0000pt;'>.0-inch blades |
Flight Controller Mounting Holes: 30.5*30.5mm (M3)
VTX Mounting Holes: 20*20mm (M2)
Camera Mounting Width: 22mm
Internal Height: Approx 20mm
Motor Compatibility: Supports 16mm (m3) and 19mm (m3) hole spacing
DJI & VISTA Air Unit Compatible
GPS: BN220
Features:
Versatile Structure:
Designed with an X-shaped split body, allowing for enhanced stability and better in-flight performance.
Durable Material:
Features robust arm thickness of 5mm and various board thicknesses for additional durability and longevity.
Multiple Mounting Options:
Supports various mounting hole configurations for flight controllers, VTX, and motors, making it extremely adaptable to different setups.
DJI & VISTA Compatibility:
Seamlessly integrates with DJI and VISTA Air Unit, providing a flexible option for different FPV setups.
Comprehensive GPS Support:
BN220 GPS compatibility, offering precise positioning and advanced navigation capabilities.
Recommend Parts are compatible: ( NOT Included)
| Version |
STEELE 7plus ( 7 Inch) |
STEELE 9plus (9 Inch) |
STEELE 10plus (10 Inch) |
| FC & ESC |
