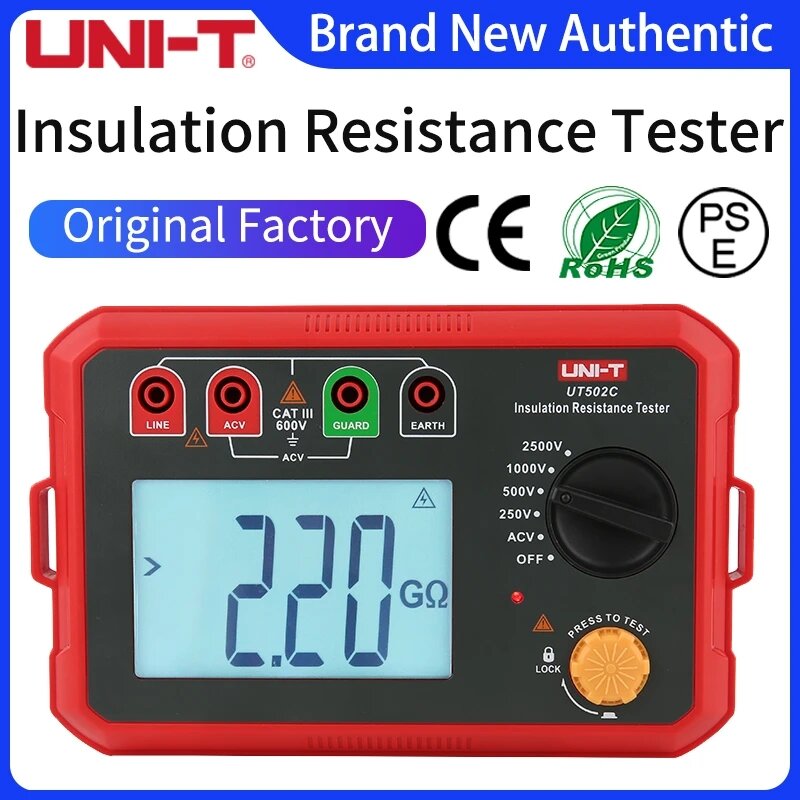

UT502C Insulation Resistance Tester

UT500 series digital insulation resistance testers, with their new design, large scale integrated circuit and digital circuit, are utilized to measure insulation resistance, alternating voltage and other parameters. This series of testers have features of complete functions, high accuracy, stable performances, comfortable and reliable operation. The tester is used in maintenance, test and verification for various electrical equipment and is applicable to measure insulation resistance of transformer, motor, cable, switch, electric appliances, etc.

​Specifications	Output Voltage	Measurement Range
Insulation Resistance Measurement	250V	0.00MΩ～500MΩ
	500V	0.00MΩ～2.00GΩ
	1000V	0.00MΩ～5.00GΩ
	2500V	0.00MΩ～20.0GΩ
Accuracy	0.00MΩ～99.9MΩ:  ±(3%+5) 100MΩ～9.99GΩ:  ±(5%+5) 10.0GΩ～20.0GΩ:  ±(10%+5)
Voltage Measurement Range	AC:  30V～750V (50Hz/60Hz)， ±(2%+3)
Short-Circuit Current	<2mA
Powered by	Adaptor (optional,without charging function) 6×1.5V AA alkaline batteries
Auto Power Off	√
Self-Lock Function	√
Low Battery Indication	√
Data Hold	√
Auto Discharge	√
Audible and Visual Alarm	√
Overrange Indication	√
Backlight function	√
Altitude	≤2000 m
Operating temperature and Humidity	0℃~35℃,<75% RH
Storage temperature and Humidity	-20℃~60℃,<80% RH
Rating	CAT III 600V
Product Color	Red + grey
Product Size	183.5mmx115mmx74mm

Features

- Insulation resistance

- AC voltage

- Buzzer alarm

- Backlight display

- Automatic shutdown

- Voltage reminder

Package included:

1 x Meter (NO BATTERY INCLUDED)

1 x Cloth Bag

1 x Color Box

2 x Test Lead

2 x Alligator Clip

1 x Manual
