Description
Specifications:

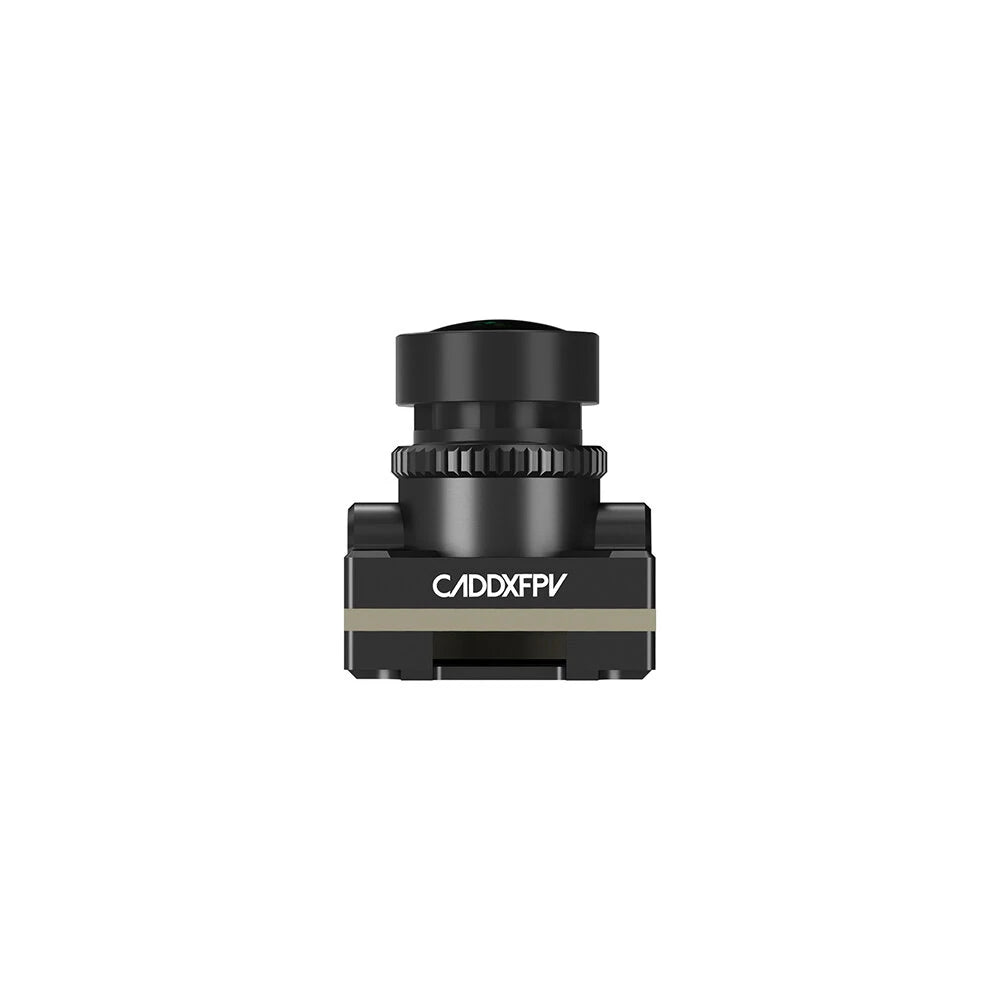

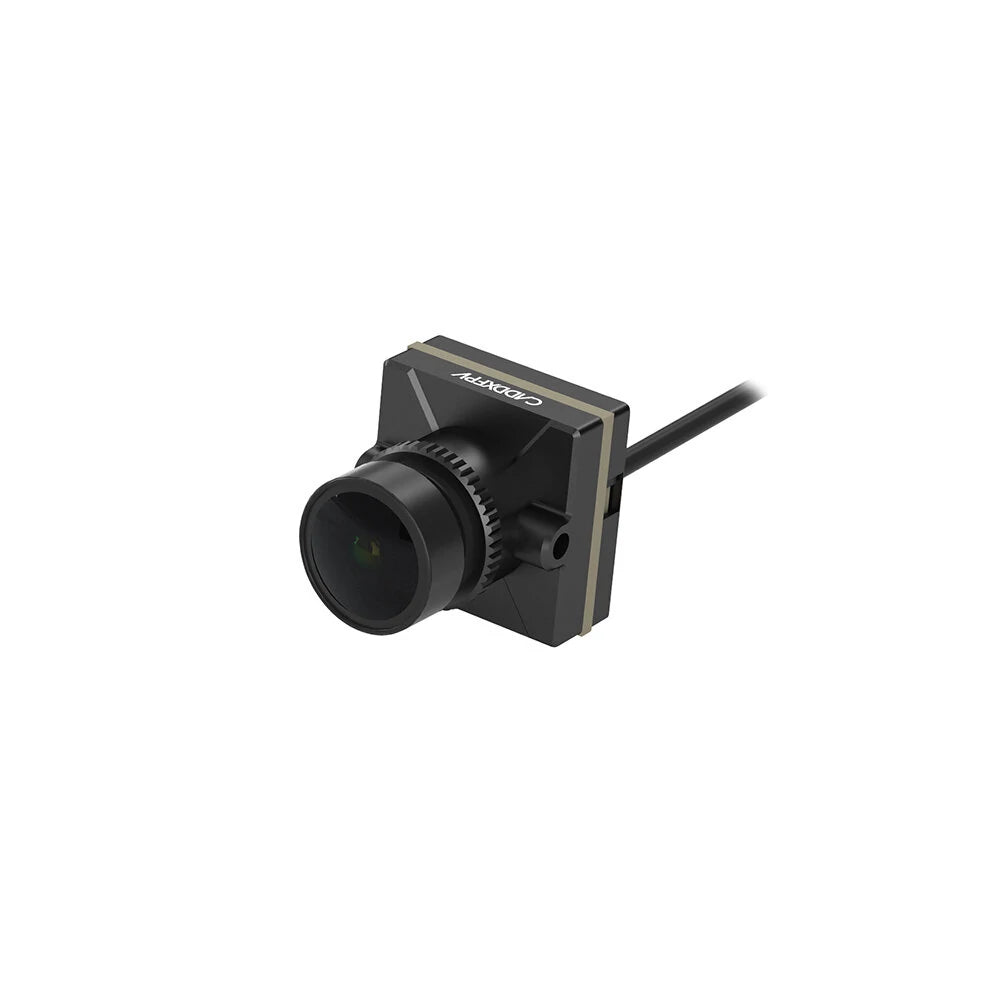

Camera
Model: Avatar HD Nano Camera V3
Image Sensor: 1/3.2-Inch 4Mp 4:3 sensor
Resolution: 1080P/60fps,720P/120fps,720P/60fps
Ratio: 4:3 native / 16:9
Lens: 2.1mm
FOV: 160°
Aperture: F2.0
Shutter: Rolling Shutter
Min.Illumination: 0.001Lux
Weight: 3g （without cable）
Dimensions: 14*14*16.8mm
Coaxial Cable: 90mm(default)/140mm

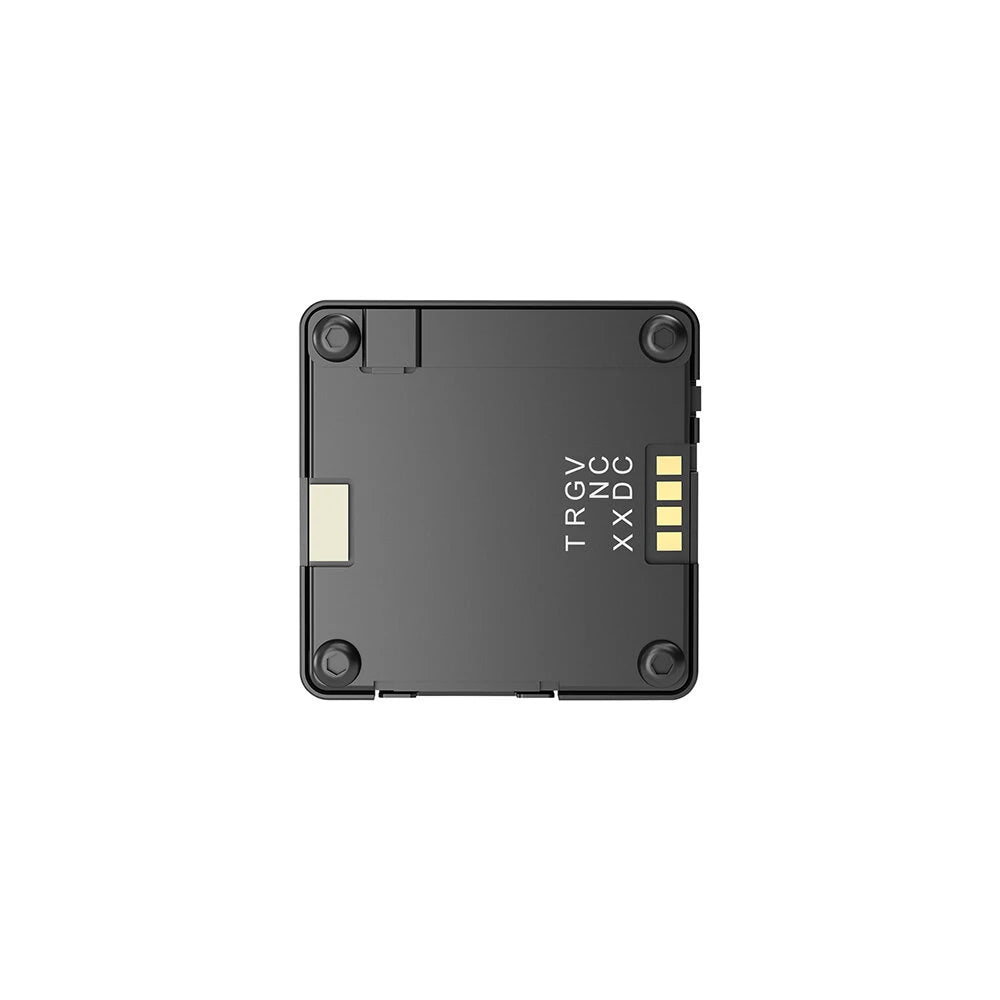

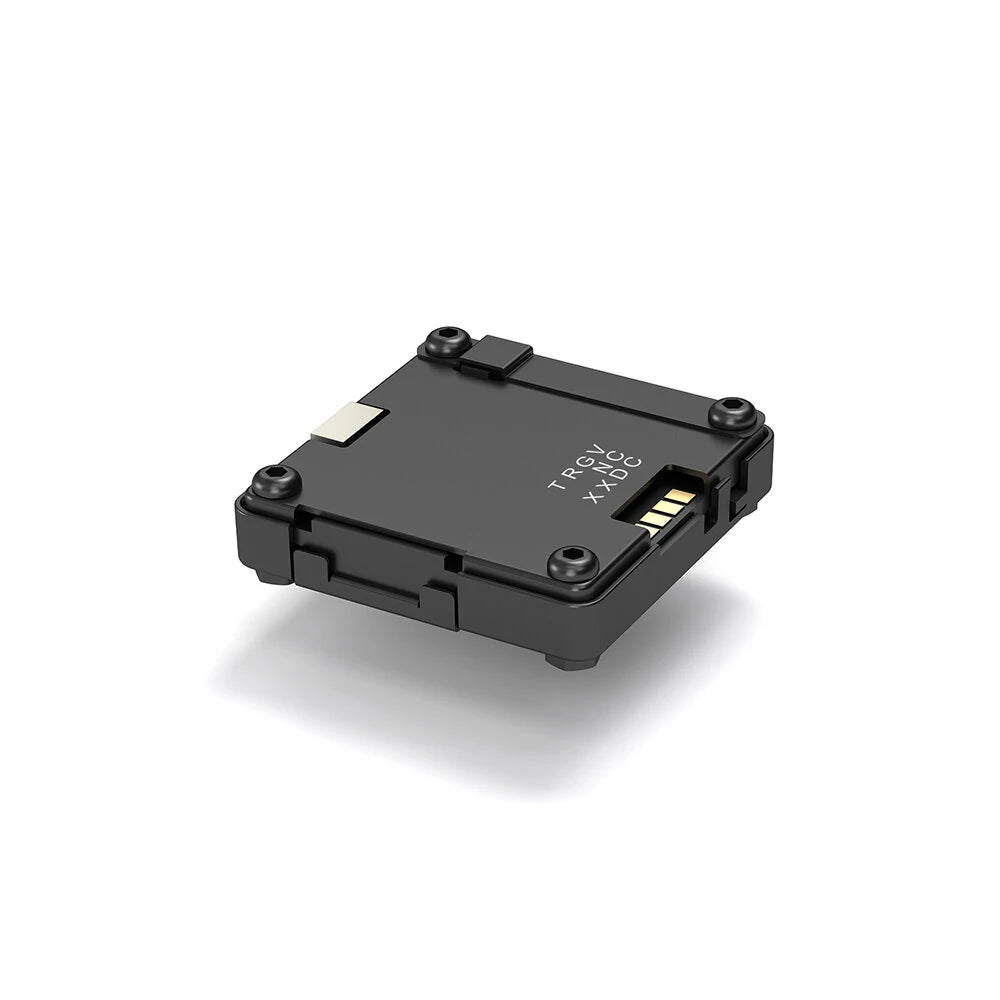

VTX
Model: Avatar HD Mini VTX V3
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC:<27dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface: JST1.0*4(Power in)JST0.8*4(USB)
Mounting Holes: 25.5*25.5mm(M2 hole);20*20mm(M3 hole)
Dimensions: 31.5*31.5*9.4mm
Storage: 32G
Recording: 1080p/720p
Weight: 13.4g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input: 3.1V-13V
Supported FC System: Betaflight; Inav; Fettec; ArduPliot
OSD: Canvas mode
Latency: Average latency 22ms
Antenna: 1(IPEX)
VTX Antenna
Model: Avatar V2 antenna
Polarization: LHCP
Bandwidth: 5600MHz-6000MHz
Average Gain: 1.9dBi
VSWR: ≤1.5
Interface: IPEX-1
Line Length: 105mm
Dimension: R15*45mm(without cable)
Weight: 2g
Package Included:
1x Avatar HD Nano Kit V3
1x 4 Pin USB Cable
1x 4 Pin Power Cable
2x M2x4/5/6mm Screws
4x M2x14mm Screws
4x M2*5*0.5mm washer
5x 2.1x3.4x1mm Gasket
1x 14 to19mm bracket
Product features:
-3.1~13V-500mW
-FOV160°
-Metal case
-1080P/60fps
-4:3 native sensor
-Built-in 32G storage
-18.5g light-weight
-Nano Camera 14*14mm

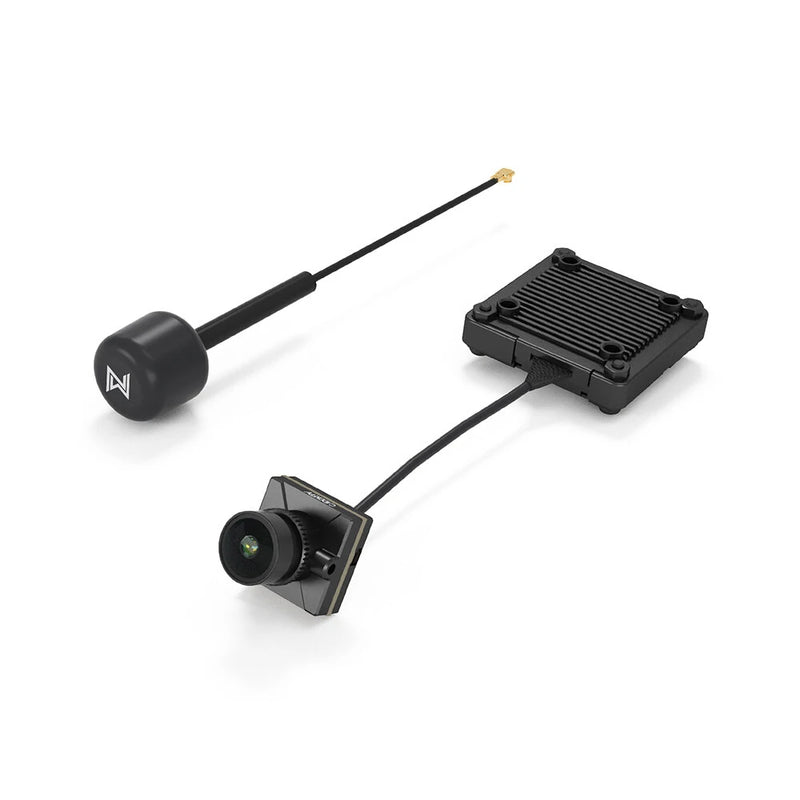

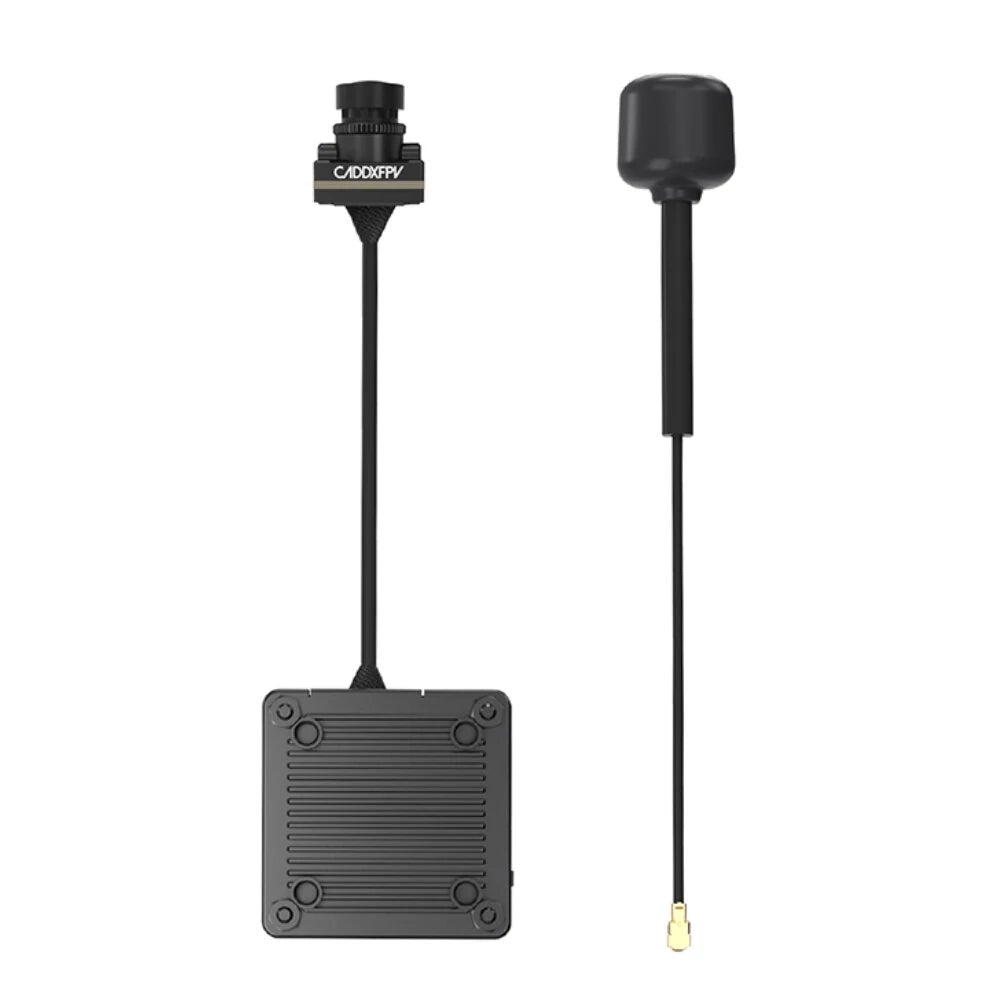

Bullet Point for Walksnail Avatar HD Nano Kit V3
The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 native sensor that provides smooth and stunning images. With this kit, you can capture flying footage with exceptional clarity and detail.
Walksnail Avatar HD Nano Kit V3 is suitable for more drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly various kinds of drones with amazing video quality and range.
Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160° FOV, provides clearer and more realistic image quality.
The Avatar vtx comes with 32g built-in storage, it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.
Canvas Mode：supporting Betaflight, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
