Description
Description:

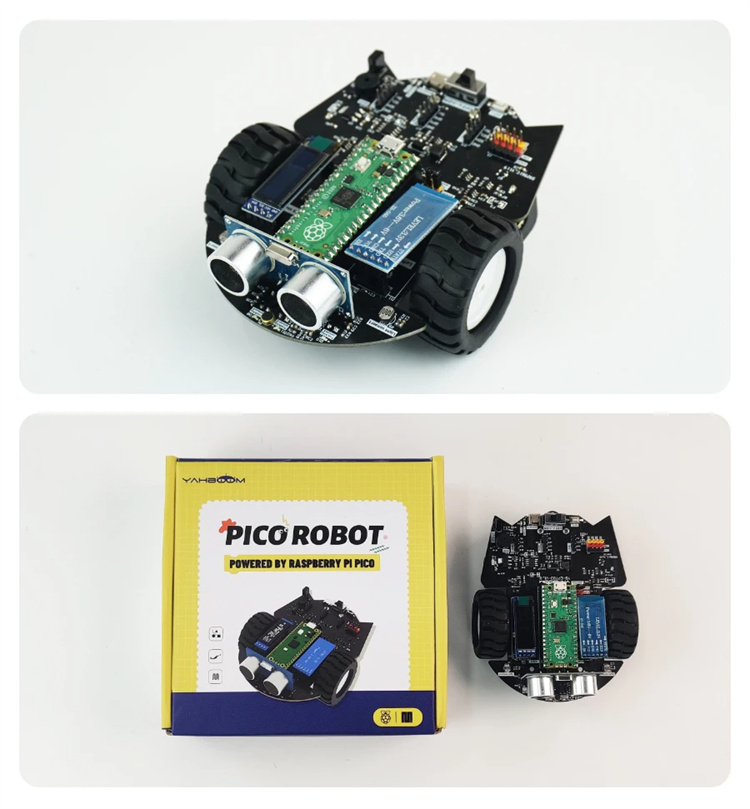

Raspberry Pi Pico robot is a compact and cost-effective educational programmable 2WD smart car. It is based on Raspberry Pi Pico, and uses the MicroPython as programming language, combined with on-board sensors, many interesting functions are realized. This robot possess an infrared receiver and a bluetooth module, so the user can remotely control it through the infrared remote control or mobile phone APP. We reserve the servo interface, IIC interface, and common pins on the expansion board, which is convenient for users to expand more functions. In addition, we will provide a large number of tutorials and source codes. All in all, this is a good platform for programming beginners, programming education institutions or primary education.
Specifications:
Main control board: Raspberry Pi Pico
Endurance: 2.5 hours
Microprocessor: RP2040
Power supply: single section 18650 2200mAh
Charging interface: micro USB
Communication mode: bluetooth 5.0
Remote control mode: mobile APP /infrared remote control
Input: photosensitive resistance, 4-channel line tracking, sound sensor, ultrasonic, bluetooth, infrared receiving
Output: OLED display screen, passive buzzer, N20 motor, servo interface, programmable RGB lamp
Safety protection: over-current protection, over-charge protection, motor locked rotor protection
Motor scheme: N20 motor *2
Assembly size: 120*96*56mm
Weight after assembly: 182g
Features:
1. Small size, reasonable layout, high cost performance
2. A large number of on-board resources: tracking sensor, ultrasonic, light sensor, sound sensor, buzzer, bluetooth module, OLED display, infrared receiver.
3. MicroPython programming
4. Two remote control methods: infrared remote control, mobile phone APP bluetooth remote control
5. A variety of expansion interfaces are reserved: IIC interface, servo interface, GPIO interface.
Package Include:
1x Car Body
1x Pico Car Expansion Board
1x Raspberry Pi Pico
1x N20 Motor
1x N20 Motor Fixing Base
1x N20 Universal Wheel
1x OLED Screen
1x 5.0 bluetooth Module
1x Micro USB Cable
1x Remote Control
1x Screws Pack
1x Screwdriver
2x N20 Tire
1x Battery
1x Tracking Map
1x Manual
