Description
Specifications:
Continuous current/peak current:65A/80A
Dimensions (length*width*height): 60*34*22mm
Number of batteries: 3-6S Lipo
Weight:55g
BEC output: 6V,7.4V,8.4V adjustable /10A
Programming method: LCD programming card G2/Android & Apple APP
Features:
1. It adopts a high-performance 32-bit processor with a running frequency of up to 170MHz, which has strong computing power and faster running speed.
2. Power output components (MOSFET) using a new generation of manufacturing technology, which have low heat generation, can withstand large currents in an instant, and have high reliability.
3. Self-check function: After the ESC is powered on, it will self-check the power supply short circuit, whether the motor is missing phase, the throttle zero return problem, and the voltage range.
4. The single side opening and the unique air suction duct design greatly enhance the heat dissipation performance of the ESC. 5. Has two flight modes: fixed-wing mode and helicopter mode.
6. It has helicopter speed control function, the speed control sensitivity is adjustable and easy to operate.
7. It has a flameout and landing regret time selection function. Within the set time, the flameout and landing process can be manually interrupted and the motor can be quickly restarted to avoid crashes due to control errors.
8. The ESC has an independent programming interface, and an LCD programming card or Bluetooth module can be used to set parameters for the ESC.
9. It has a data return function that can send data in real time: current, voltage, temperature, speed, throttle, ESC status. The above data can be viewed in real time on the mobile app or LCD programming card.
10. Supports Bluetooth wireless parameter adjustment. You can set parameters, upgrade ESC software, view data records and other operations through mobile phone (Apple & Android) APP.
11. Multiple protections: power-on voltage abnormality protection, startup protection, temperature protection, throttle signal loss protection, overload protection, low voltage protection, overcurrent protection.
Package Included:

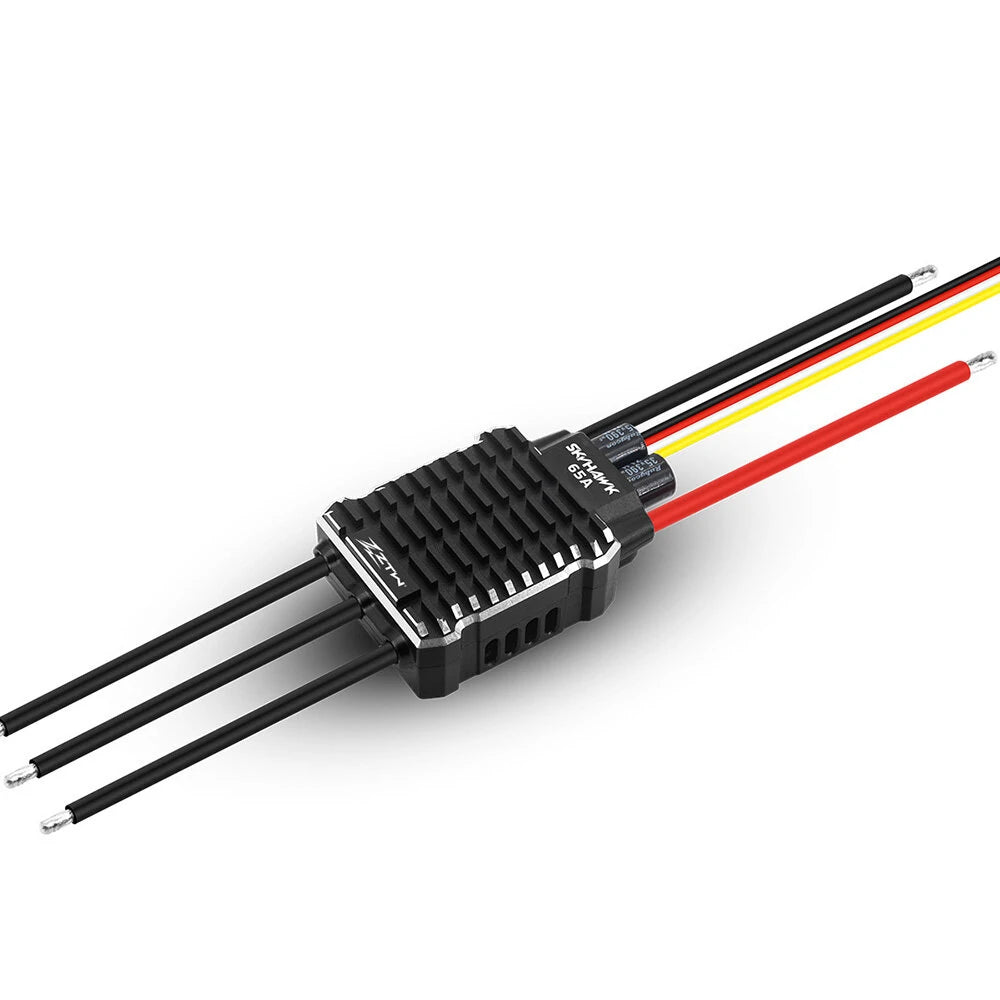

1x ZTW Skyhawks 65A 6S ESC
